Excellent sound in your living room or on your desktop, A compact integrated amplifier with Bluetooth®. receiver

The AI-301DA-X is a successor to the AI-301DA, offering a newly refined audio performance tuned in Europe.

In order to update the sound quality to meet today’s requirement for Hi-Res sound, our engineers have carried out an exhaustive development programme, using selected parts ranges exclusively specified for hi-fi applications.

Supporting DSD128 and PCM192/32 input from PC/Mac, an improved analogue audio circuit delivers excellent sound quality, while a built-in Bluetooth®. receiver supports the Qualcomm® aptX™. codec, allowing you to enjoy high quality wireless audio streaming from a PC or tablet.

In addition, the AI-310DA-X’s subwoofer pre-out and auto-power on/off functions allow you to create a compact 2.1ch home theater system which can be set to automatically power up when your TV set is turned on.

Rich and engaging sound quality, refined in Europe
The previous AI-301DA sounded excellent but our engineers have gone even further with AI-301DA-X, listening, tuning and refining the audio quality over an extended period of time, the final tuning being carried out in Europe. The results of those efforts can be heard in the rich, musical character and considerable dynamic ability of this latest version.

High performance power amplifier from ICEpower
The beating heart of the AI-301DA-X is a high performance, energy efficient power amplifier module from ICEpower of Denmark. Thanks to its intelligent energy management technology, the AI-301DA-X can deliver as much as 60W + 60W of output power.

Robust aluminum body and small footprint

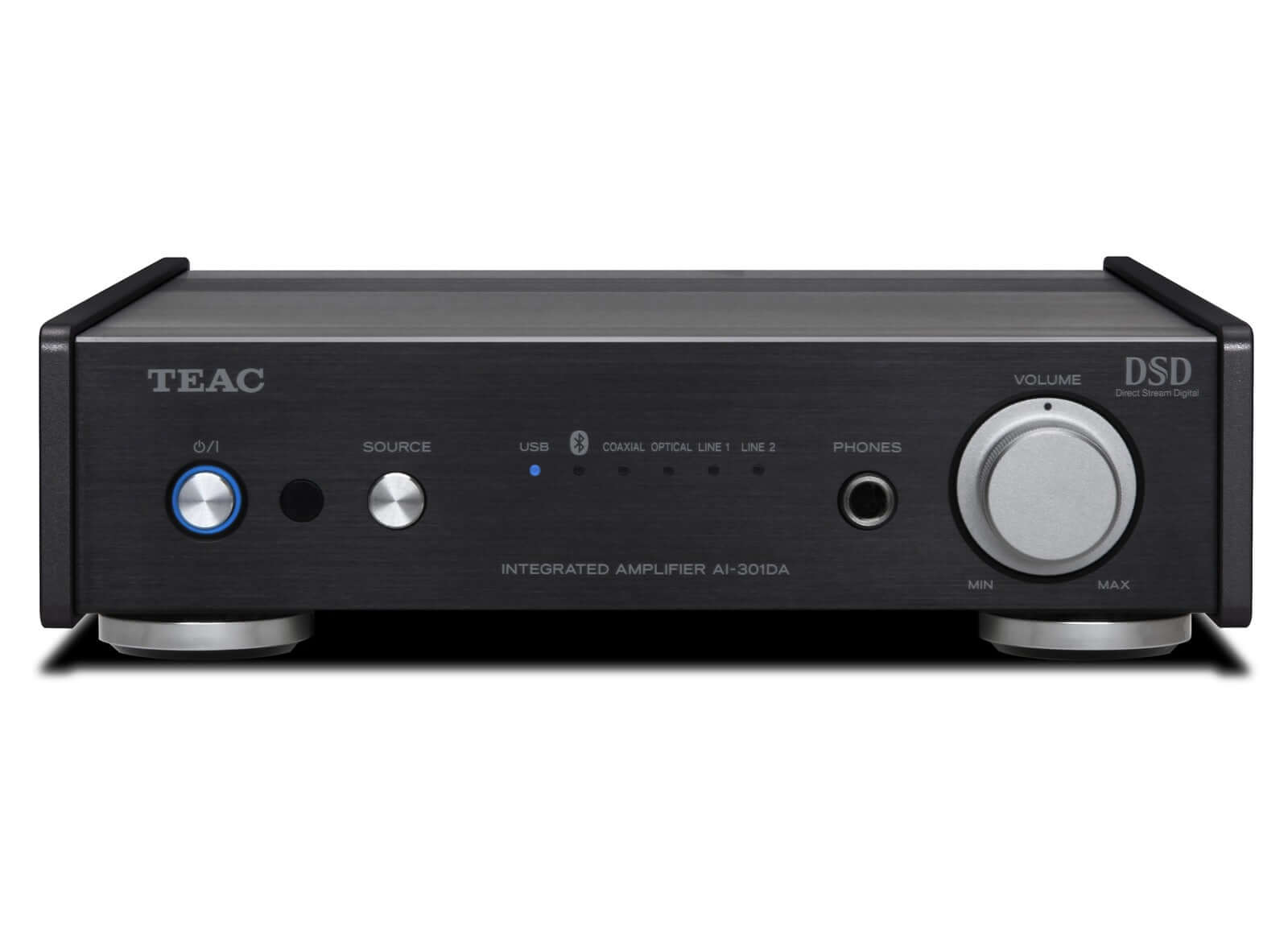

A sleek and compact body with a small footprint (215mm width, 254mm depth and 61mm height) allows you to place the AI-301DA-X in very small spaces, such as in a tiny gap in a TV stand or on a desktop. A beautifully machined aluminum volume knob and panels give it an innate feeling of elegance, while full-metal body construction achieves excellent vibration suppression, to minimise any adverse effects on sound quality.

Built-in Bluetooth®. receiver for wireless streaming
The AI-301DA-X features a built-in Bluetooth®. receiver module supporting the Qualcomm® aptX™. codec for high quality wireless audio streaming. Qualcomm® aptX™. achieves low-latency and excellent error recovery, resulting in superb sound, qualities which have made this codec an industry-standard for wireless streaming. And, for the benefit of those streaming from an iPhone/iPad, the high-performance AAC codec is also supported.

Automatically powers up on detecting a digital signal
The AI-301DA-X automatically turns on when an incoming digital audio signal is detected, and automatically turns off when the signal is switched off. This allows you to, for instance, switch on the AI-301DA-X merely by powering up your TV set, ensuring you can enjoy enhanced TV audio with the minimum of fuss.

32-bit BurrBrown PCM1795 D/A converter
In order to process the huge amounts of digital audio data present in DSD128 and PCM 192kHz/32 content, a high-performance BurrBrown PCM 1795 D/A converter is employed. Its 32-bit processing conveys fine detail and a depth of sound from Hi-Res files that’s far beyond what you can hear from standard audio CD.

Supports DSD128 native playback
The AI-301DA-X is equipped with a USB port supporting DSD Native playback. This directly converts DSD signal into an analogue waveform in ASIO2.1 and DoP formats, without changing the PCM format. In addition, asynchronous transfer mode is also supported for accurate data transfer by referencing the more accurate on-board clock of the AI-301DA-X. Furthermore, a free TEAC HR Audio Player allows users to play back, Hi-Res files such as DSD128 and PCM192/32 from Windows/Mac without the need for complicated configuration.

High quality 100mW + 100mW headphone output stage
The AI-301DA-X integrates TEAC’s CCLC (Coupling Capacitor-less Circuit) into its onboard headphone amplifier, an innovation that that delivers rich bass sound and quick transient response, by eliminating capacitors in the output stage, while delivering 100mW + 100mW of output power (32ohm load).

Conventional coaxial and optical digital inputs
In addition to a USB audio input, conventional S/PDIF inputs are also provided, the coaxial digital input supporting signals up to 192kHz/24-bit while the optical supports up to 96kHz/24-bit.

Subwoofer pre-out for 2.1 system
A subwoofer pre-out on the AI-301DA-X allows you to connect a powered subwoofer for extra bass sound in a 2.1ch system, especially useful for TV sound enhancement.

Specs

Supported formats
USB audio input
DSD DSD128 (5.6MHz), DSD64 (2.8MHz)
PCM 16/24/32-bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
Coaxial digital input
PCM 16/24-bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
Optical digital input
PCM 16/24-bit
32k / 44.1k / 48k / 88.2k / 96kHz
DAC section
DAC BurrBrown PCM1795
Bluetooth® Section
Bluetooth® version V2.1 + EDR
Output Class 2
Supported Codec aptX™, AAC, SBC
Supported profile A2DP, AVRCP

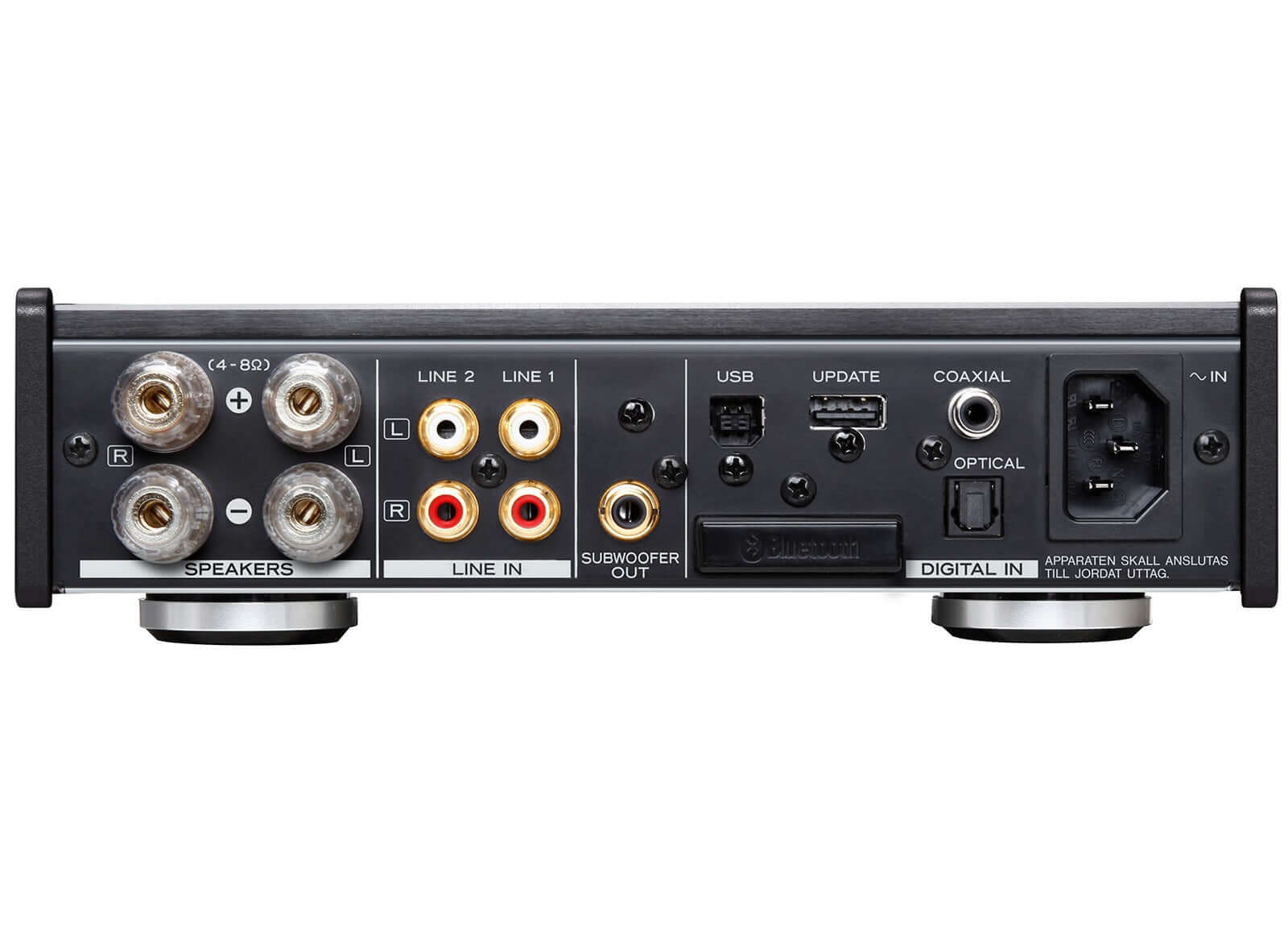

Audio inputs
USB
Connector USB B-type × 1
USB version USB2.0
Transfer mode Asynchronous transfer mode
Recommended software TEAC HR Audio Player (Mac, Windows)
Coaxial digital audio
Connector RCA Pin × 1
Input impedance 75 Ω
Input level 0.5Vp-p
Optical digital audio
Connector TOS-link × 1
Input level –24 to –14.5dBm peak
Analog LINE audio
Connector RCA Pin × 2 pairs
Audio outputs
Subwoofer Pre-out
Connector RCA Pin × 1
Speaker output RCA Pin × 1 set
Maximum output power 60W + 60W (4 ohms, 20Hz to 20kHz, JEITA)
30W + 30W (8 ohms, 20Hz to 20kHz, JEITA)
Rated Output 43W + 43W (4 ohms, 20Hz to 20kHz, THD 0.1%, JEITA)
22W + 22W (8 ohms, 20Hz to 20kHz, THD 0.1%, JEITA)
Supported speaker impedance 4Ω to 8Ω
Headphone output
Connector 1/4" (6.3mm) stereo headphone × 1
Maximum output power 100mW + 100mW (32Ω loaded, THD 0.1%)
Total harmonic distortion 0.005%
Power AC 230V, 50Hz (UK/Europe)
Power consumption 38W
Overall dimensions 8.5" × 2.4" × 10" / 215 × 61 × 254mm (W×H×D)
Weight 4.6 lbs. / 2.1kg
Accessories Power cord, Remote control (RC-1313), AAA batteries × 2, User Manual (including Warranty)

Audio performance
Frequency response 2Hz to 100kHz (–5dB)
Signal-to-Noise ratio 95dB (LINE Input, IHF-A/LPF 20kHz 1kHz 2V Input)
Total harmonic distortion 0.01% (1kHz, 8 ohms, 1W)
