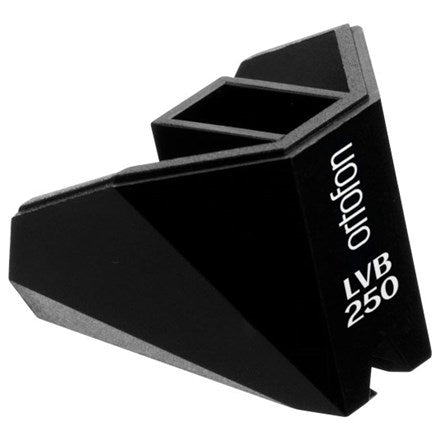

2M Black LVB 250 stylus
Frequency response - 20-20.000 Hz + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 22 µm/mN
Stylus type - Nude Shibata on Boron cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 1.4-1.7 g (14-17 mN)
Tracking force, recommended - 1.5 g (15 mN)
Tracking angle - 20°
Stylus color - Black
*) Typical value
Recommended for following cartridges - 2M Black LVB 250, interchangeable with 2M Bronze and 2M Black.
