Martin Logan ML-66i Installer Series In-Wall Speaker (Each)

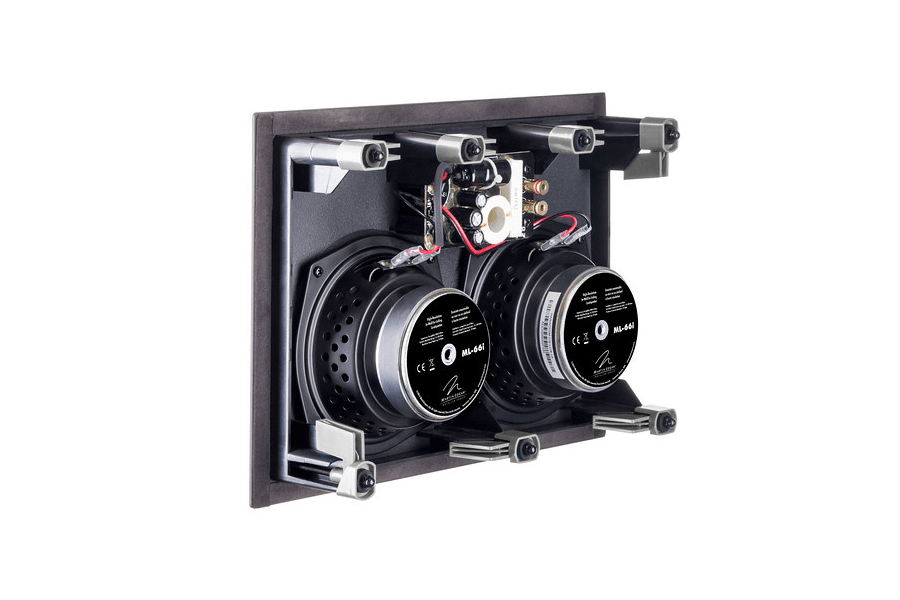

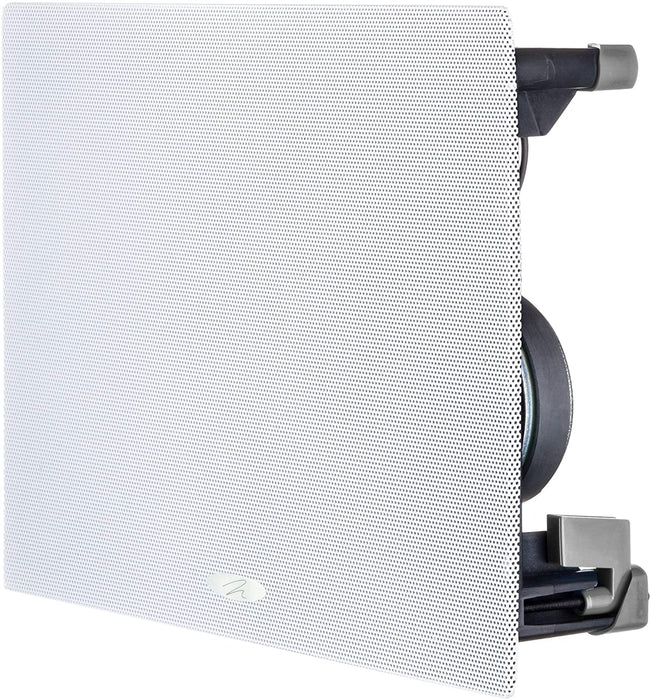

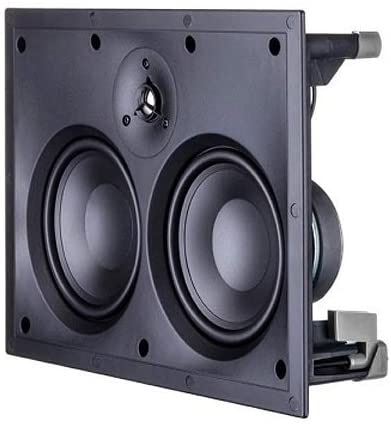

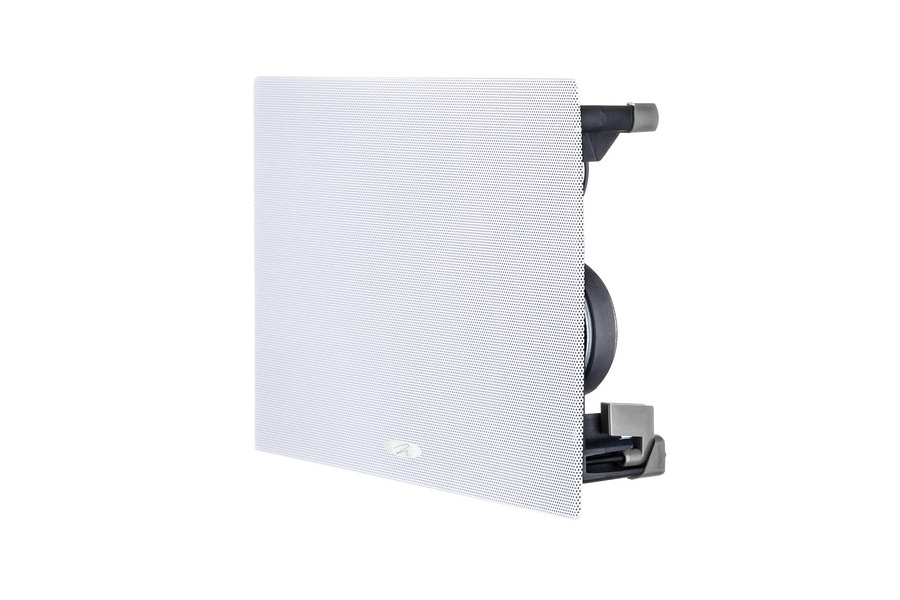

Titanium dome tweeters and mineral-filled polypropylene drivers ensure great performance, while bezel-free paintable grilles that are secured with high-strength magnets provide an aesthetic that blends invisibly into any room. Each model comes with an extremely robust mounting-lock system that couples with the speaker’s vibration-resistant ABS chassis when installed.
Affordable High-Performance SolutionsThe Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.
Specs
Frequency Response 75–20,000 Hz ±3dB
Recommended Amplifier Power 20—140 watts per channel
Sensitivity 89 dB/2.83 volts/meter
Impedance 8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 2500 Hz
High Frequency Transducer 3/4" (2.5cm) titanium dome
Low Frequency Transducer Two 5.5” (14cm) mineral-filled polypropylene cones
Inputs Spring clip accommodates wire up to 12AWG
Weight 5.9 lbs. (2.7 kg)
Dimensions (overall size) 9.3" x 12.7" x 3.4 " (23.7cm x 32.3cm x 8.6cm)
Cut-Out Dimensions 11.625" x 8.25" (29.5 cm x 20.9 cm)
Projection From Wall Surface 0.2" (0.5cm)
Depth Behind Wall Surface 3.2" (8.1 cm)
