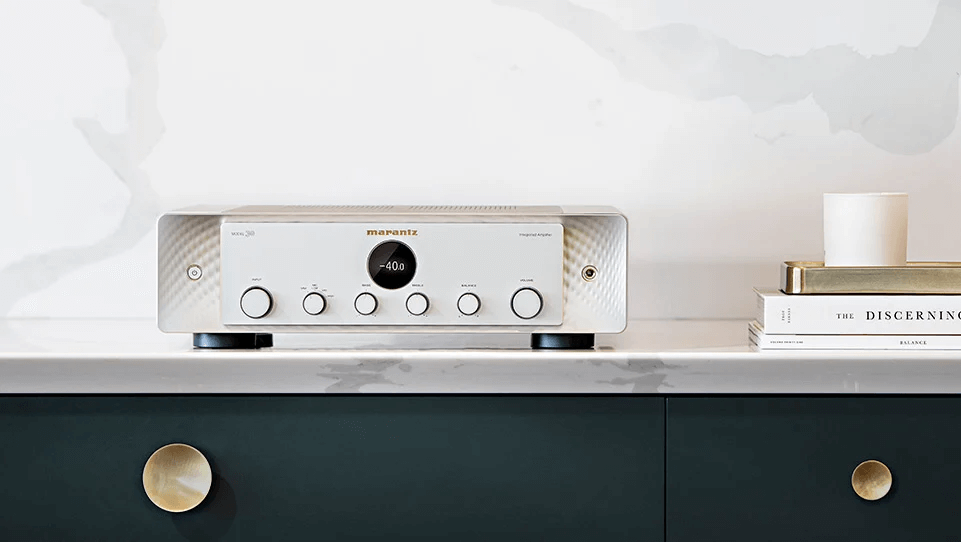

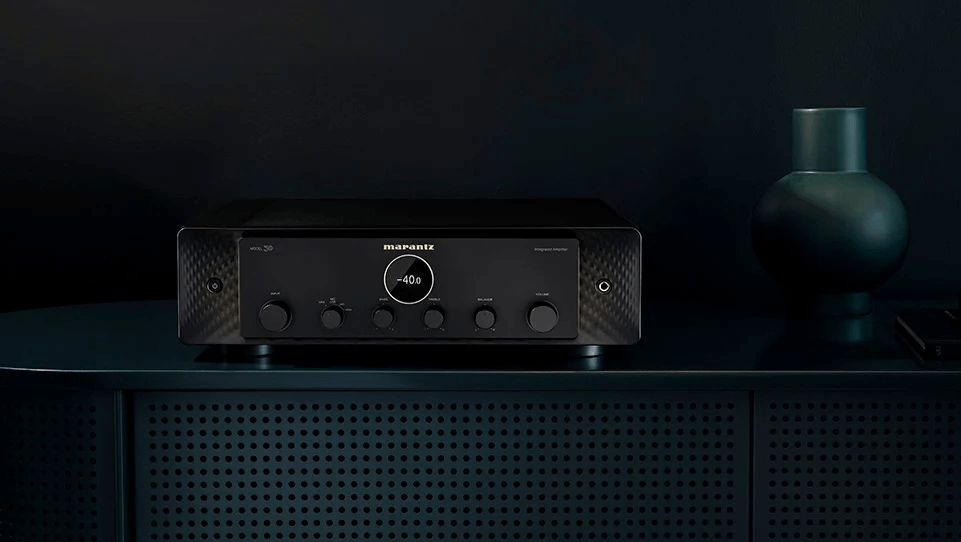

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make allyour music unforgettable.
Tuned with passion
Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
Designed to last
You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
Fully discrete and accurate detailing
Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
Extraordinary sensitivity
Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.
Exquisite sound tuning
MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.
The most musical, accurate, detailed sound
MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM.
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path vital given the delicate nature of phono signals the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.
MC / MM phono input impedance selector
In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector.
Built for Generations
Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.
More Than 65 Years of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world.
Features:
Custom-built preamplifier with Marantz HDAM technology
Tuned with passion by the Marantz Sound Master
Output: 100W + 100W (8ohm), 200W + 200W (4ohm)
Fully-discrete design for signal purity
Custom HDAM -SA3 circuitry for clean, optimal dynamics
Separate amp and preamp power supplies reduce interference
Toroidal transformer dedicated to preamp for clarity and power
Current feedback preamp design with its wide-range circuitry
MM/MC Phono input with its Premium Phono EQ circuit
Brass machined input terminals for CD and Phono
Marantz original high-quality/high-purity copper speaker terminals
Linear volume control with new electric volume system
Amplifier design inherited from our flagship models
Available in Black and Silver Gold
Output Power
Rated Output Power 100W + 100W (8ohm)200W + 200W (4ohm)
Features
Amplifier Circuit Switching Amplifier
Power Transformer Toroidal w/ case
Volume Electric
Bass / Treble / Mid / Balance Control yes / yes / - / yes
Source Direct yes
Wide Range 5Hz - 50kHz
Total Harmonic distortion 0.005% (1kHz, 8 )
Damping Factor 500
Input Sensitivity: Phono input MM: 2.3 mV / 39 kohmMC: 250 V / 100 ohm
Input Sensitivity: CD/LINE/RECORDER220 mV / 13 kohm
Input Sensitivity: Power Amplifier input 1.1 V / 13 kohm
SN Ratio PHONO (MM): 88dB PHONO (MC): 75dB CD: 107dB
Terminal
Phono Input yes (MM/MC) Marantz Musical Premium Phono EQ
Ext. Pre Input (Power Amp Direct) yes
Preout yes
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 /RECORDER) * [PHONO] and [CD] inputs = high grade terminals
Speaker Terminal Marantz Original SPKT-100+
Remote Control Bus Terminal yes (Cinch)
UI
Display yes (Porthole, OLED)
Control
App Control via Network Player yes
System Remote Controller yes(New system remote controller to control SACD 30 and MODEL 30
Other
Unit (W x H x D mm) 443 x 130 x 432
Packaging Dimensions (W x H x D mm) 534 x 255 x 522
Net weight 14.8kg
Packaging gross weight 17.6kg
Unit (W x H x D in inches) 17.4" x 5.1" x 17
Packaging Dimensions (W x H x D in inches) 20 x 10.1 x 20.6
Weight 32 lbs 3 Oz
Packaging Weight 37 lbs 8 Oz
Power Consumption at Standby 130W0.2W
AC Inlet yes
Quick Start Guide Paper
Cosmetic
Panel Color SG / BK
Front Center Panel Aluminum
Side cover Aluminum
Top cover Steel
Edge-lighting yes (Dimmer)
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ REC Out Sel knobs REC Out-->PHONO (Aluminum)
Power button Aluminum
Side screw Copper plated
Chassis Material SECC
Chassis Layer Triple
Foot New (PM6006 type)
UPC
USA MODEL30/U1B 699927170059 Black
USAMODEL30/U1SG 699927170158 Silver Gold
