Marantz AMP 10 Reference 16 Channel Power Amplifier
REFERENCE 16-CHANNEL 200-WATT-PER-CHANNEL AMPLIFIERReference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
Peerless PerformanceImmersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology LeaderAMP 10 is engineered using best-in-class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

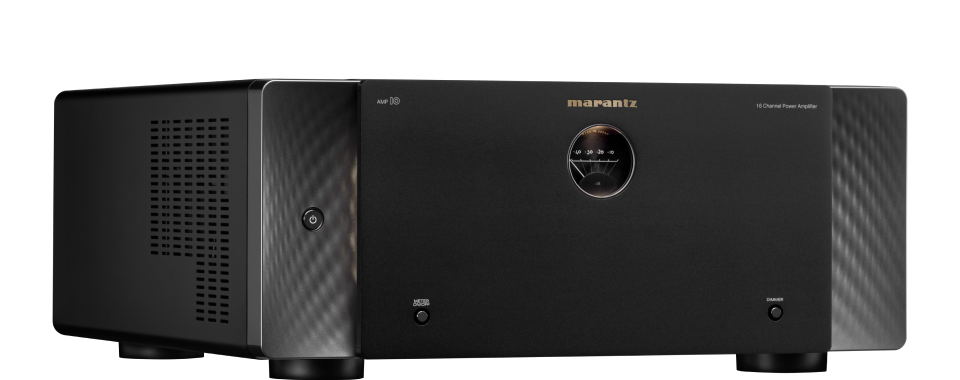

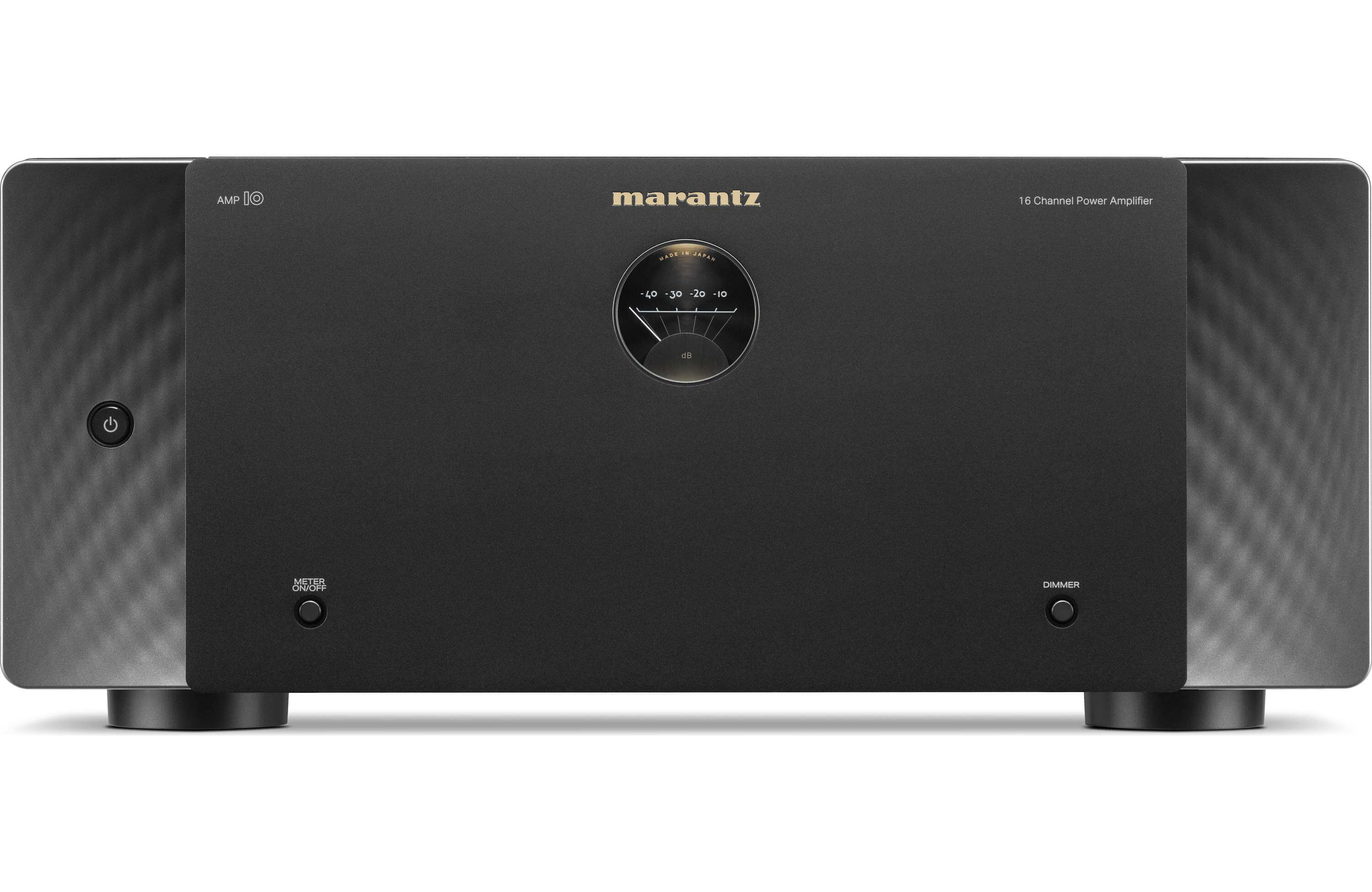

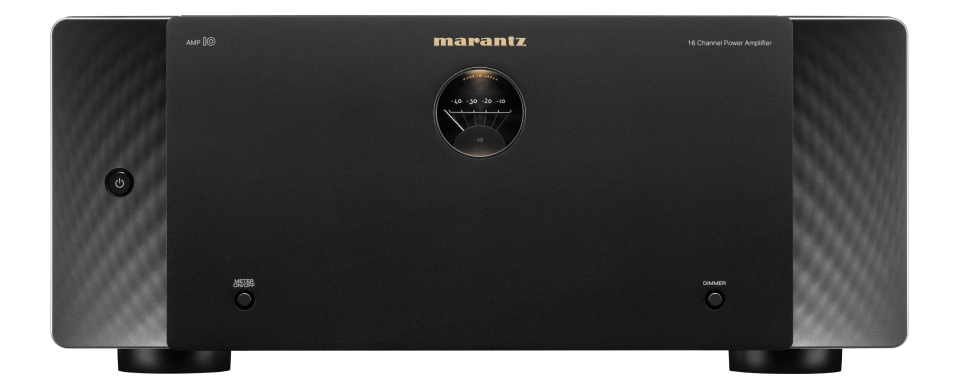

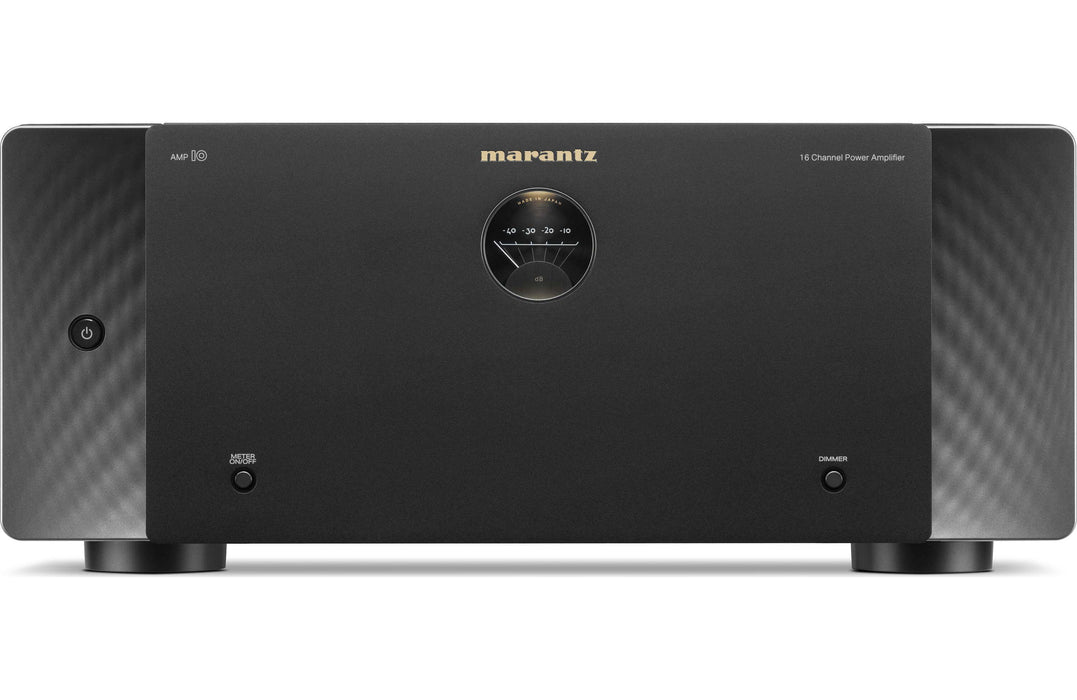

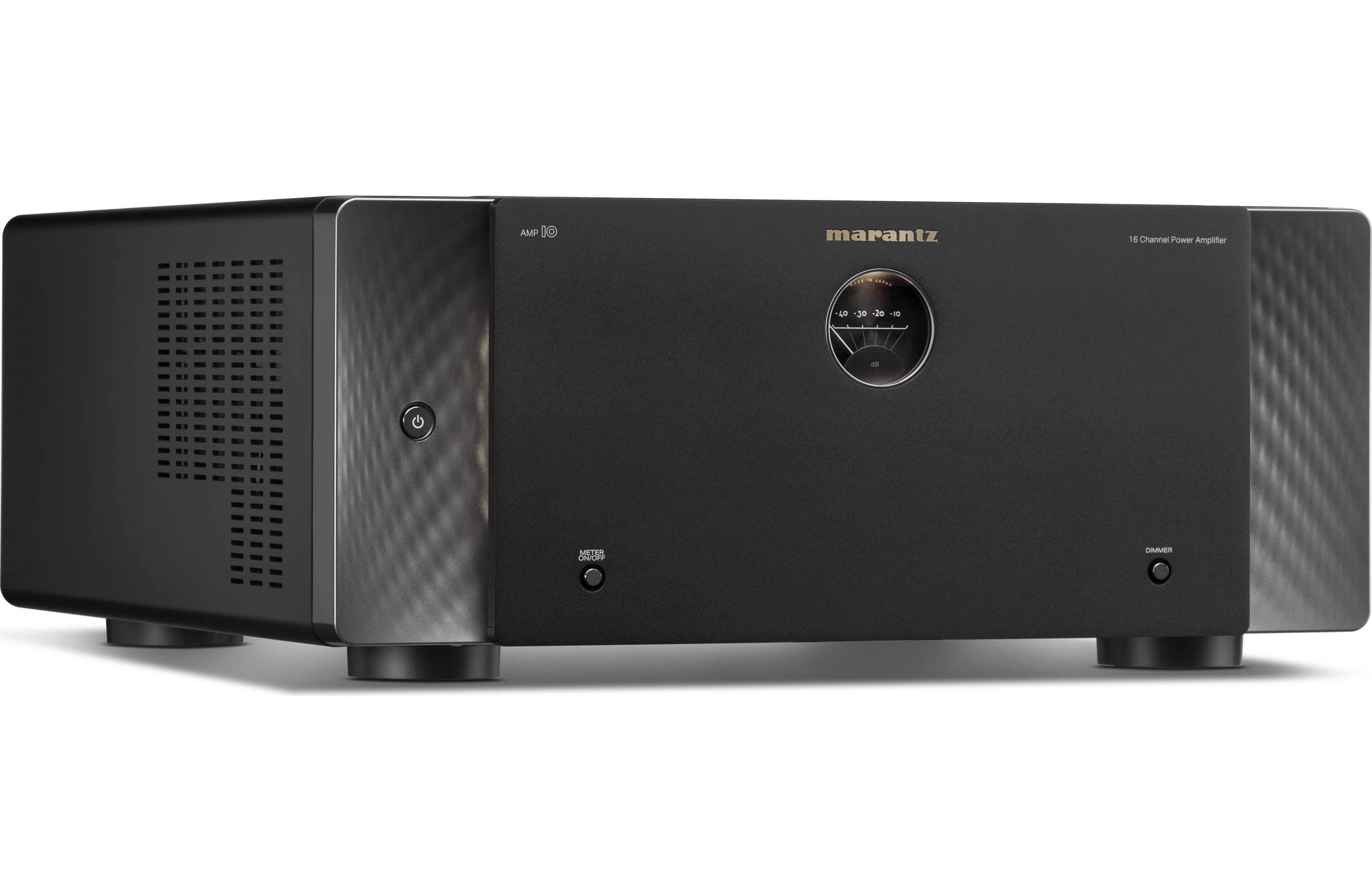

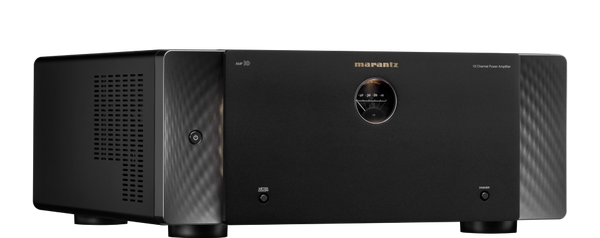

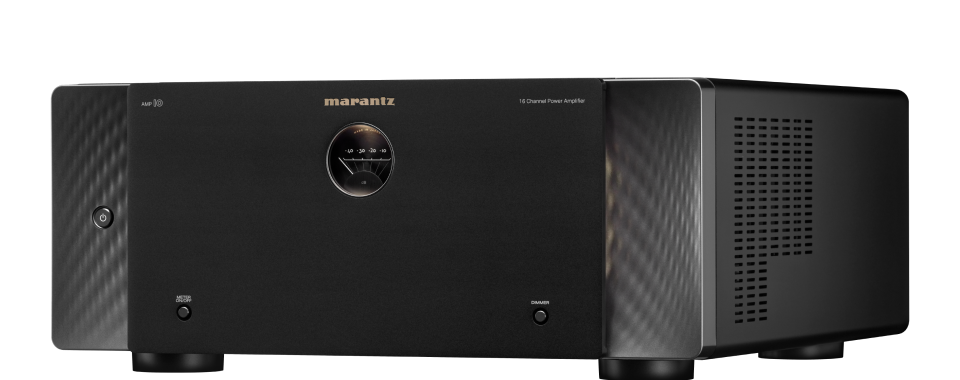

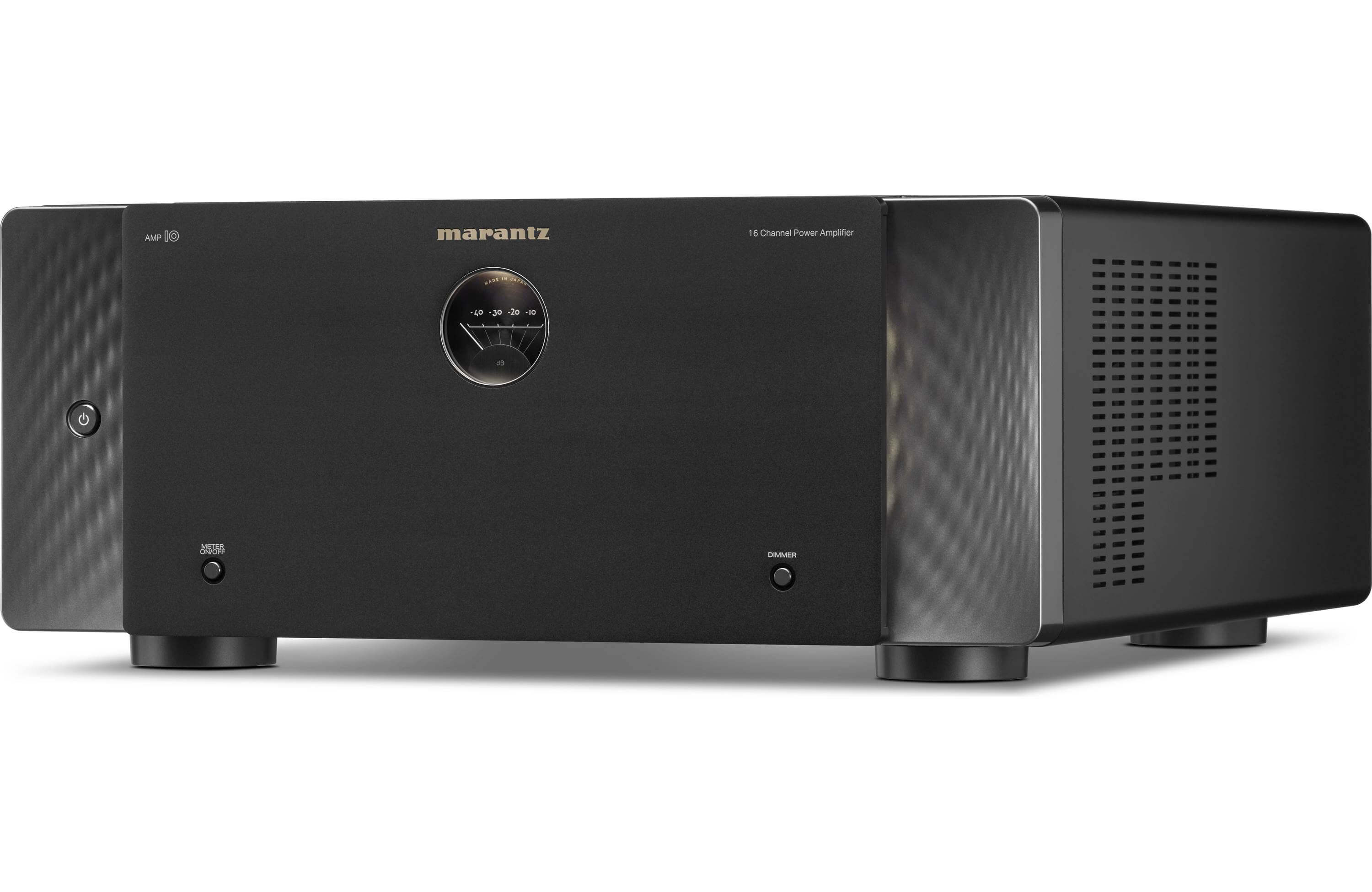

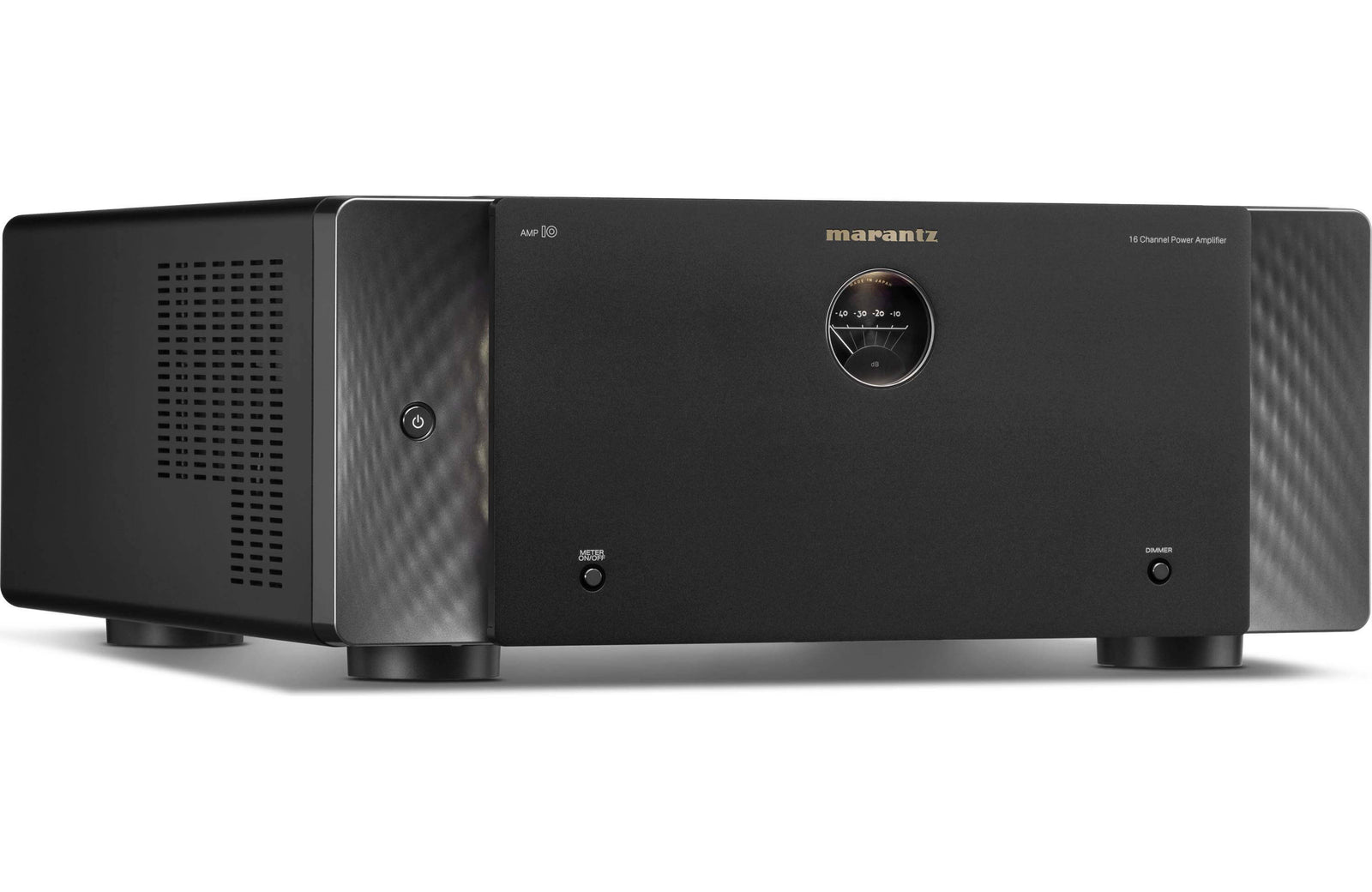

Exquisite DesignA modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

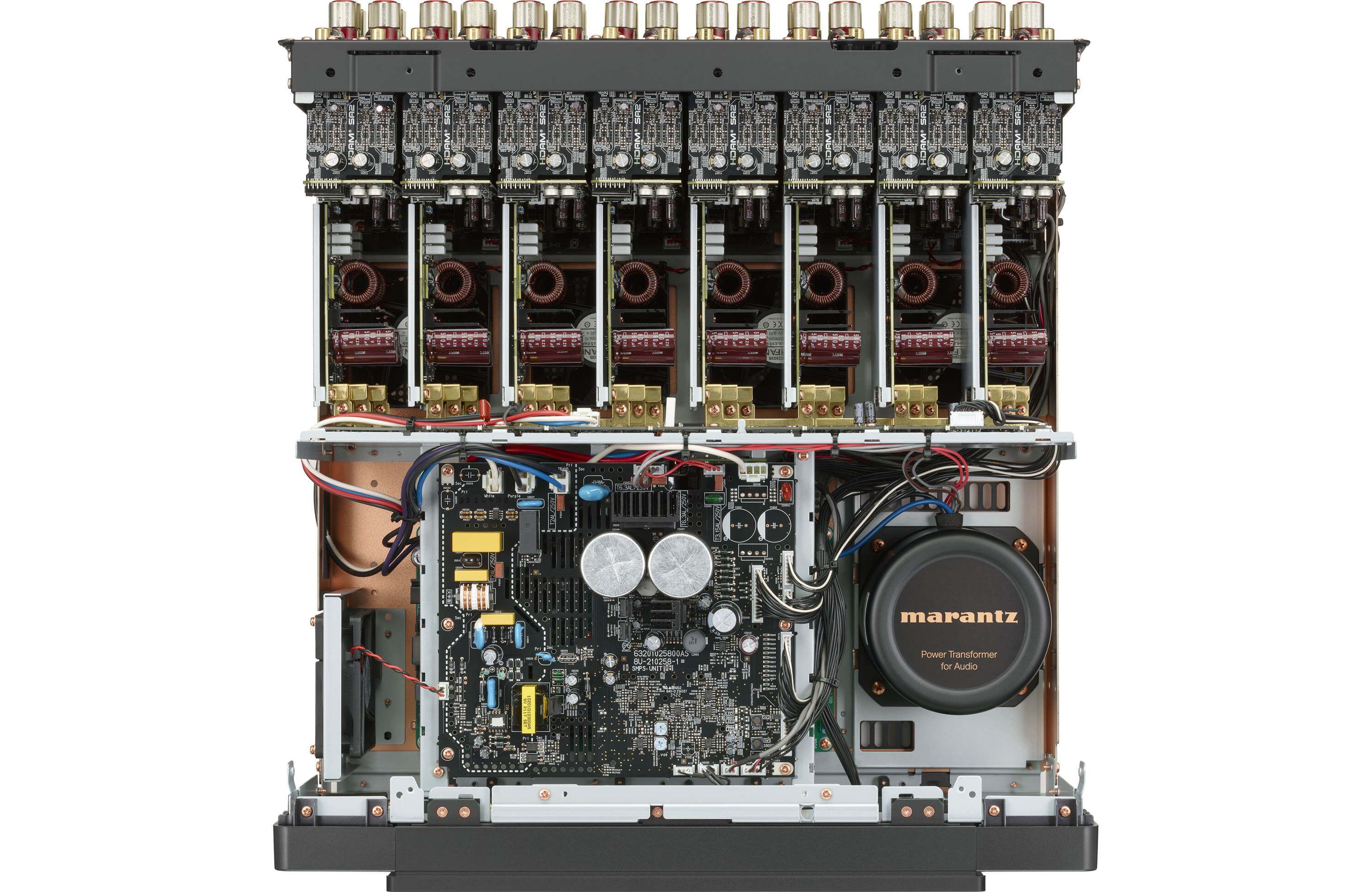

Ultimate PerformanceWe developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
StyleExcellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
CustomizabilityThoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.
PowerfulAMP 10 gives you 16 channels of commanding power, deftly nuanced.
Specs
Multi-Room / CI
IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1
Others
Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / No
Auto Power off Yes

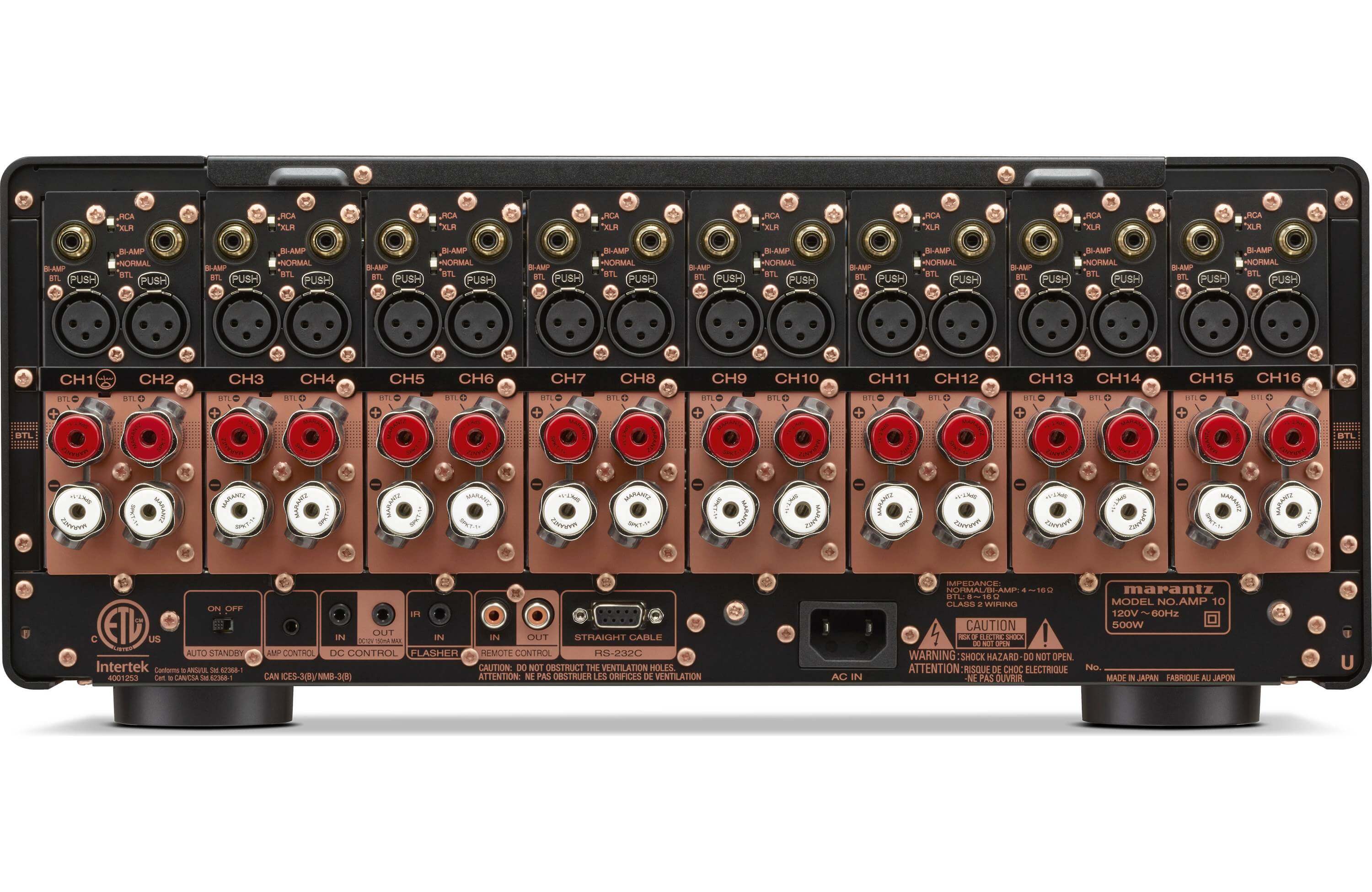

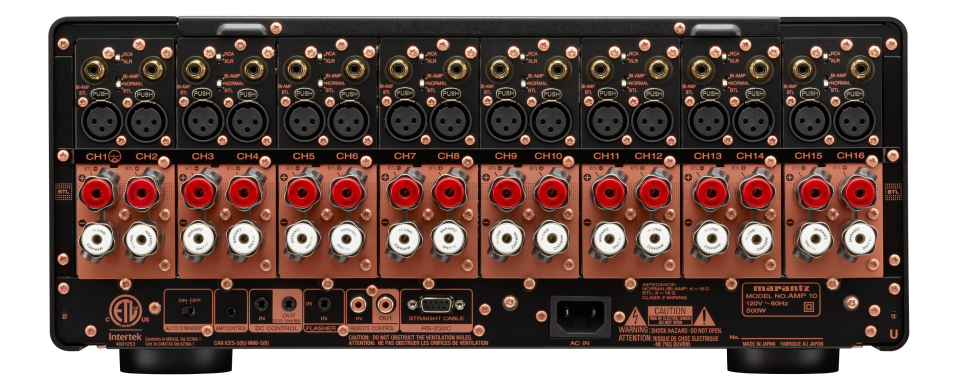

Inputs/Outputs
Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 16
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated
Specifications
Number of power amps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) Yes
100% Guarantee(Normal/Bi-Amp) Yes
General
Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound in W 140W
Standby Consumption in W 0.2
Maximum Dimensions 【 17.4 x 19.2 x 7.4 】
Weight in lbs. 43.7
What's in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
UPC code 747192137519
