THE HEART OF YOUR SYSTEM
With analogue and digital inputs, LUMIN P1 becomes your new audio hub
WHY LUMIN P1
Our most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system.
Use as a streamer, a DAC, a pre-amplifier or all three!
LUMIN P1 makes system integration easier than ever:
Specified for exceptional musical performance:

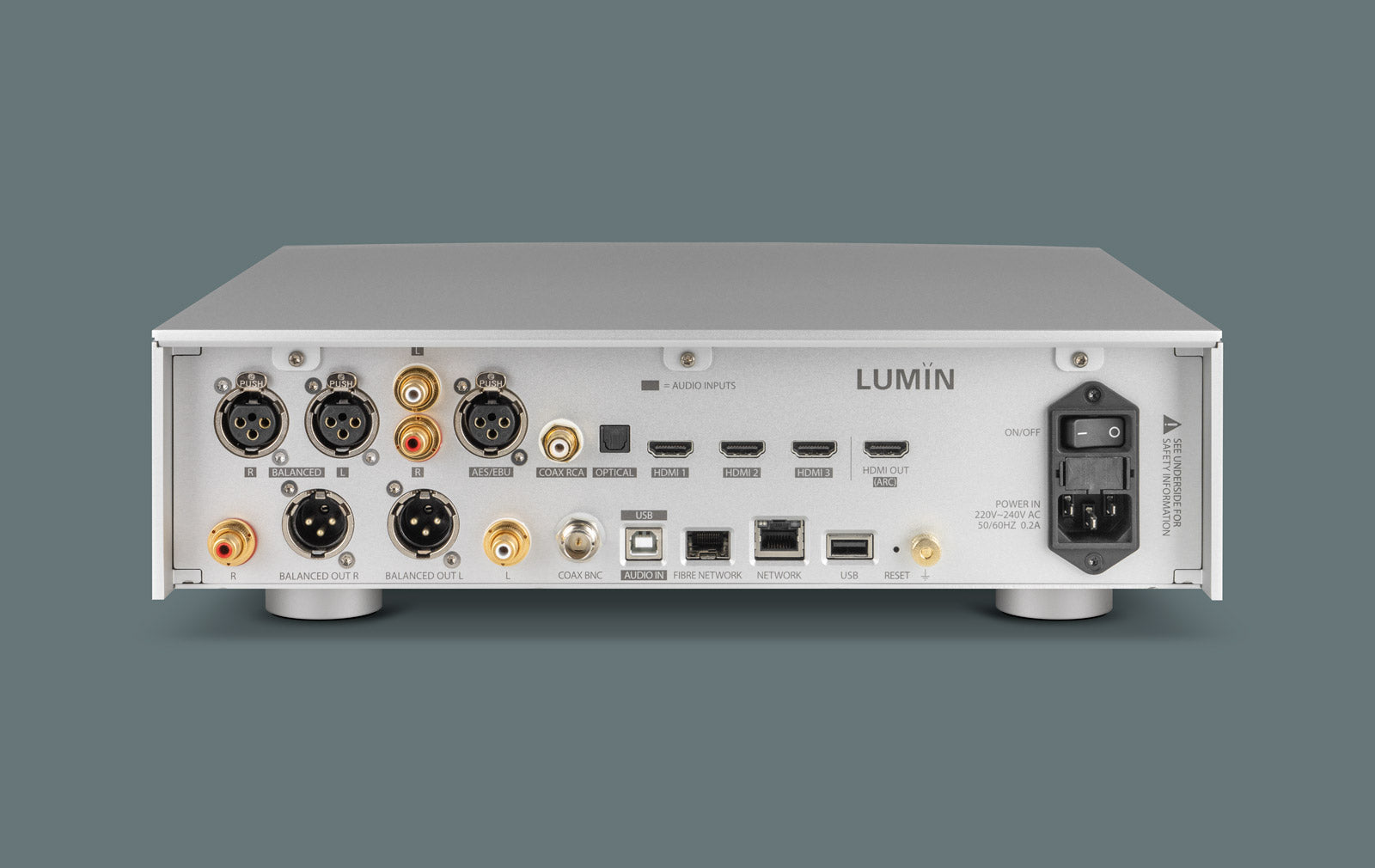

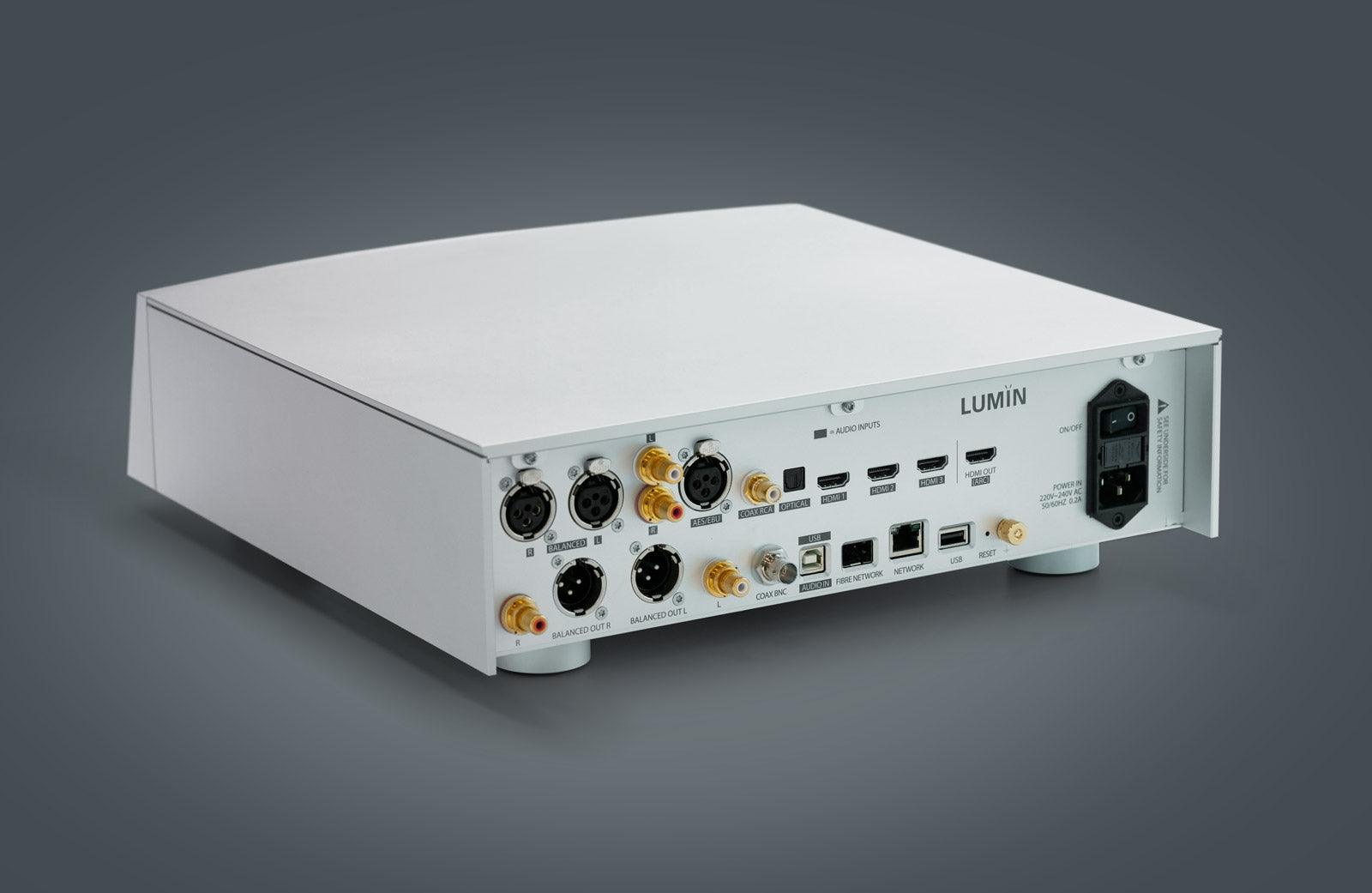

New to LUMIN P1, 9 inputs provide enough flexibility for any audio or video stereo system:
X1 Heritage
LUMIN P1 takes many flagship features from the outstanding LUMIN X1:
FIBRE NETWORKING
Immensely popular on X1, optical networking provides complete isolation from network noise. Additionally, dual network ports mean that you can connect LUMIN L1 or a NAS directly to P1.
FEMTO CLOCKING SYSTEM
P1 includes dual Femto crystal oscillators and our proprietary FPGA clock distribution system first debuted in X1.
OUTPUT BUFFER DESIGN
The fully balanced Dual Mono analogue output module including legendary Lundahl Output transformers has been keeping music-lovers happy since the original LUMIN A1.
DUAL-TOROIDAL POWER SUPPLY

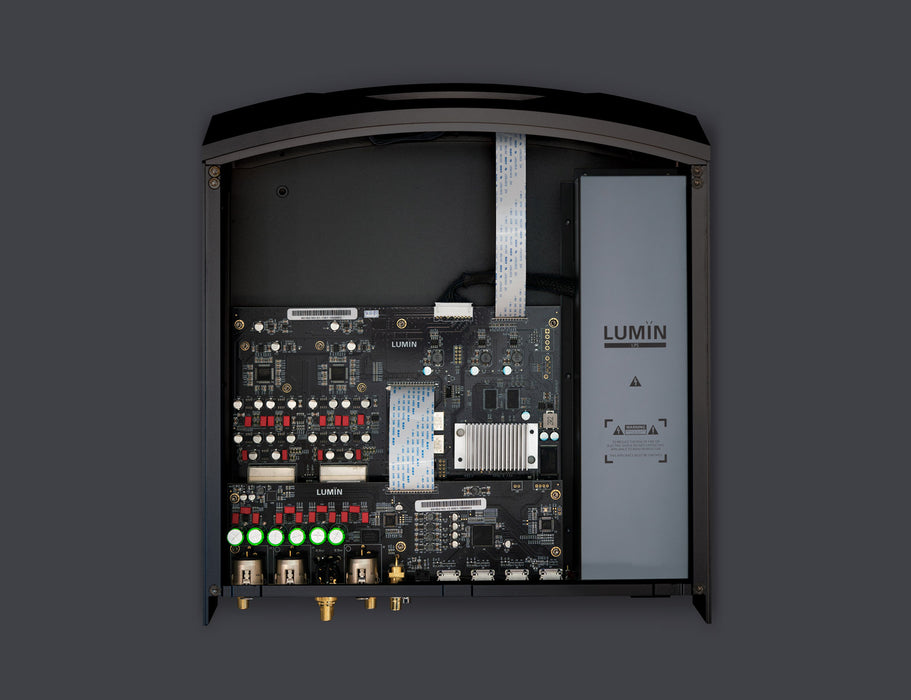

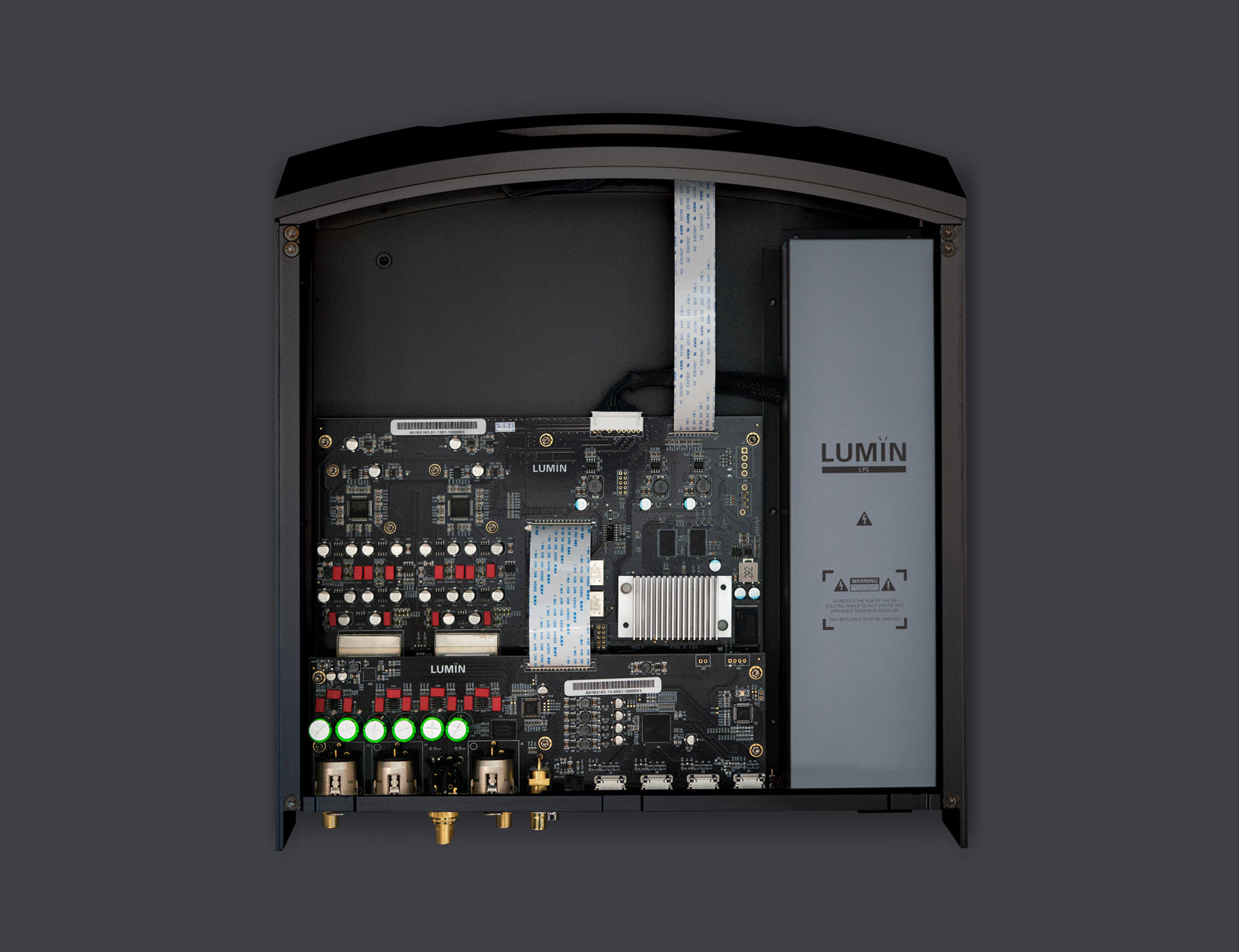

The roomy P1 chassis provides space to move the X1 toroids inboard for a cleaner installation, while retaining all the benefits of separate analogue and digital circuits.

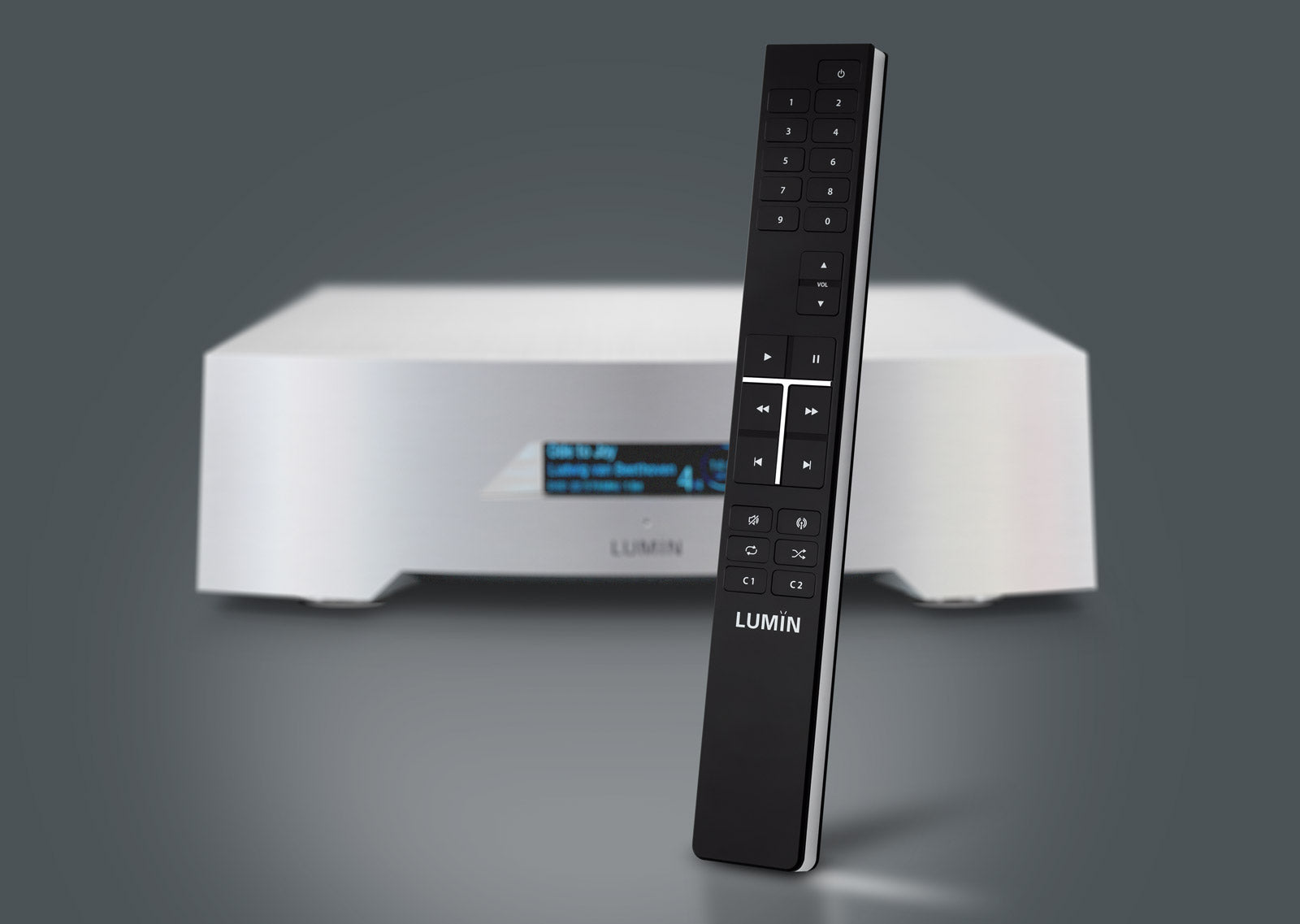

New Remote Control
A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.
The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.
The new infrared receiver built in to LUMIN P1 is compatible with universal remote controls, phones and automation systems.
Flexible setup options
Use as a streamer, a DAC, a pre-amplifier or all three!
IDEA 1 - STREAMING DAC
LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 in pure streaming ability.
IDEA 2 - HI-FI HUB
Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.
IDEA 3 - 2-CHANNEL TV SYSTEM
No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.
NETWORK PLAYBACK:
Up to DSD512
Up to 384 kHz, 16–32-bit, Stereo
MQA Full Decoding
UPSAMPLING RATES & BIT DEPTHS:
DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL INPUT:
USB:
USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1–384 kHz, 16–32-bit, Stereo
AES/OPTICAL/SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X3:
PCM 2.0 Audio support
4K Video Passthrough
DIGITAL OUTPUT:
USB:
Native DSD512 support
PCM 44.1–384 kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X1:(HDMI PASSTHROUGH AND ARC SUPPORT)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support
ANALOGUE INPUT:
RCA Unbalanced x1
XLR Balanced x1
ANALOG OUTPUT:
Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution
OPTICAL NETWORK:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
POWER SUPPLY:
Internal dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
PHYSICAL:
FINISH:
Black anodized aluminum
Raw aluminum
LUMIN (SOLID ALUMINIUM CHASSIS):
350mm (W), 380mm (D), 107mm (H), 12kg
SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS
STREAMING PROTOCOL:
UPnP AV protocol with audio streaming extension (OpenHome)
Roon Ready
Spotify Connect
Flac lossless Radio stations
AirPlay-compatible
Gapless Playback
On-Device Playlist
APP FEATURES:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution artwork
Artwork caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3, AAC (in M4A container)
MQA
INPUT:
Gigabit Ethernet Network (1000BASE-T) RJ45
Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
ANALOGUE AUDIO OUTPUTS:
XLR balanced, 6Vrms, pin 2 Hot
RCA unbalanced, 3Vrms
SUPPORTED CONTROL DEVICES:
All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
Android devices. Android 4.0 (Ice Cream Sandwich) or later required
OTHER:
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
