Bring both music and movies to life with true high fidelity.

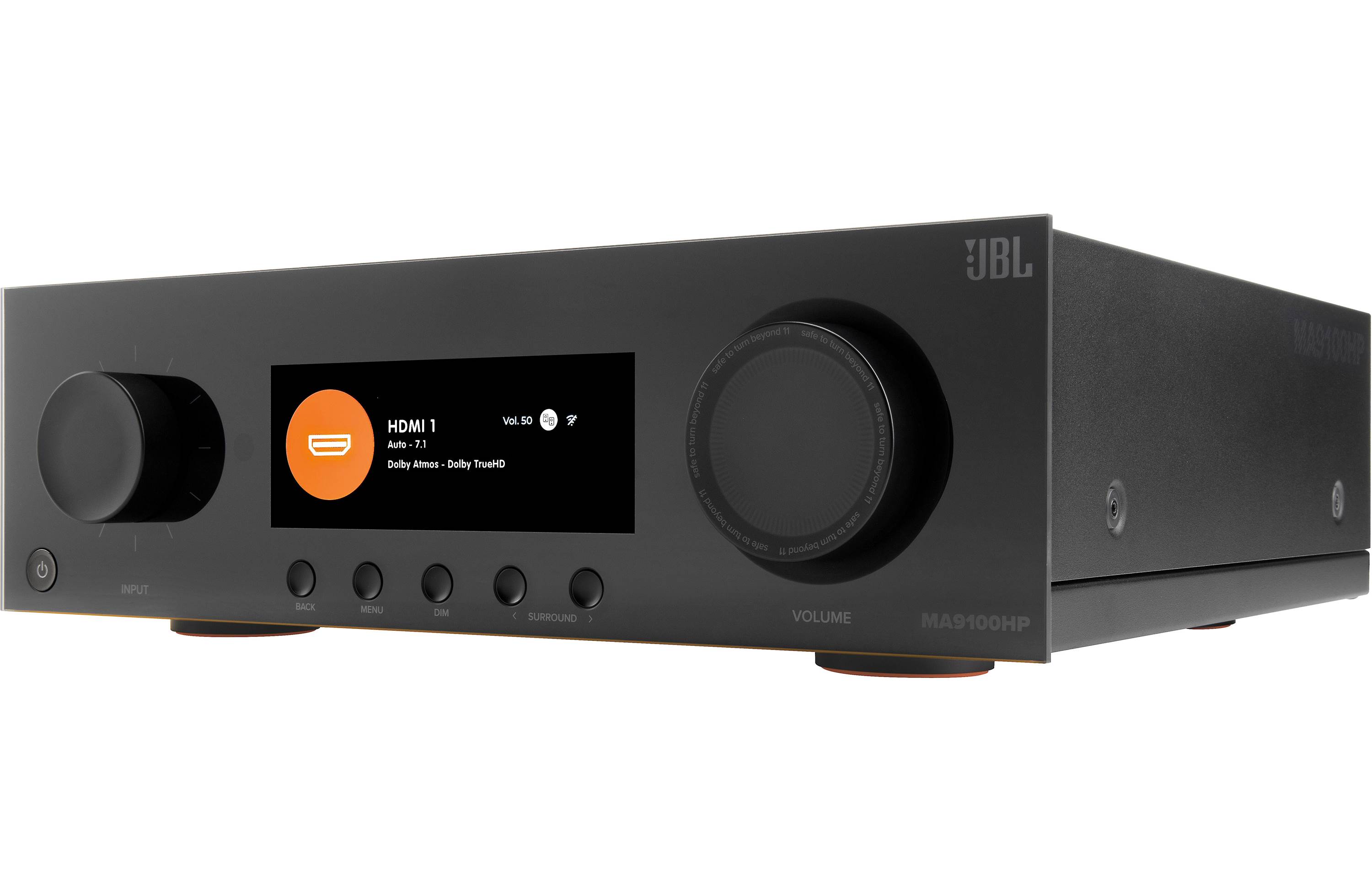

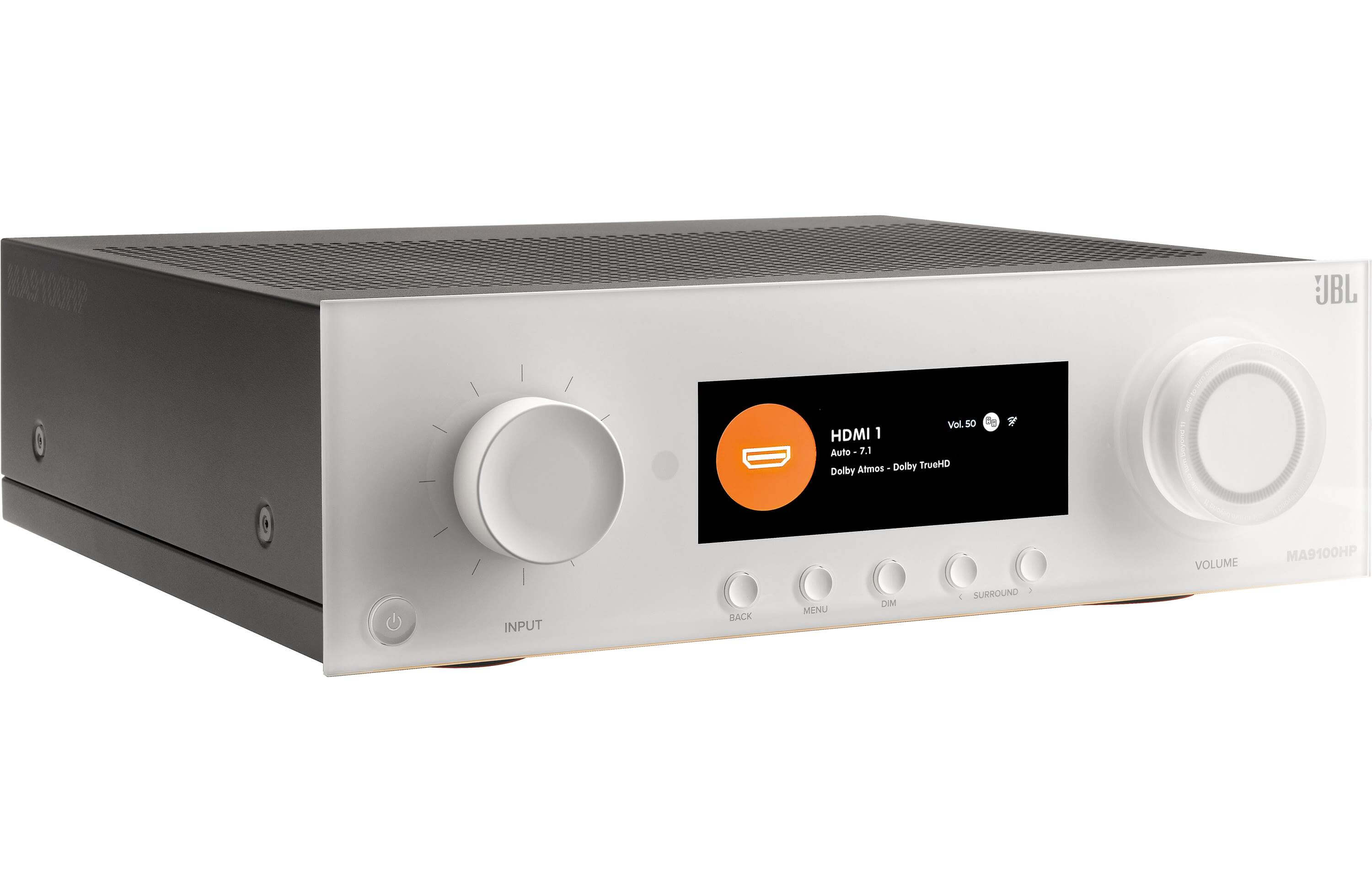

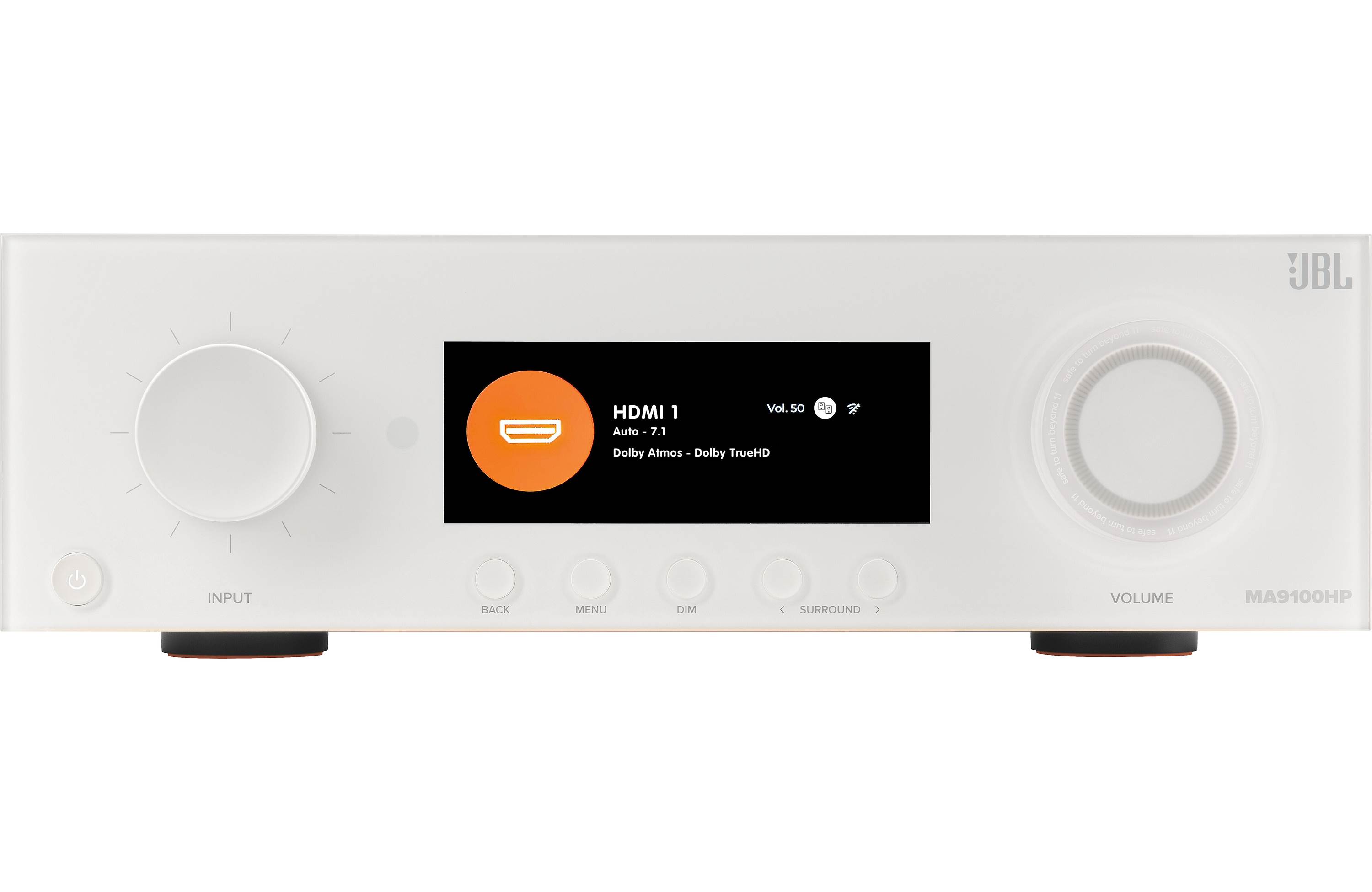

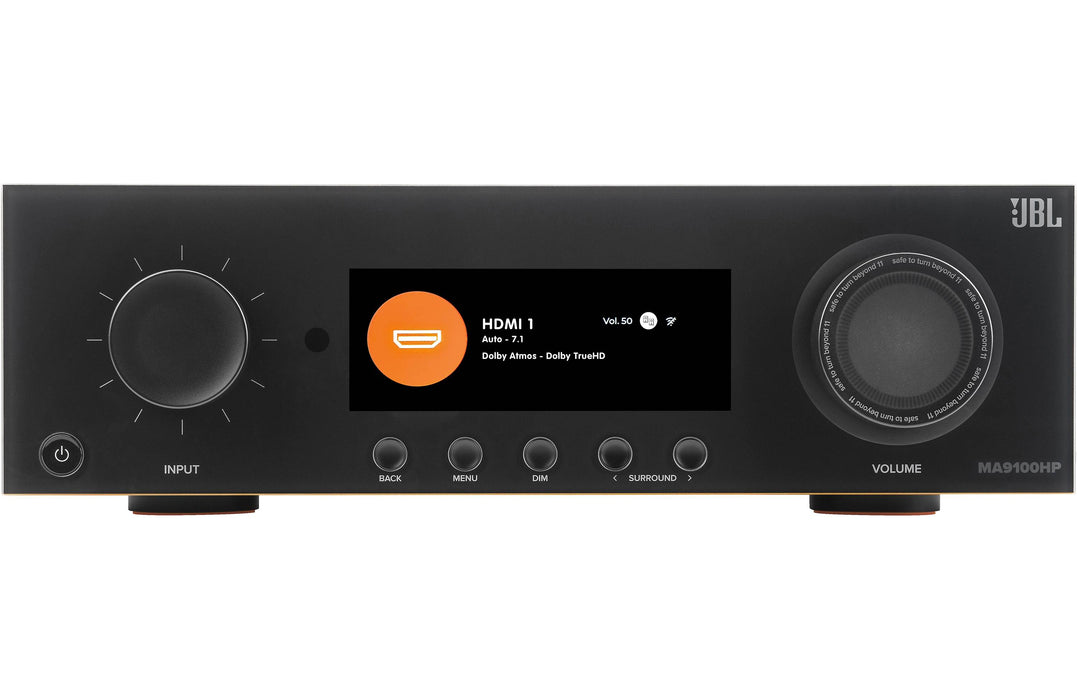

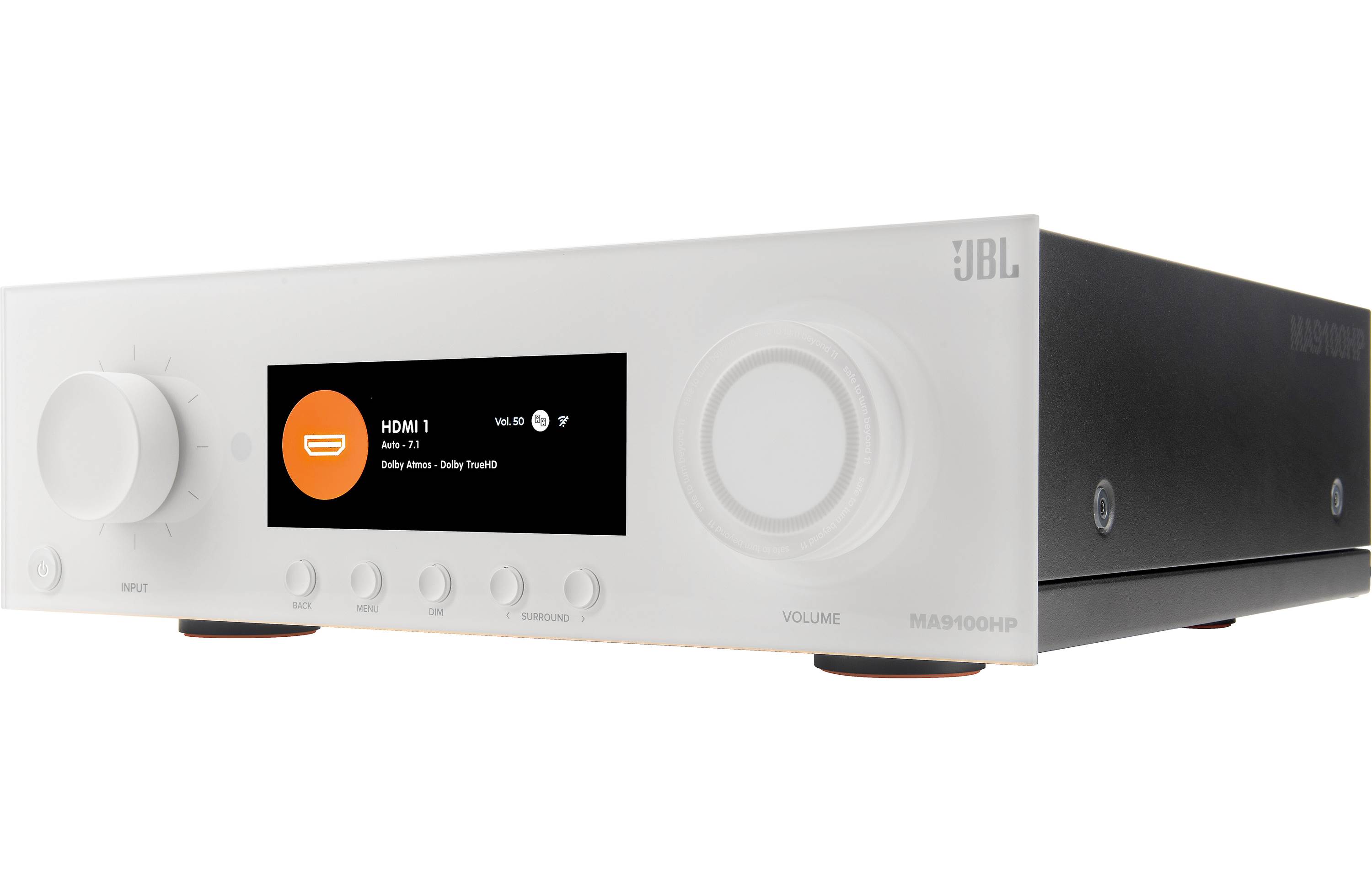

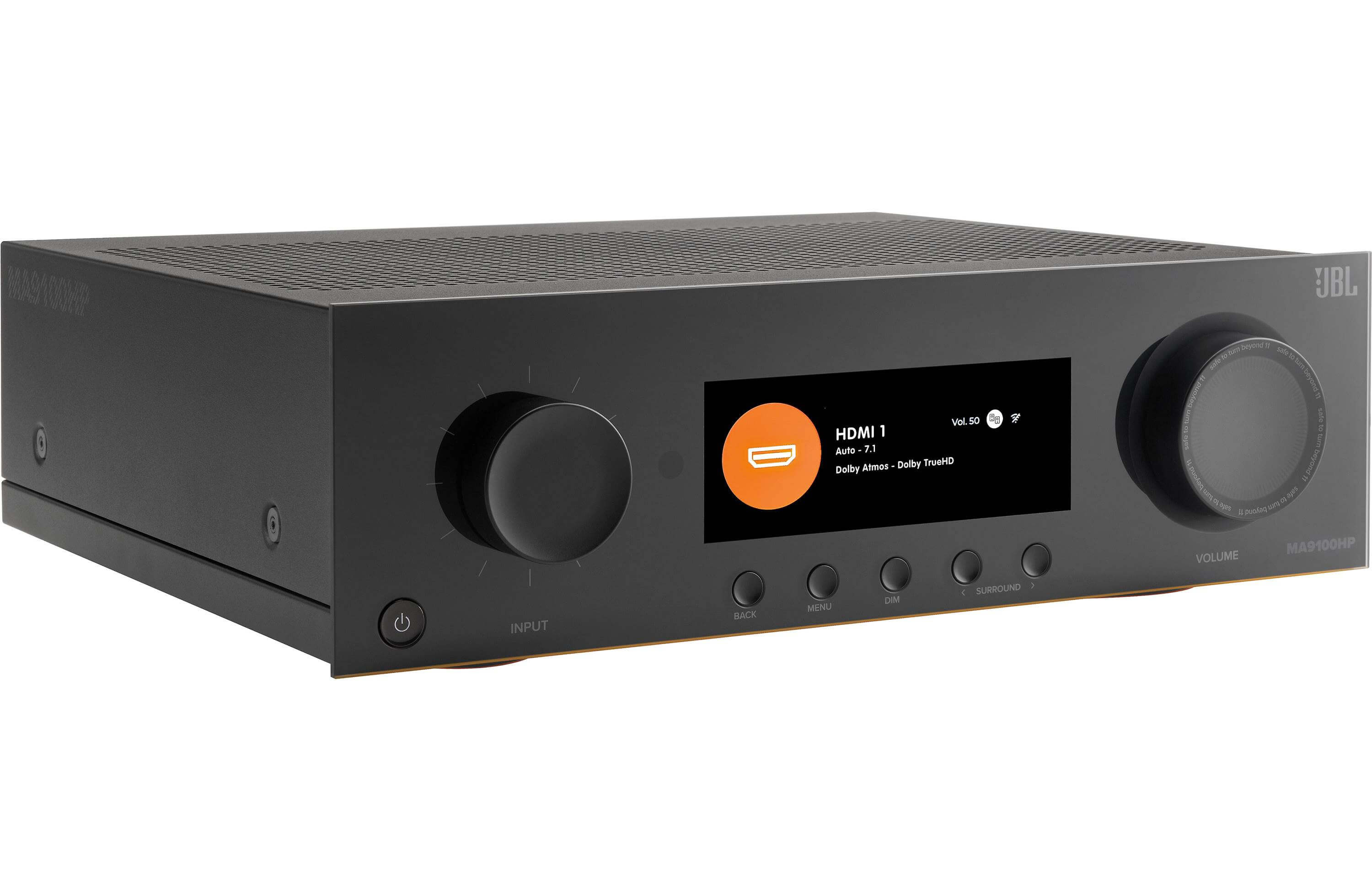

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.
Stunning audio and video performance
High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.
FEATURES
Bluetooth and Network Streaming
Stream music wirelessly via Bluetooth and Network Streaming (Apple Airplay2, Google Chromecast)
Powerful Amplification
Seven channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use equalization for optimized sound quality.
General Specifications
HDMI eARC Yes
HDMI Audio Return Channel Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 3
HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision Yes , Yes
File format MP3 / MPEG-4 AAC
Pure Analog Yes
EZ Set EQ Yes
Front channel bi-amp Yes
Digital signal processing up to 24-bit/192kHz
Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 900W
Standby power consumption <0.5W
Audio Specifications
Channels 9.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) 140W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 140 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 240 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D) 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
Weight 16.8lb (7.6kg)

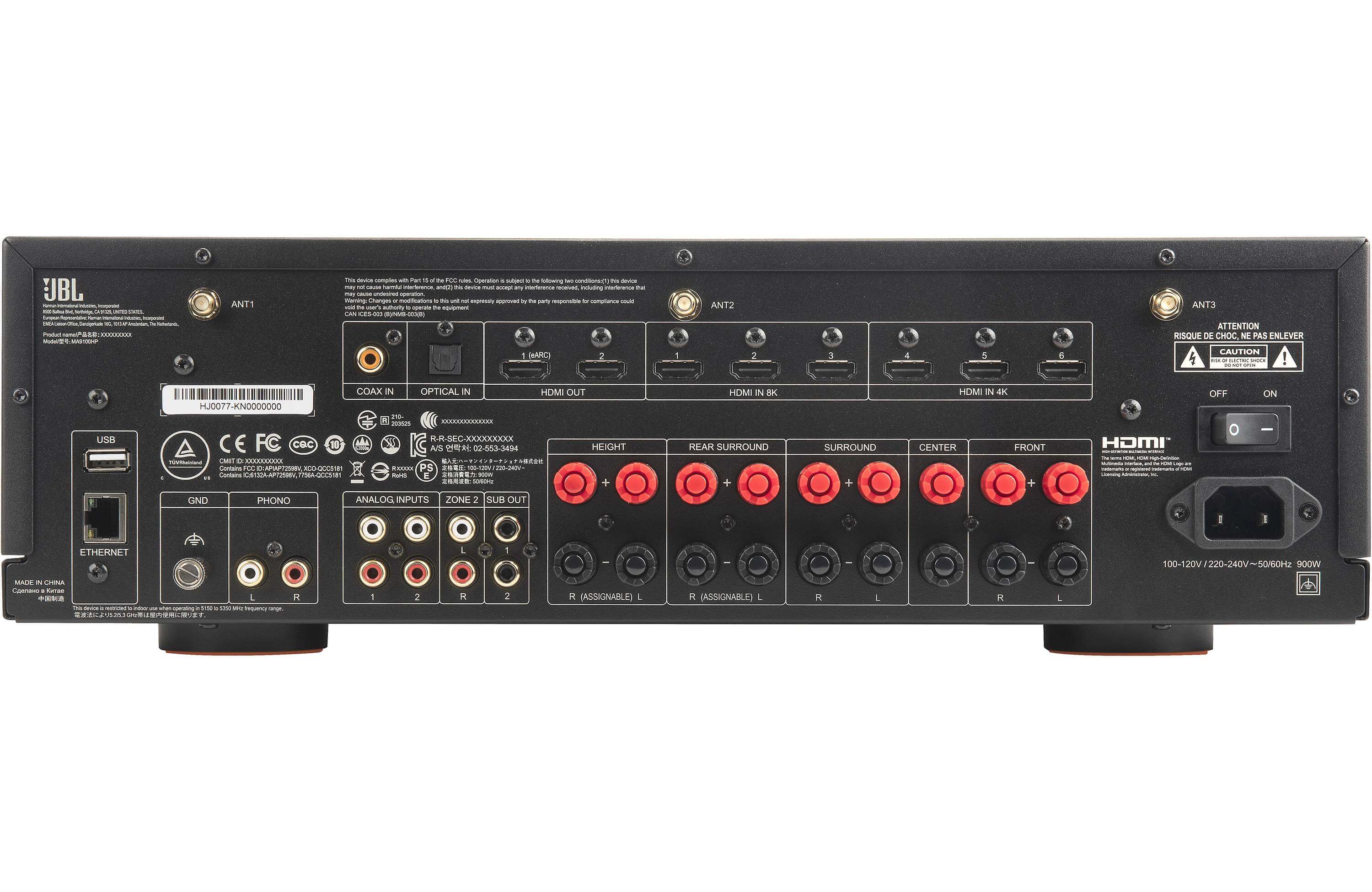

Control and Connection Specifications
HDMI Input/Output 6/ 2
Wi-Fi Yes (2.4/5GHz)
Bluetooth receiver Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Bluetooth transmit Yes
Digital Audio Input 1 Coax, 1 Optical, 1 USB
Stereo analog input 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA) Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet RJ45 Gigabit, WiFi Onboard
What's in The Box?

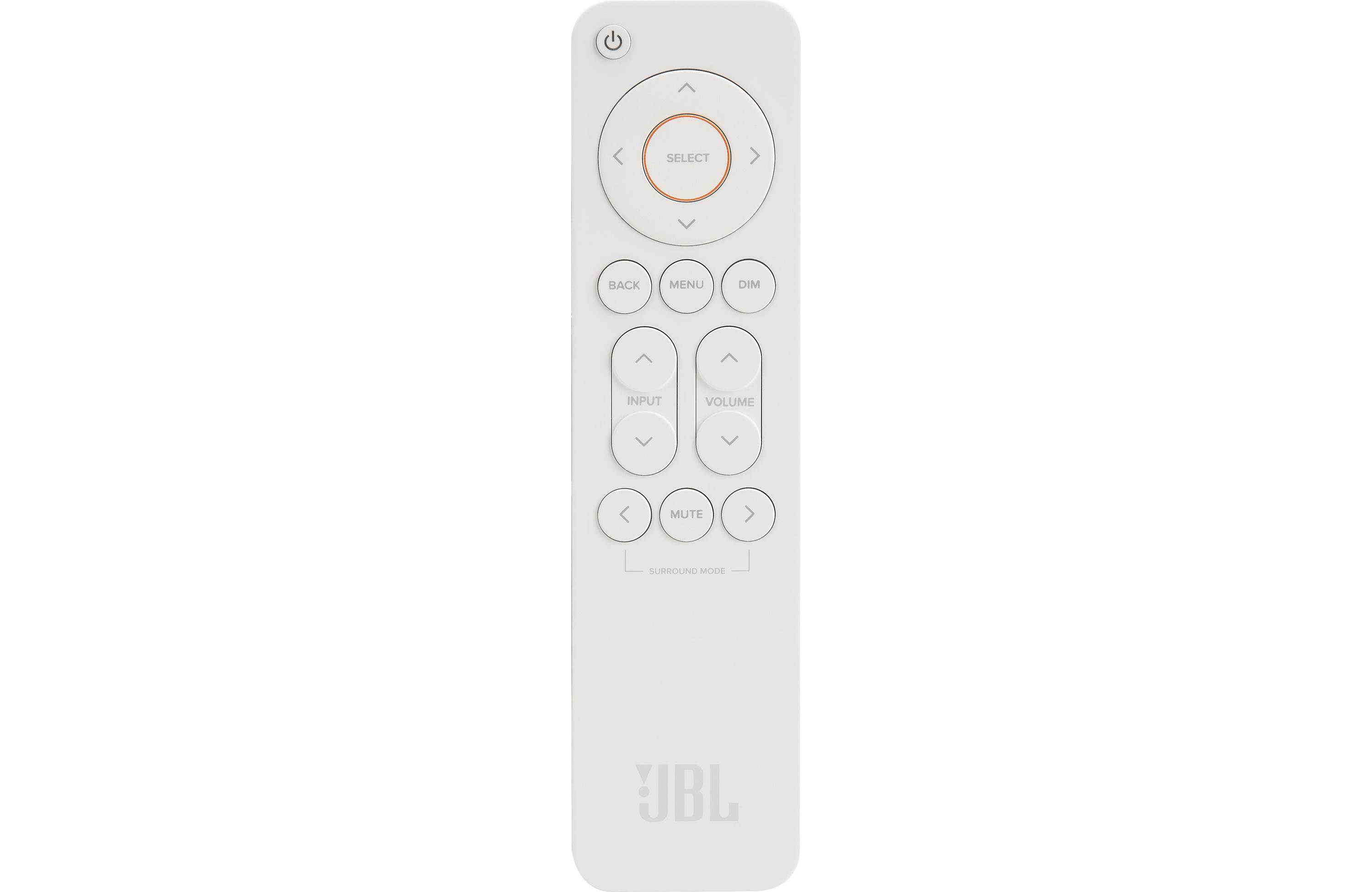

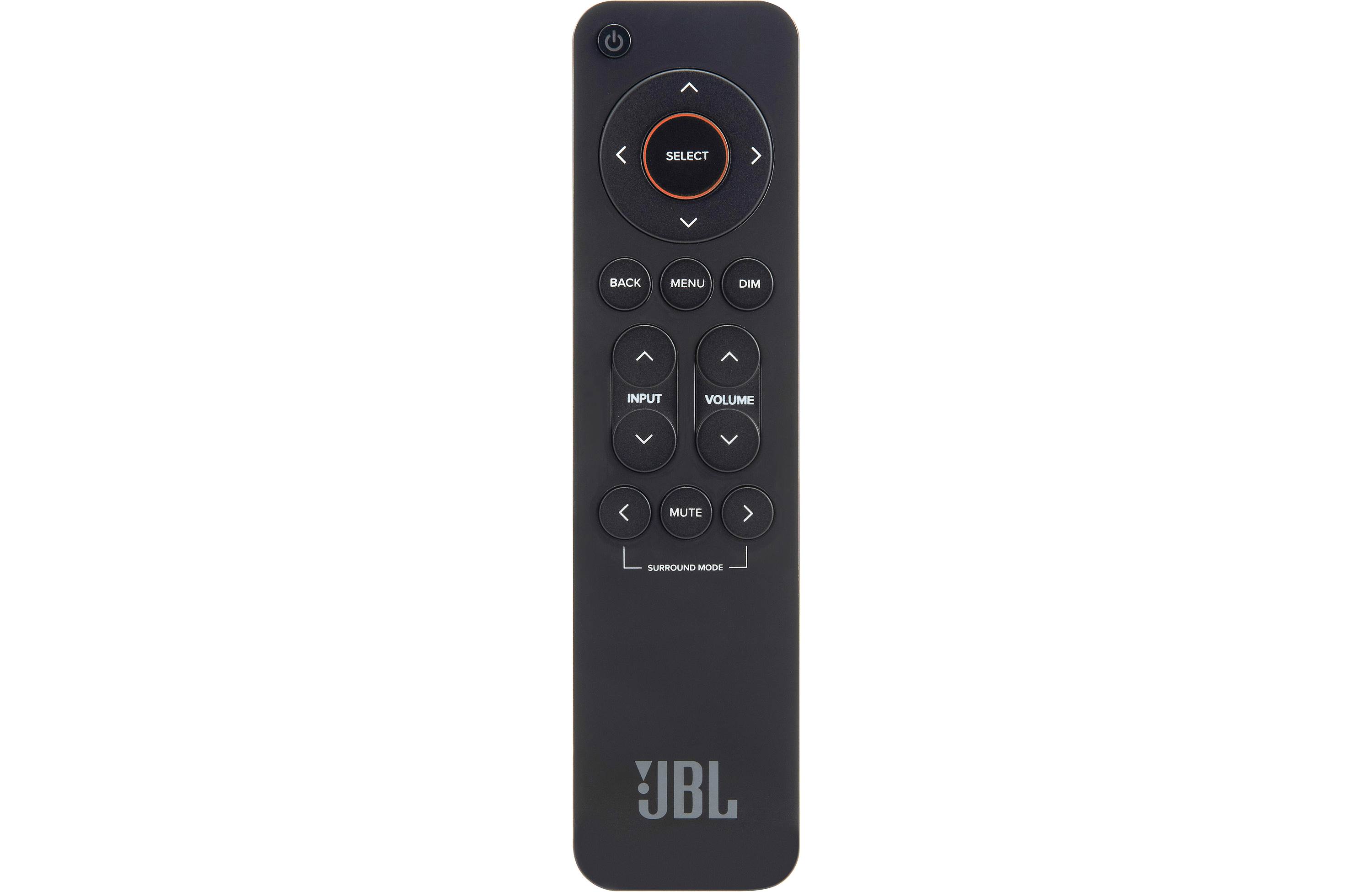

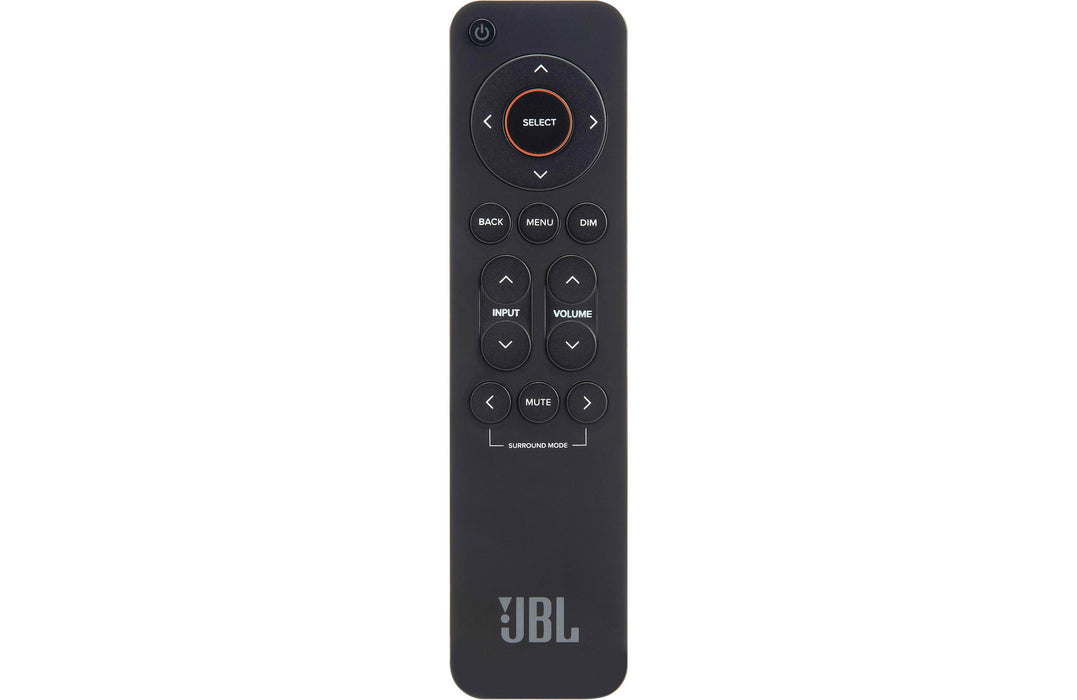

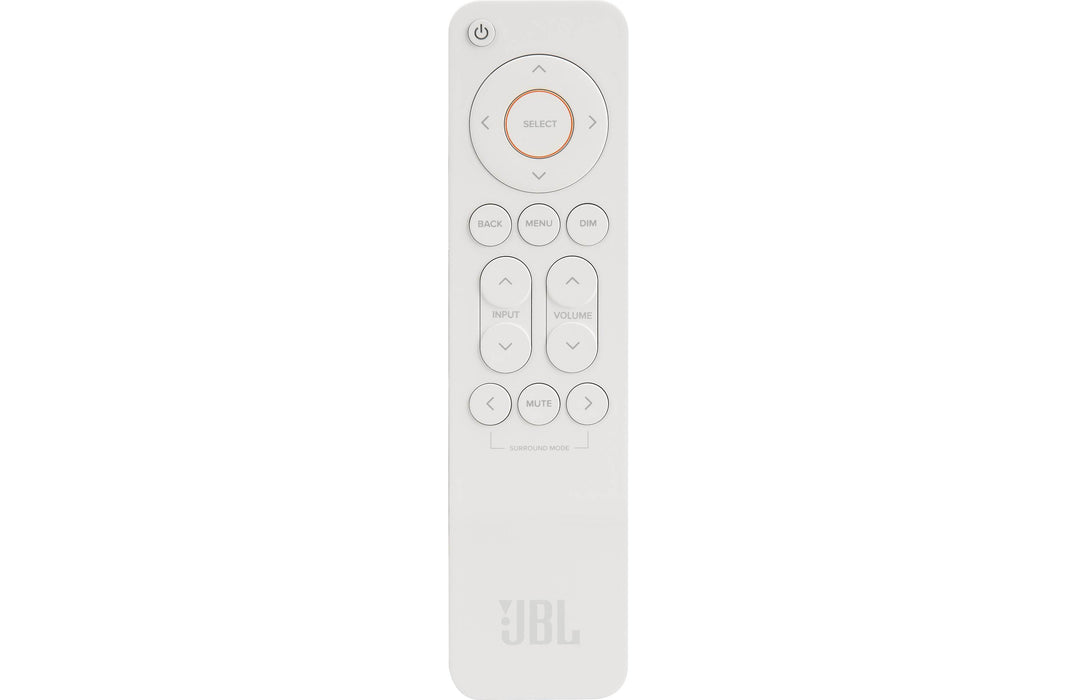

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
