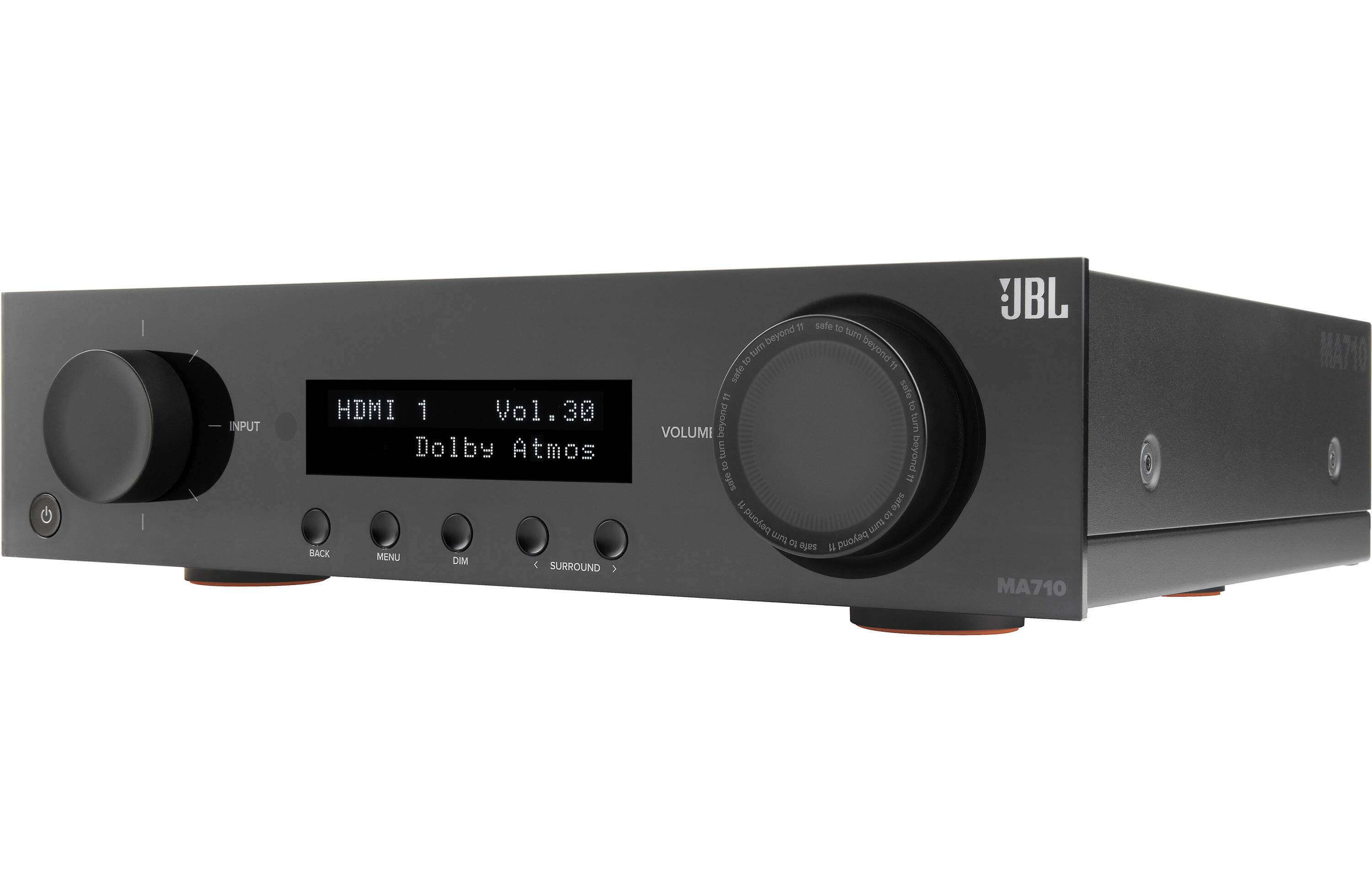

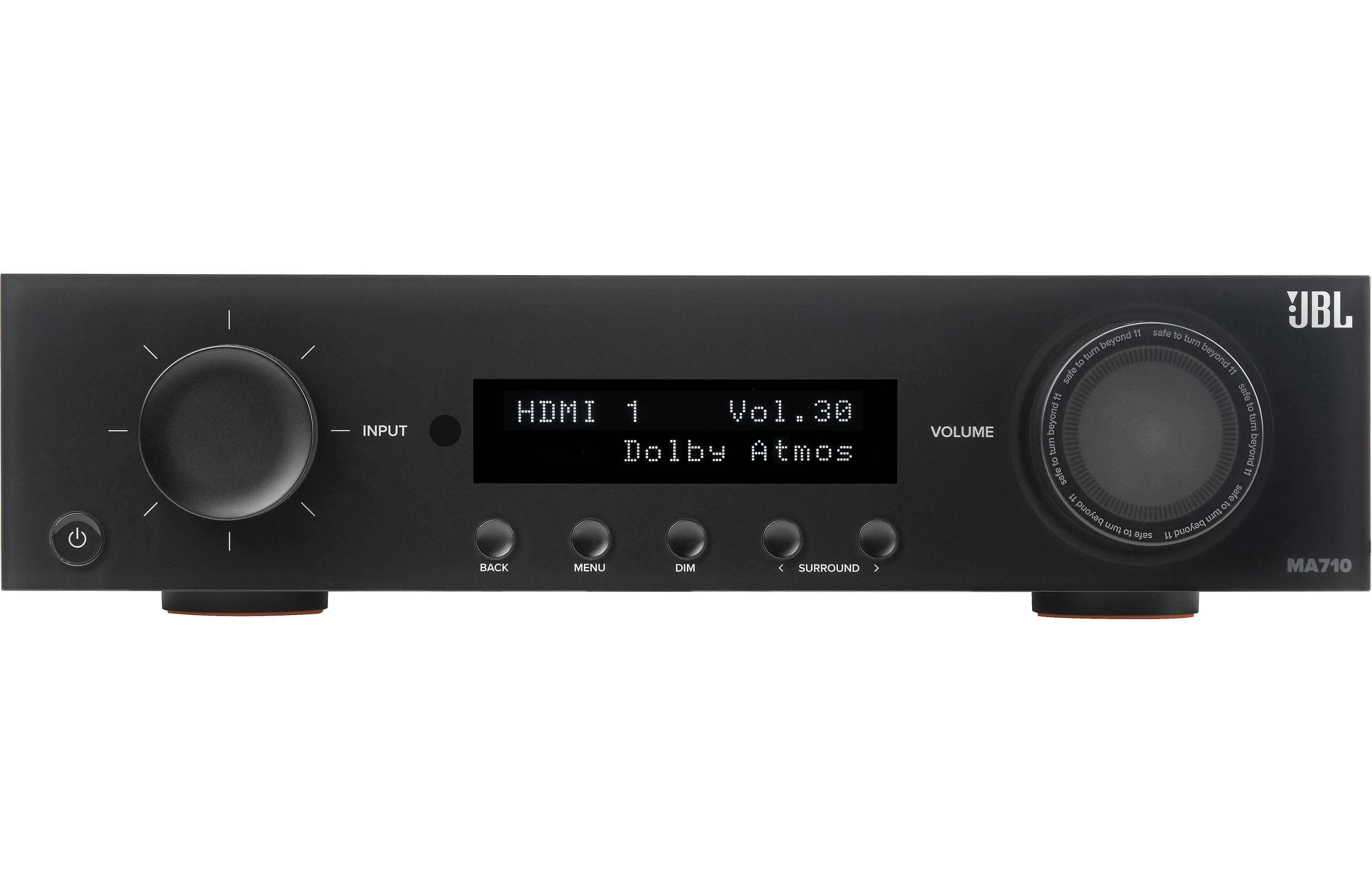

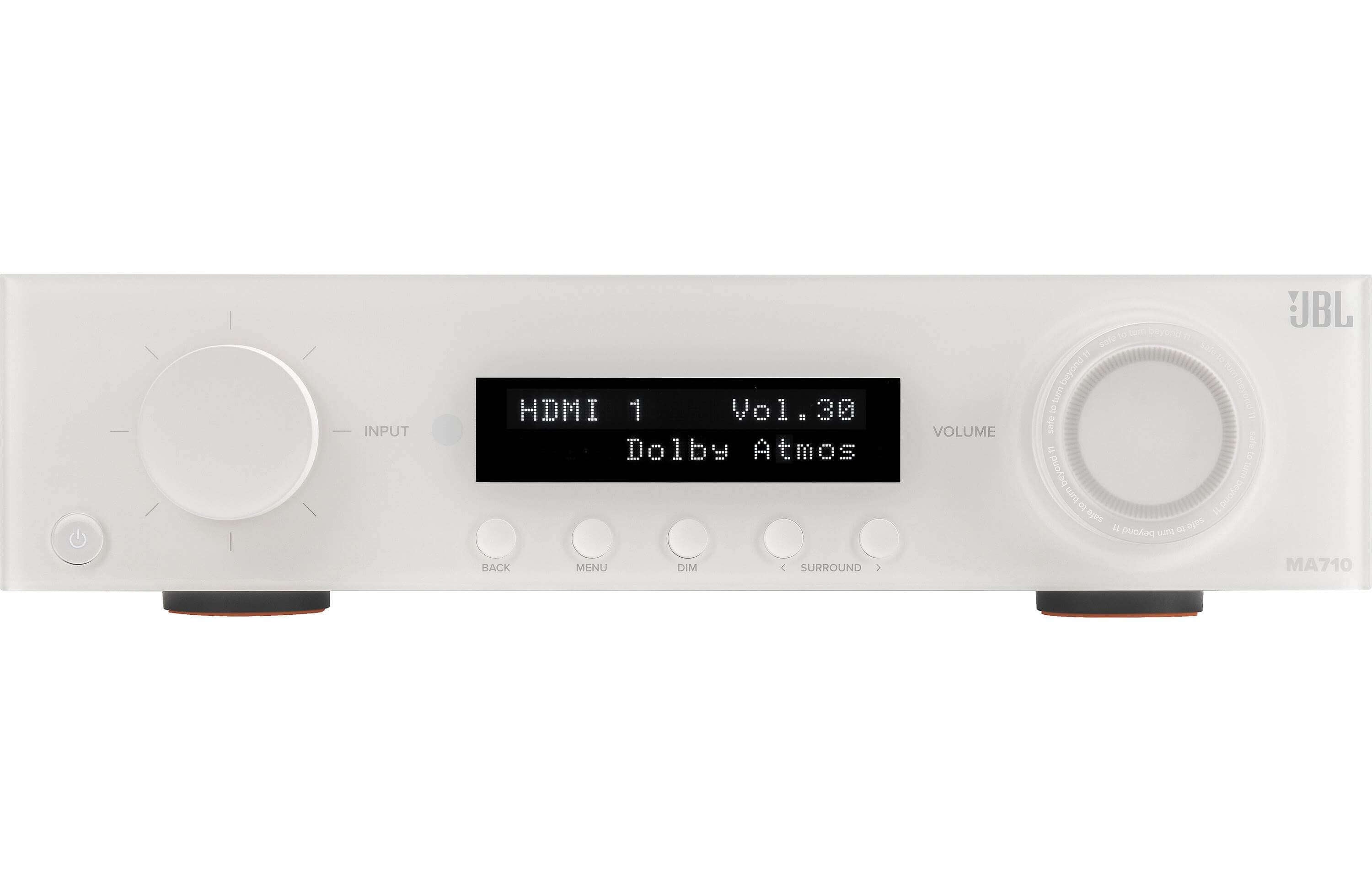

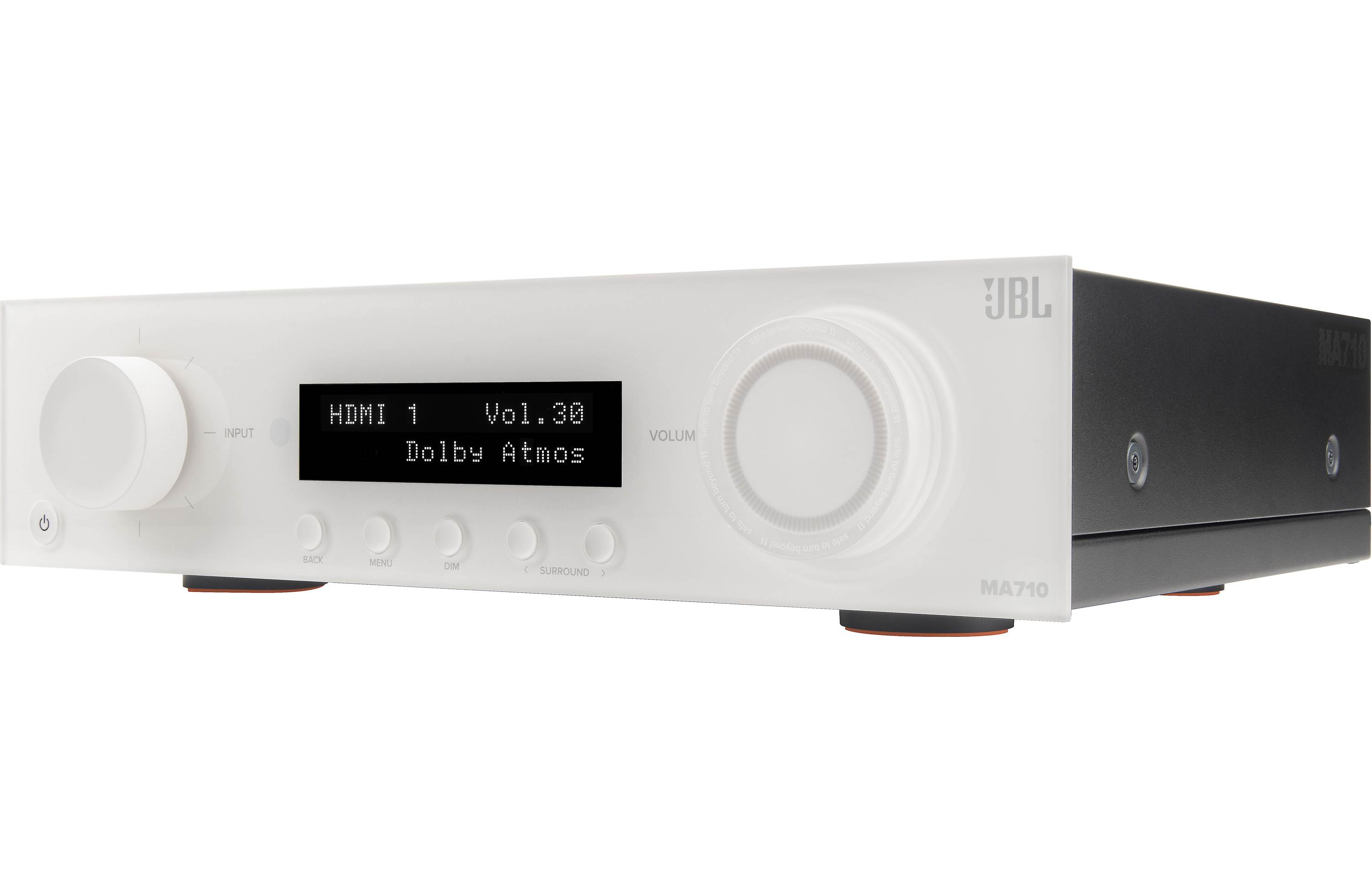

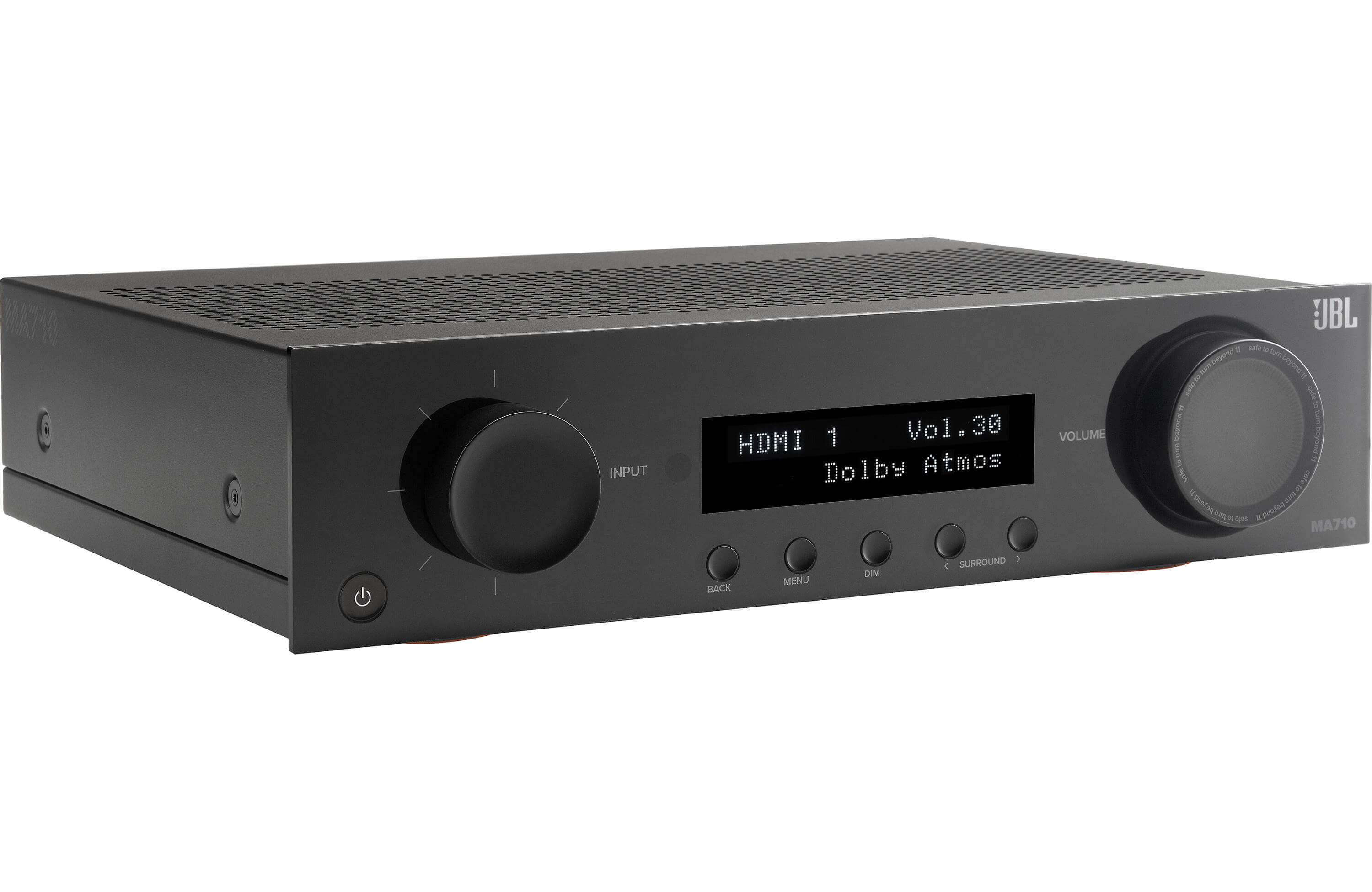

JBL MA710 7.2 Channel 8K A/V Receiver with Bluetooth, Wi-Fi, Apple Airplay 2, Google Cast, and Dolby Atmos

JBL MA710 7.2 Channel 8K A/V Receiver with Bluetooth, Wi-Fi, Apple Airplay 2, Google Cast, and Dolby Atmos

Bring both music and movies to life with true high fidelity.
The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.

Stunning audio and video performance
7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC

High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

FEATURES
Bluetooth and Network Streaming
Stream music wirelessly via Bluetooth and Network Streaming (Apple Airplay2, Google Chromecast)

Enjoy your record collection
Moving magnet phono input for connecting a turntable

On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI)

Specs

General Specifications
HDMI eARC Yes
HDMI Audio Return Channel Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 3
HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision Yes , Yes
File format MP3 / MPEG-4 AAC
Pure Analog Yes
EZ Set EQ Yes
Front channel bi-amp Yes
Digital signal processing up to 24-bit/192kHz
Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 500W
Standby power consumption <0.5W

Audio Specifications
Channels 7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) 110W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 110 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 160 W RMS

Dimensions
Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight 13.8lb (6.3kg)

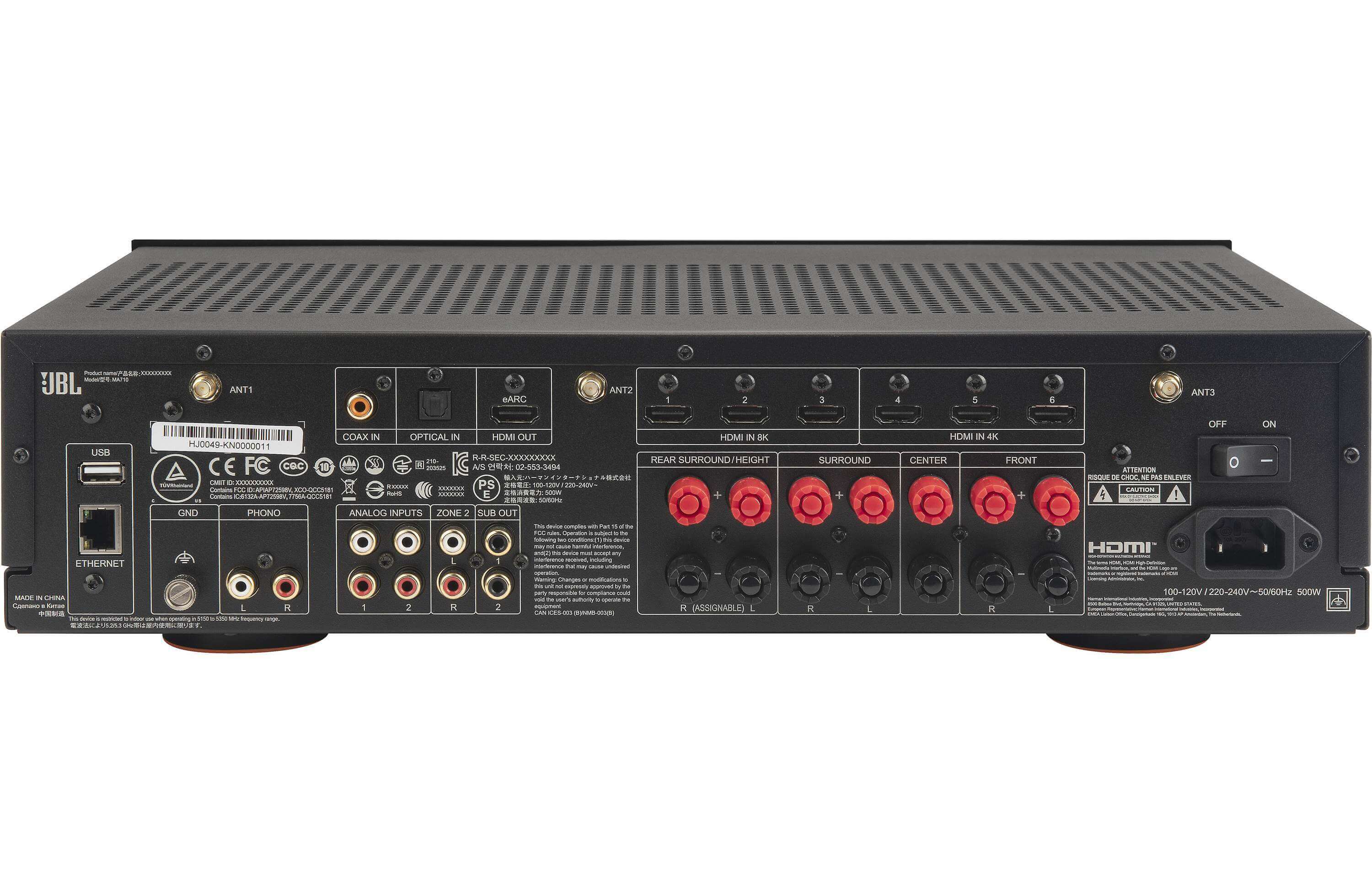

Control and Connection Specifications
HDMI Input/Output 6/ 1
Wi-Fi Yes (2.4/5GHz)
Bluetooth receiver Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input 1 Coax, 1 Optical, 1 USB
Stereo analog input 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA) Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet RJ45 Gigabit, WiFi Onboard

What's in The Box?

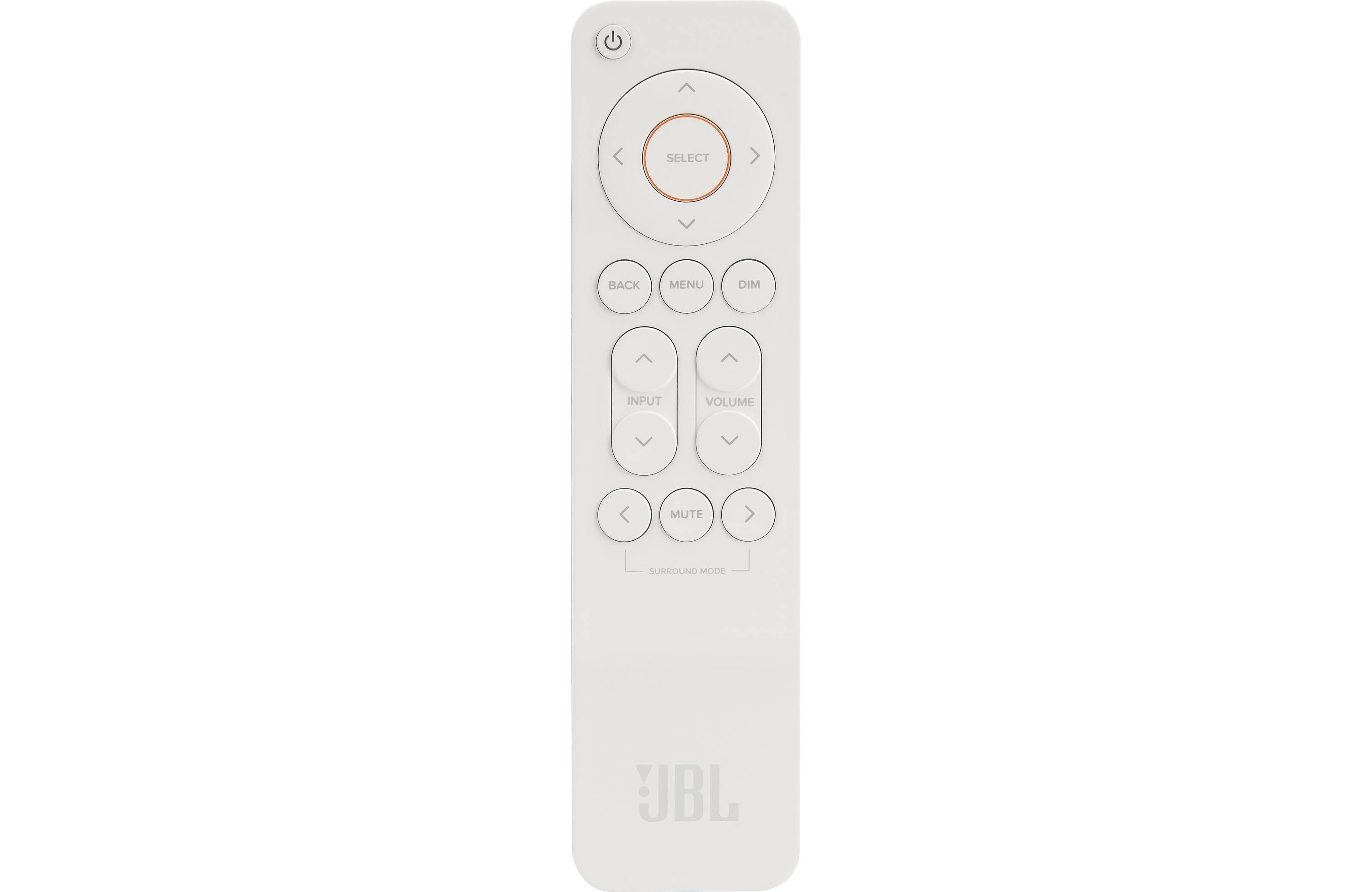

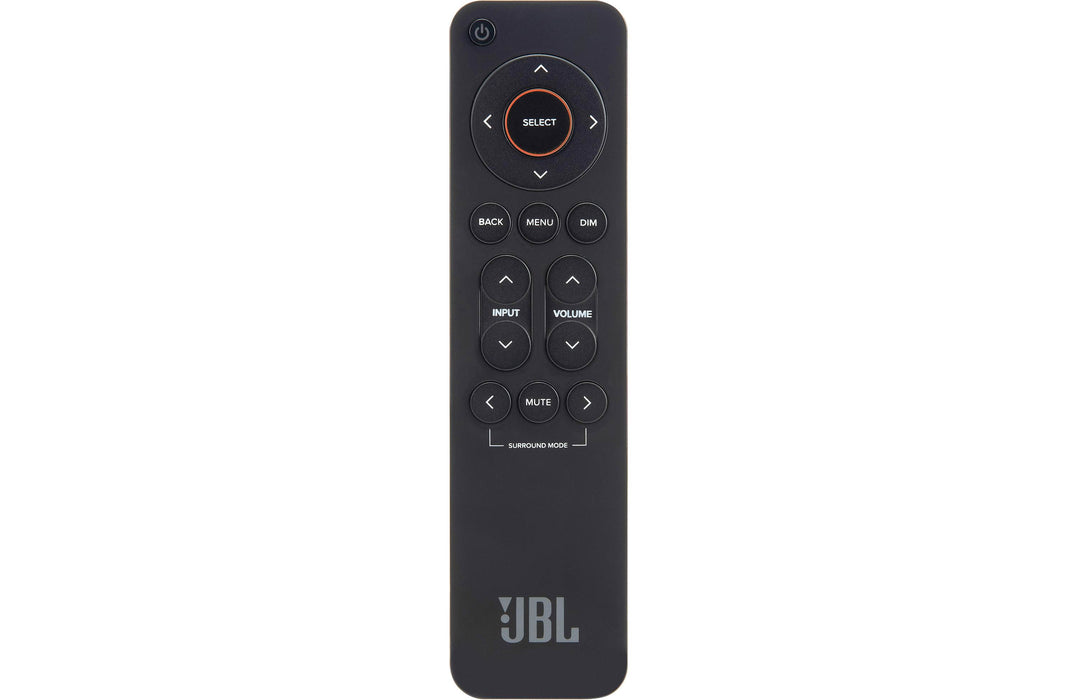

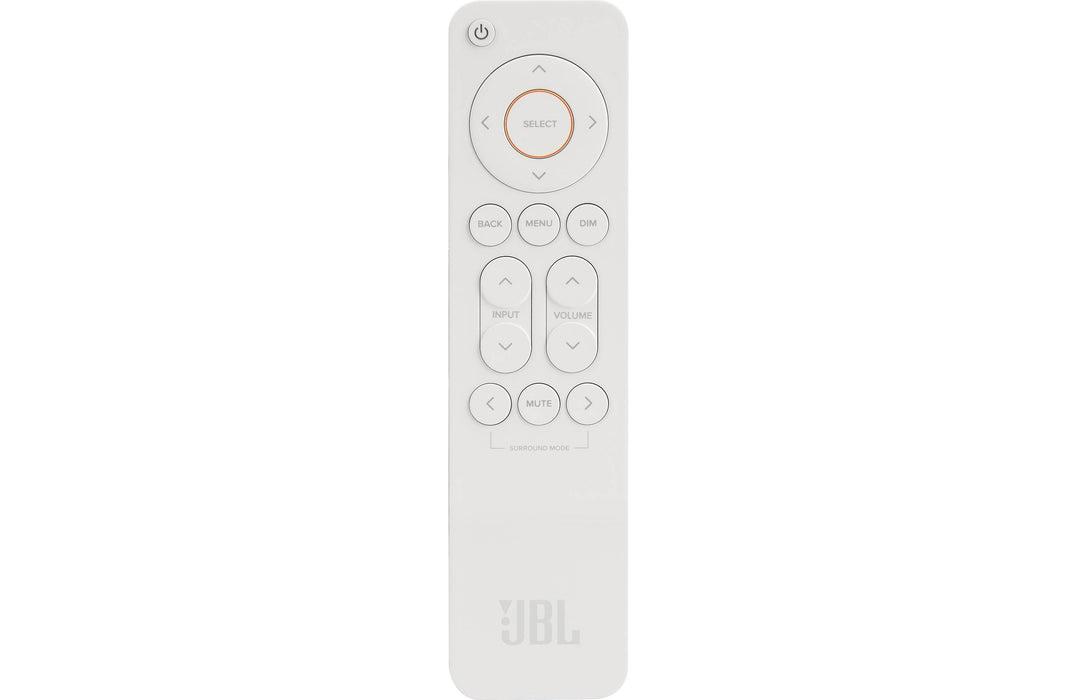

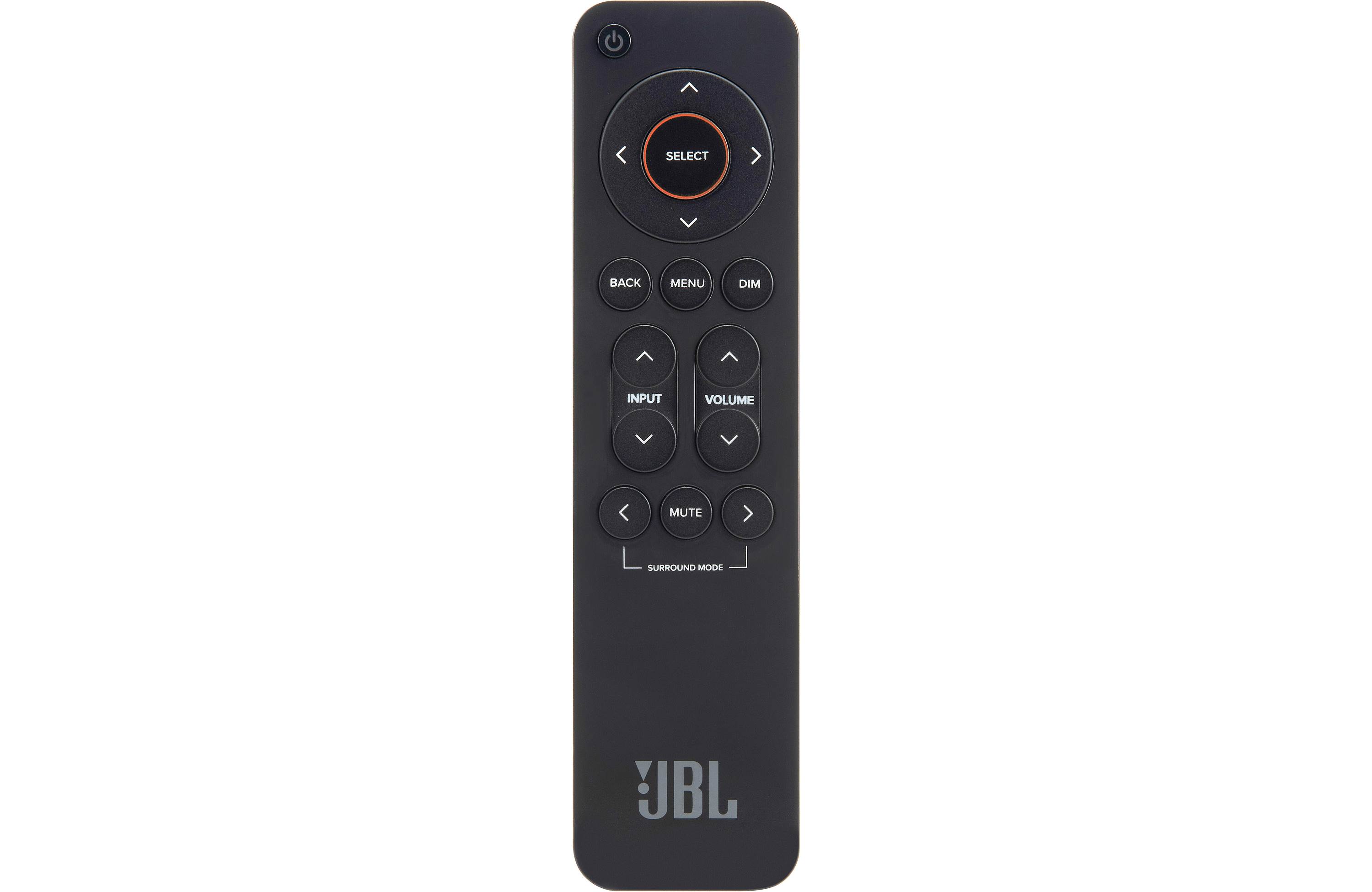

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
