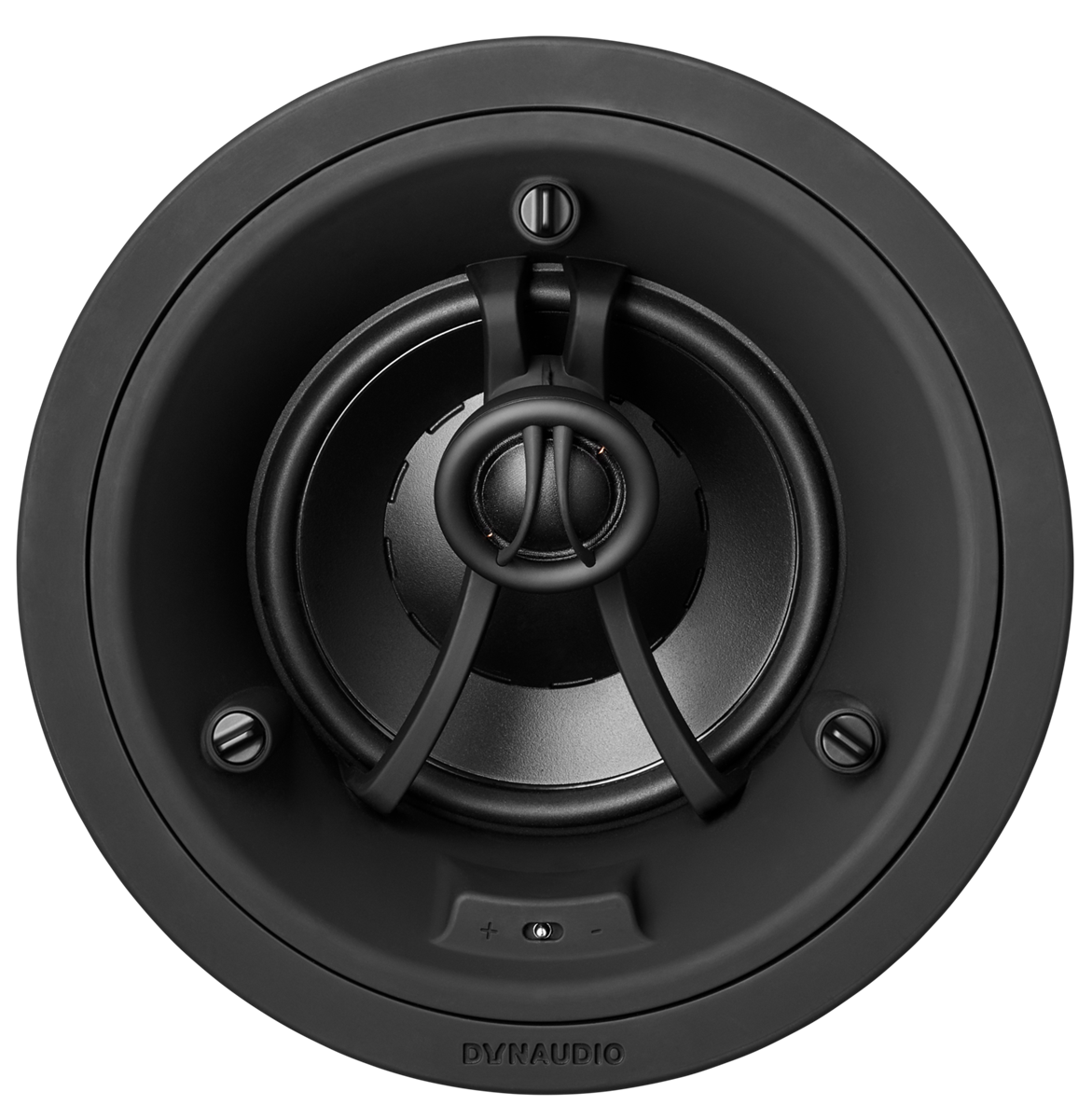

The S4-C65 might be the smallest in-ceiling speaker in Dynaudio s Custom Architectural Studio range, but you d never know from its performance. The 17cm mid/bass driver takes some cues from Dynaudio s high-end speakers such as positioning its magnet system inside the voice coil, to keep things sounding as they should even when it s turned up to 11.
This complements the 28mm precision-coated soft dome tweeter, which can pivot to direct sound exactly where it s needed in the room.

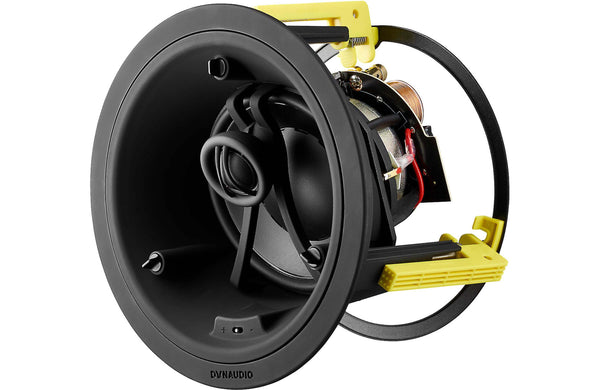

Like the rest of the Studio range, the S4-C65 couldn t be simpler to install and, once it s in place, can be cleverly re-positioned through 360 degrees should you decide to have a furniture reshuffle. Not just that, but paintable grilles, in round or square designs, mean you can customise their design to suit you.
Type: 2-way in-ceiling
Tweeter: 28mm (1in)
Mid/bass: 165mm (6 in)
Frequency response ( 3dB): 55Hz 20kHz
Impedance (nominal/minimum: 8 /5
Sensitivity: 87.5dB
Rated power: 50W
Long term power: 125W
Tweeter level options: -3dB, 0dB +3dB
Tweeter orientation: Three tilt angles
Mid/bass orientation: 18 x 360
Dimensions / Depth: 232mm / 154.5mm 9 1/8 / 6 1/8in
Cut-out dimensions: 210mm 8 1/4in
Grille material: Painted steel
Grille options: Round (supplied) /square
Grille attachment: Magnetic
Grille finish: White (paintable)
Certifications: CE
Environmental: RoHS
