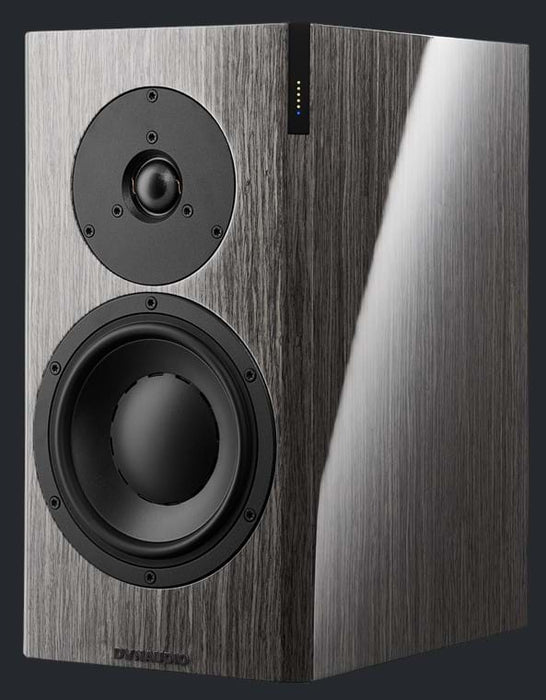

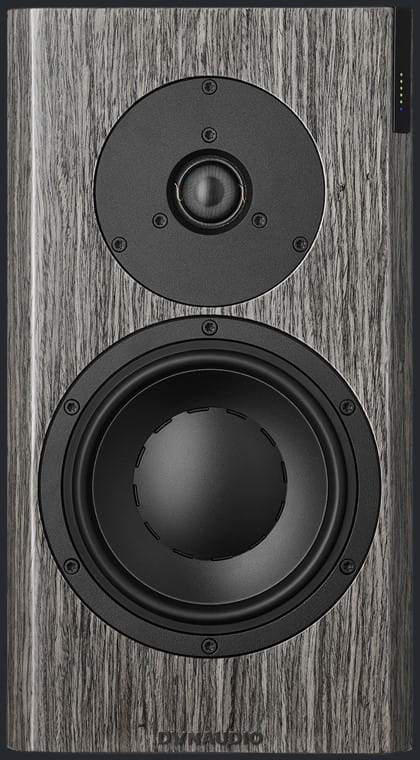

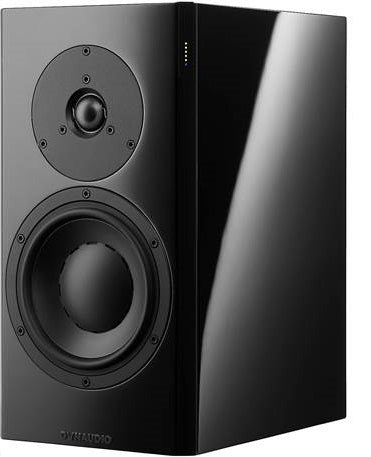

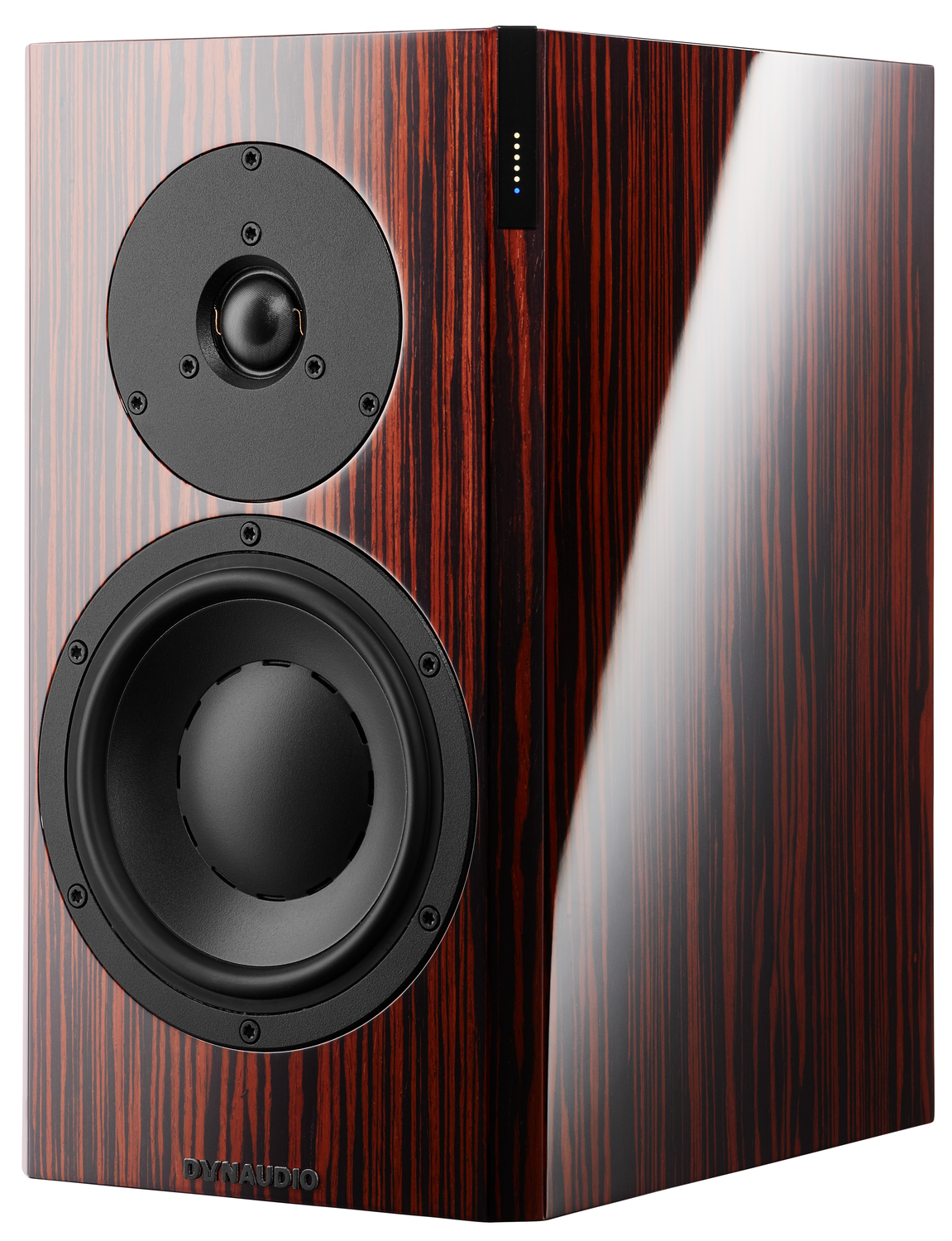

Dynaudio Focus 20 XD Bookshelf Loudspeaker (Pair)
The next generation of stand-mounted high-end loudspeakers
No amplifier. No speaker cables. No compromise.
Dynaudio has spent decades repeatedly redefining the compact loudspeaker and with the 300W Focus 20 XD, it s happened again. The MSP driver and 28mm tweeter from the rest of the Focus XD range appear here, too along with all the authority and control of the larger speakers. It s quality, concentrated.
The Focus XD range is a complete hi-fi system without the clutter of a complete hi-fi system. These high-end active speakers bring true high-resolution wireless streaming, from every conceivable source, to your home.
Send in a digital signal (wired or wireless, it s your choice), and it ll stay that way right up until the last possible moment meaning it stays pure all the way from the recording studio to the speaker driver.
There s no clutter, no fuss and no catch.
Running the show is cutting-edge digital processing technology capable of handling full-fat, 24-bit/192kHz hi-res files.
All the speakers in the range share common controls and connections so if you want to mix-and-match different models from the range, you can. There s digital coaxial in and out, plus analogue input (with adjustable sensitivity), as well as a seven-position control for fine-tuning the speakers placement in your room.
And if you add the Dynaudio Connect box, you get digital optical, another digital coaxial and RCA and 3.5mm analogue inputs plus mini-USB (which can stream 24-bit/96kHz files), aptX Bluetooth and Wi-Fi connectivity (including DLNA).
The Focus XD s firmware can even be upgraded when our engineers have another Eureka! moment (they get them a lot). In fact, that s exactly what s just happened. In the 2017 version, not only have they redesigned the crossovers and found a way to use less processing (for even cleaner reproduction), they ve managed to extract more volume from the drivers without distortion or compression. And because there s less processing happening there, we ve been able to use more in the EQ for even better speaker-position compensation. We ve also included tech from our LYD pro-studio monitors that lets you tweak overall brightness with a switch on the back.
Use them with your existing system (they ll integrate just fine), build a multiroom set-up (you can use them with the Xeo range too), or even hook them up to your TV while getting genuine high-end wireless hi-fi into the bargain.
Specs
Analogue Inputs: 1 x RCA per speaker
Digital Inputs/Outputs: 1 x RCA input 1 x RCA output
Wireless: Accepts up to 24bit / 96kHz (Connect Box)
Frequency Response ( 3dB): 39Hz - 24kHz
Box Principle: Bass Reflex Rear Ported
Crossover: 2 way DSP Based
Crossover Frequencies: 4200Hz
Woofer: 17cm MSP
Tweeter: 28mm soft dome
Specification sheet for Focus XD part 1
Amplifier Power: 2 x 150W
AC Power Input: 100-240 V 50/60Hz
Standby Power Consumption: < 0.5W
Maximum Power Consumption: 200W
Weight: 8,65kg / 19lb
Dimensions (W x H x D): 198 x 360 x 307mm
7.8 x 14.2 x 12.1in
Dimensions with feet/grill (W x H x D): 198 x 360 x 322mm
7.8 x 14.2 x 12.7in
