Definitive Technology Dymension DM20 Slim Center Channel Speaker or LCR Speaker

UPC: 747192137083
$799.00

SKU DymensionDM20

Product Qualifies for FREE Ground Shipping

Definitive Technology Dymension DM20 Slim Center Channel Speaker or LCR Speaker

The Dymension™ DM20 provides exceptional center channel definition to any immersive home theater system with a low-profile design that can be placed below your TV or be wall-mounted in an LCR configuration. Its four long-throw woofers and
aluminum oxide tweeter deliver dynamic, full-range sound with superior vocal clarity.

Product Features:

• Five-driver array for rich, full-range center channel sound
• Built-in powered subwoofer for deep, seamless low end
• Aluminum oxide tweeter brings crisp highs and ultra-clear speech
• BDSS™ woofers deliver superior midrange detail
• Linear Response Waveguide™ extends dispersion
• 3XR™ Architecture with passive radiators delivers max bass impact
• Intelligent Bass Control for smooth integration
• Acoustically transparent, black grille cloth virtually disappears
into the room
• Timbre-matched with Definitive Technology speakers

KEY BENEFITS

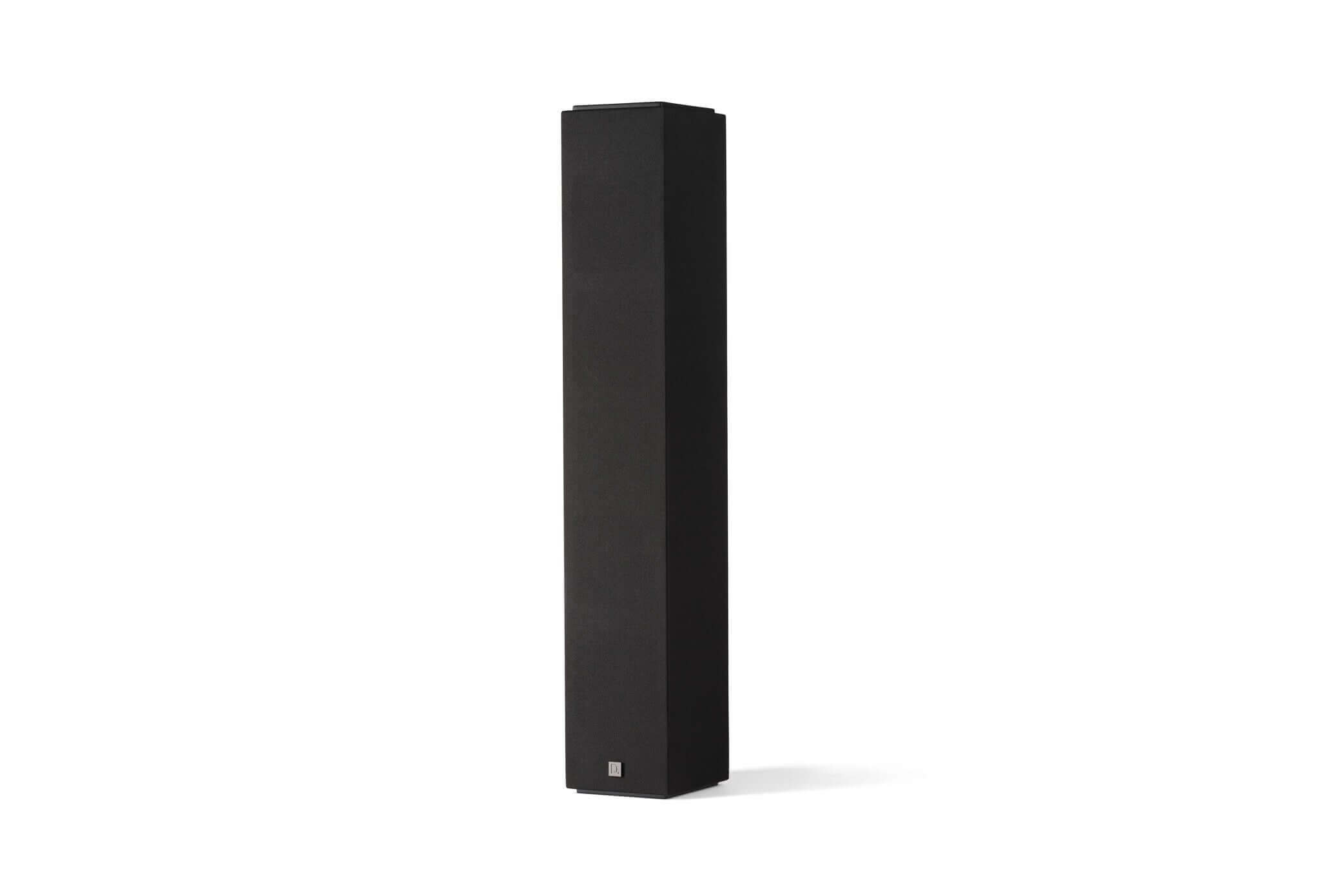

Slim, Wall-Mountable Design
DM20’s slim, low-profile design accommodates home theater cabinetry or can be
wall-mounted easily. But don’t let its size fool you, the DM20 produces powerful,
clear sound.
Advanced Five-Driver Array
The DM20’s four 4” midrange woofers and 1” tweeter deliver dynamic, full-range
sound that commands your attention and pulls you into the action.
Custom Aluminum Oxide Tweeters
The DM20’s rigid, well-damped tweeter provides smooth extended response with
crisp transients and exceptional definition. You’ll notice clearer speech than ever
before, along with a more precise sonic image.
Long-Throw Midrange Woofers
Midrange woofers feature composite polymer cones that produce superior
midrange detail. Long-throw surrounds optimize driver excursion for improved lowend performance.
Timbre-Matched
Consistent sound across Definitive Technology series gives you the flexibility to mix
and match Dymension™, Dymension CI, and Mythos speakers to design your dream
home theater and whole-home system.

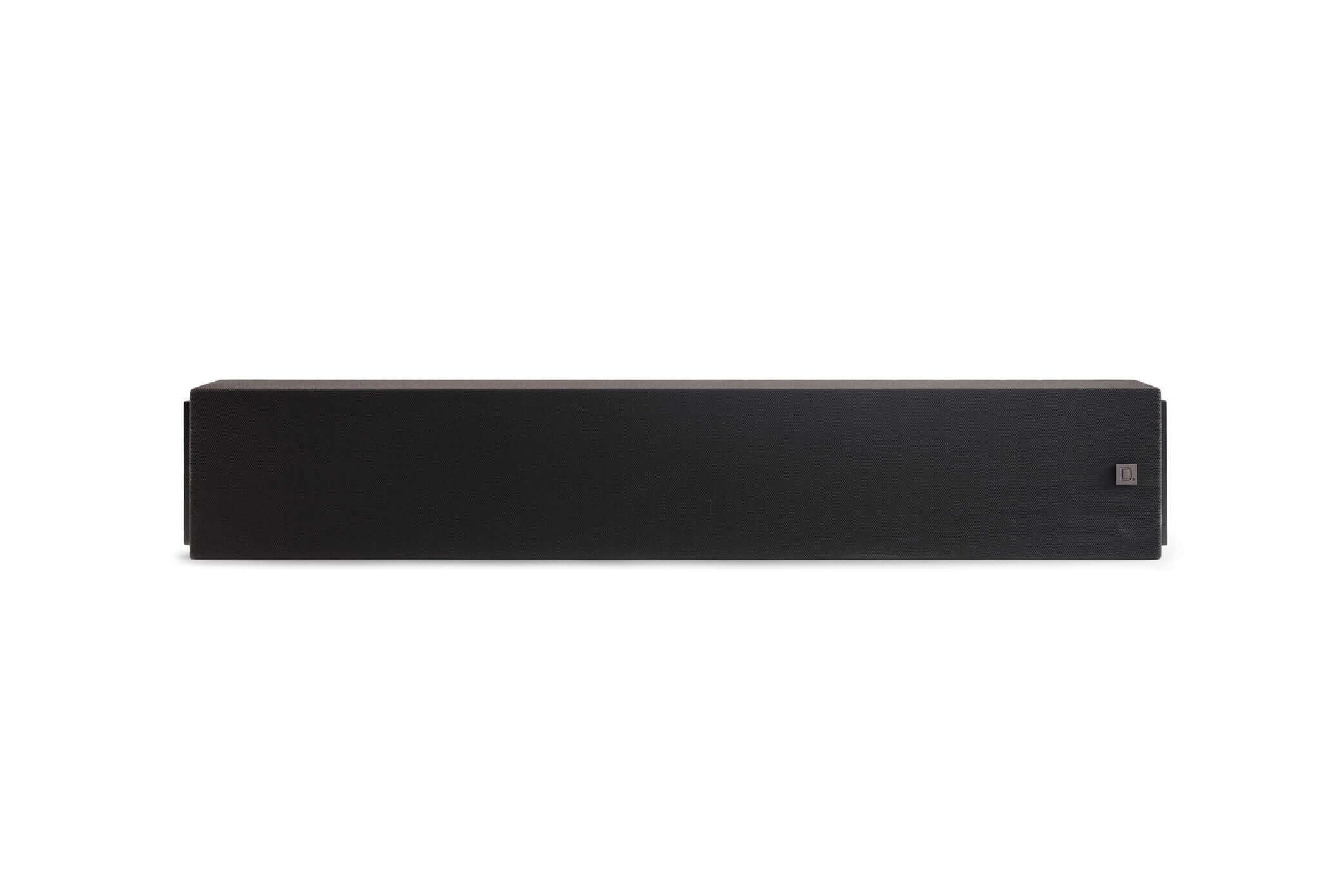

Disappearing Design
The DM20 is wrapped in an acoustically transparent black cloth grille. As soon as you
dim the lights, it virtually disappears into your room—so you can focus on the movie,
not your speakers.

Specs

Dimensions (H × W × D)
7.5 in. × 31.5 × 15.9 in.
190 × 800 × 403 mm
Weight 54 lbs (24.5 kg)
Color Black
Grille Material Acoustically transparent black cloth (not removable)
Tweeter (1) 1 in. aluminum oxide dome
Midrange/Midbass (4) 5.25 in. BDSS with Linear Response Waveguide
Subwoofer System Driver Complement
(1) 8 in. subwoofer
(2) 8 in. passive radiators
Frequency Response 36 Hz–30 kHz (-10db) 41 Hz–23 kHz (-3db)
Nominal Impedance 6Ω (8Ω compatible)
Sensitivity 93dB (2.83V/1m)
Recommended Amplifier Power Rating 50–300W
Subwoofer Amplifier 250W (Peak) Class D
Intelligent Bass Control Variable +12dB/-15dB
