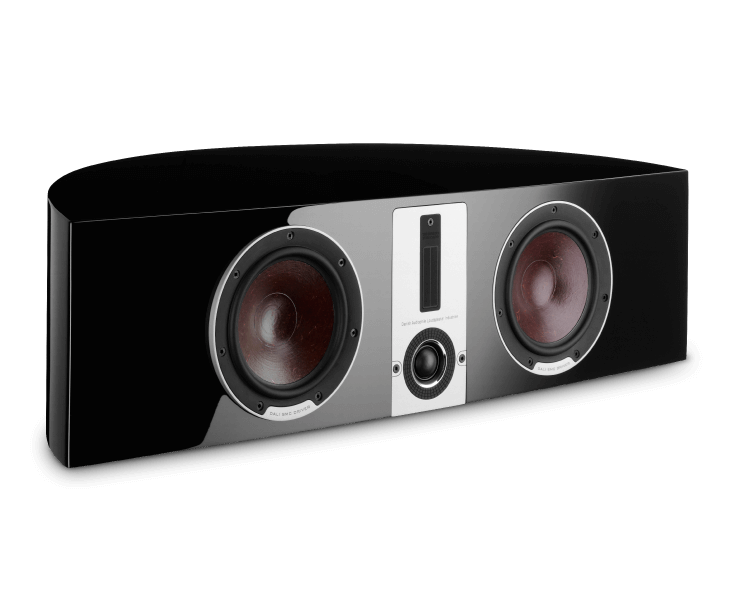

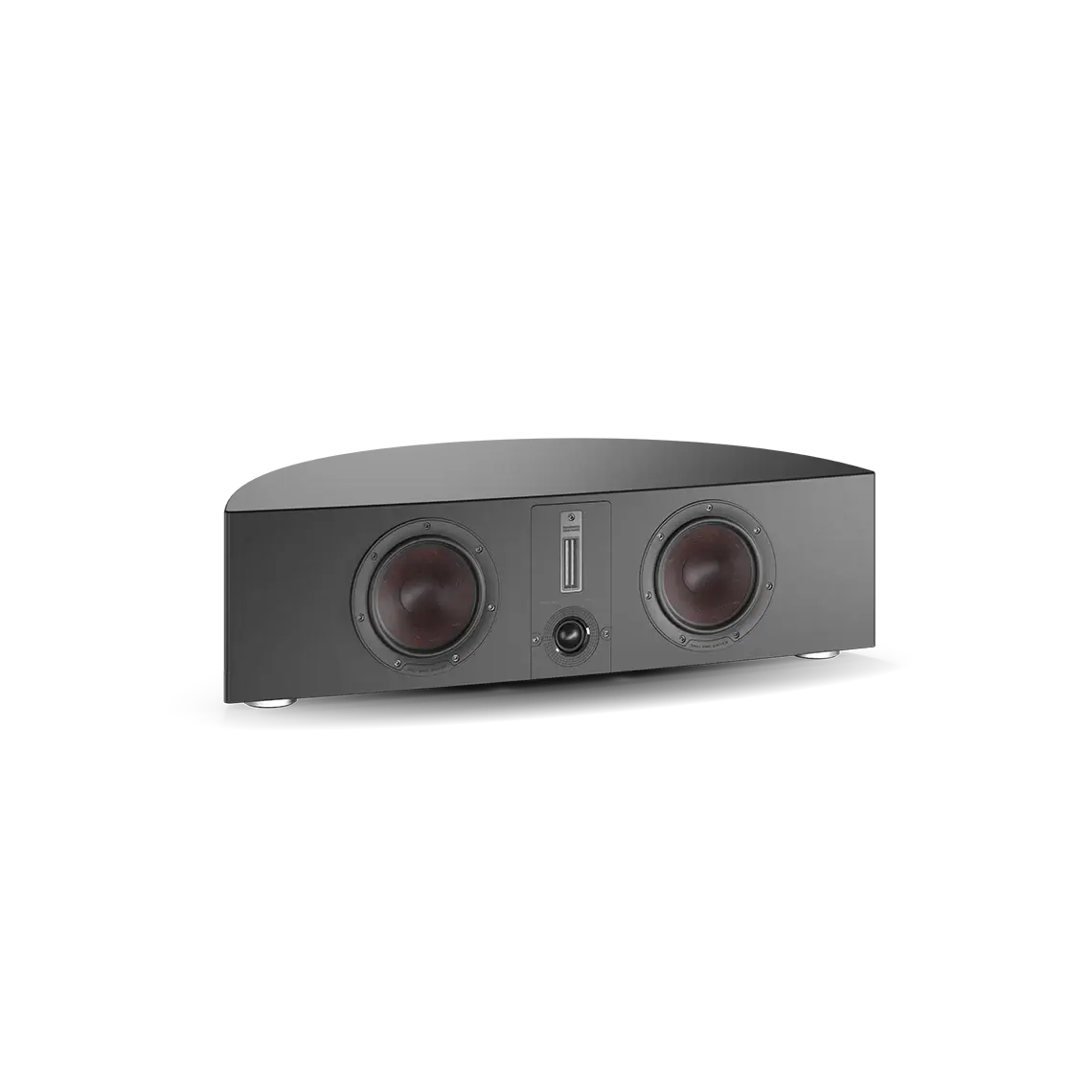

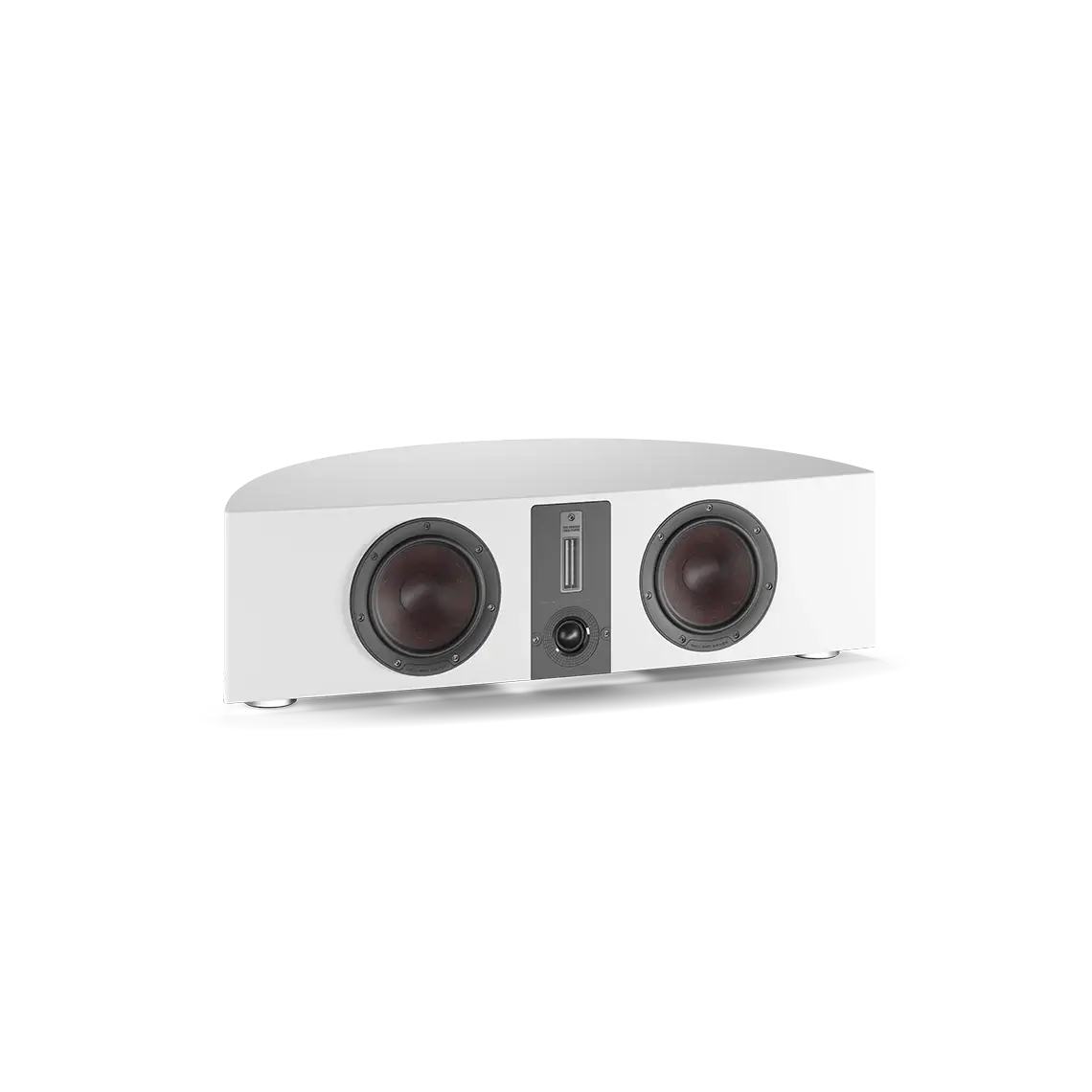

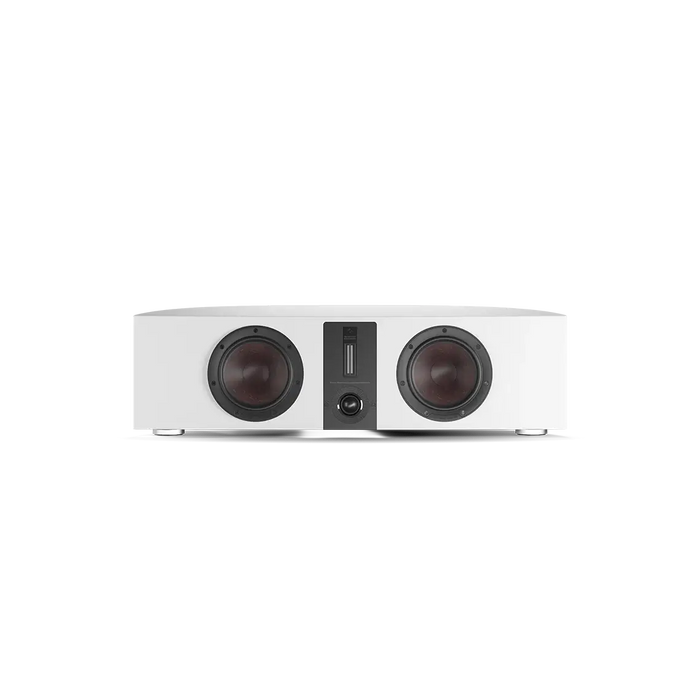

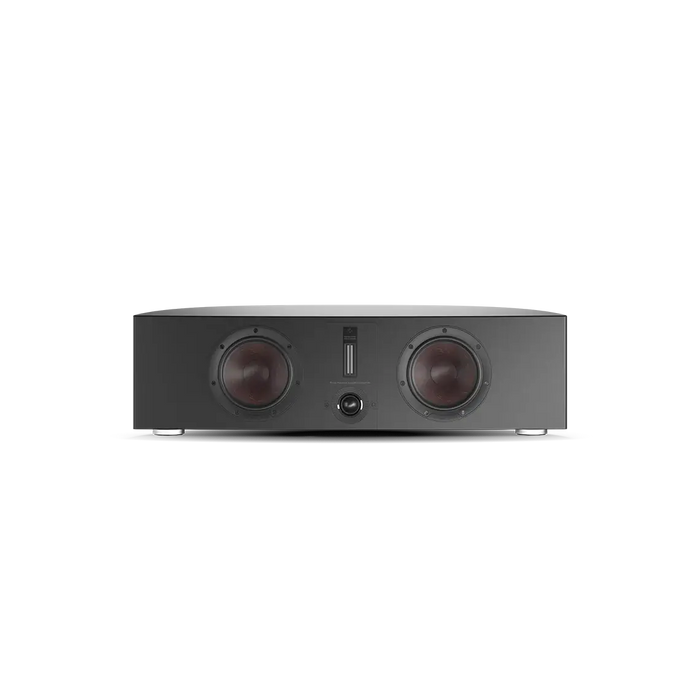

Dali Epicon Vokal Center Channel Speaker (Each)
Dali Epicon Vokal Center Channel Speaker (Each)
Turn your living room into a world-class movie theatre. Experience every word, shout or whisper in ultimate clarity with the movie star of the EPICON family, the VOKAL centre speaker - effortlessly reproducing human voices and delivering audio tracks with stunning realism and accuracy.
PRODUCT DETAILS

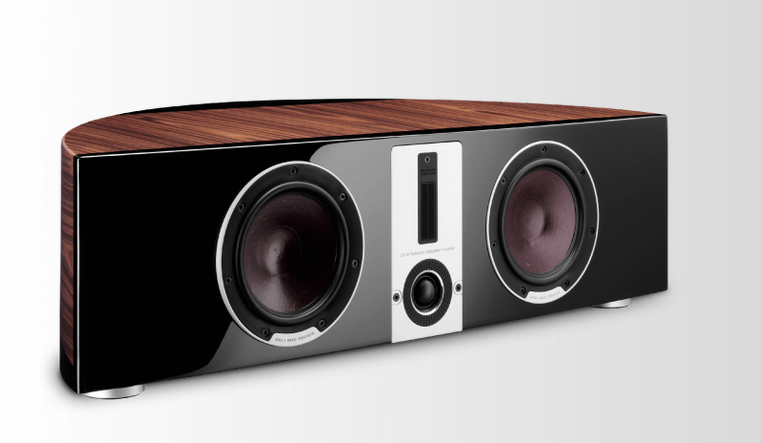

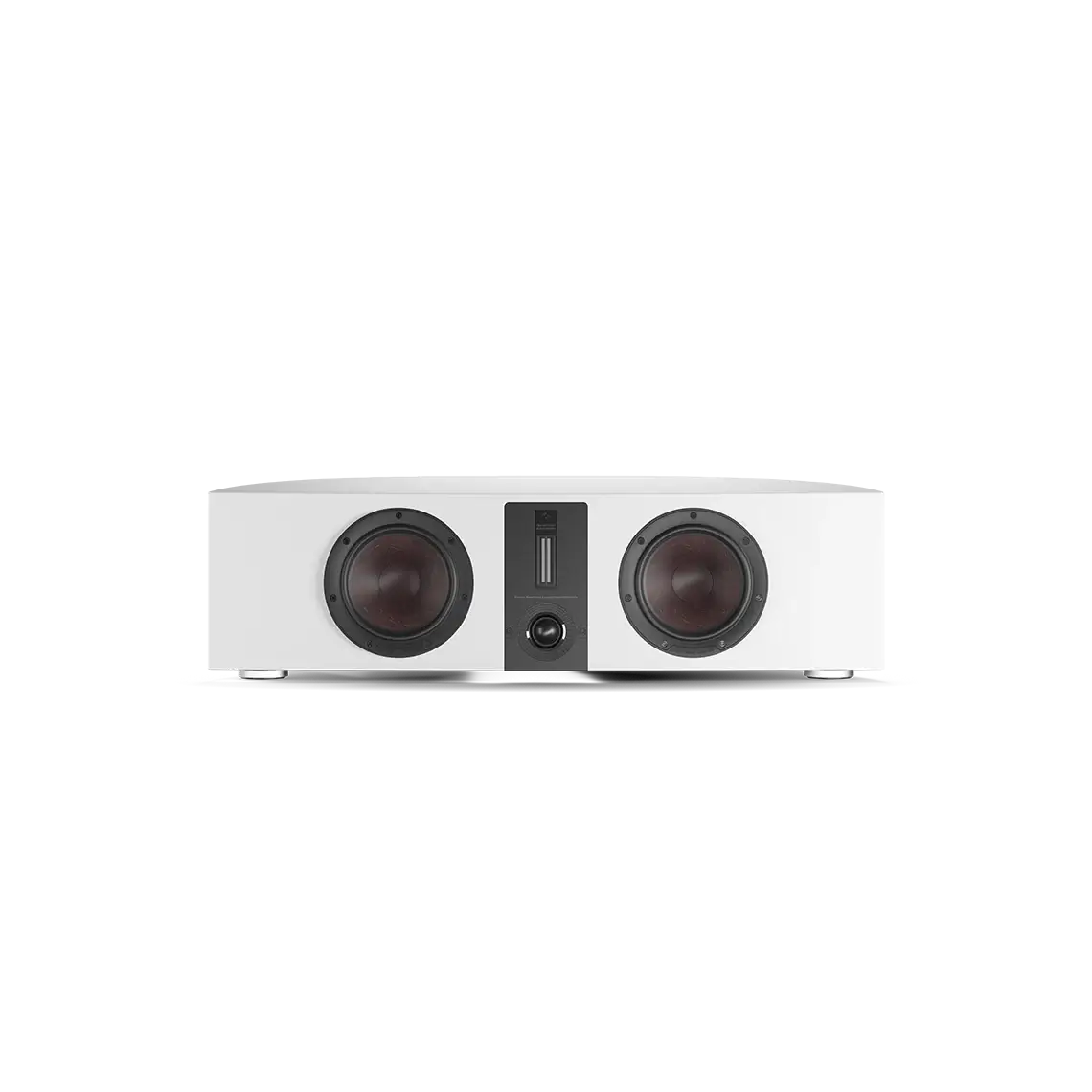

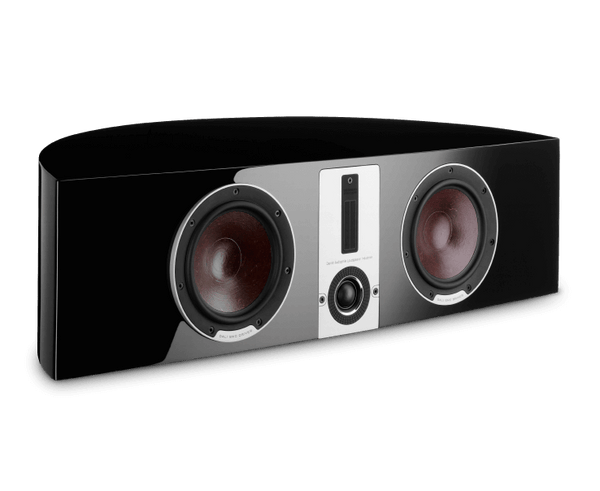

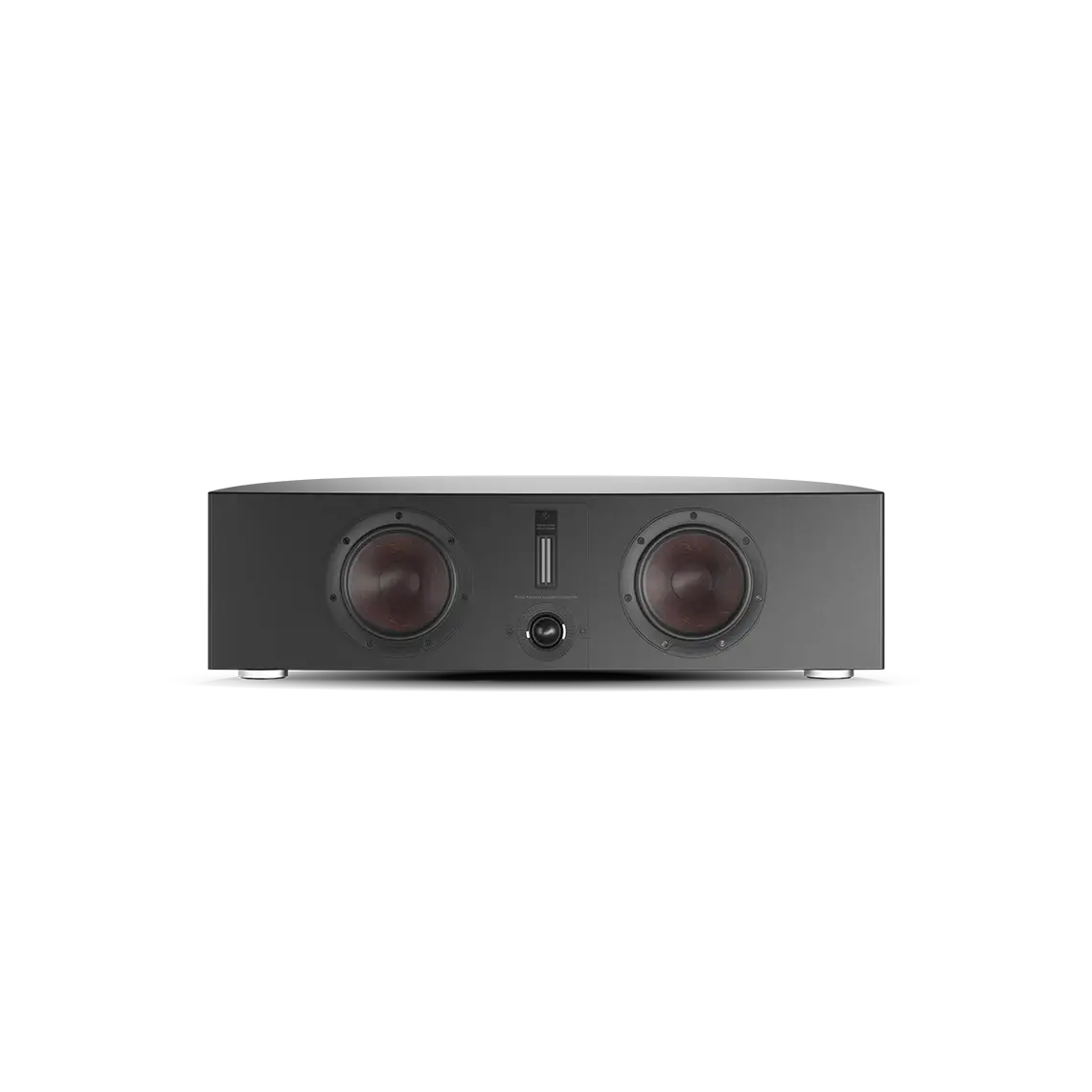

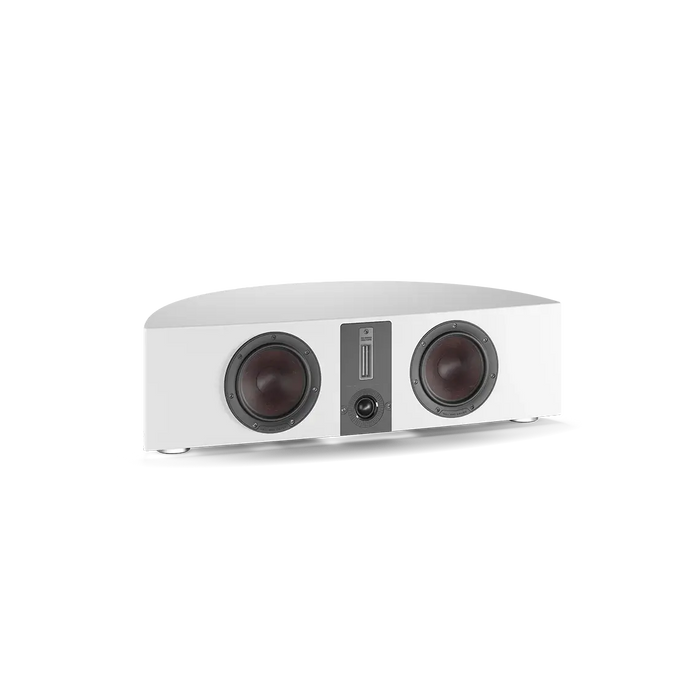

We have developed an uncompromising center speaker for all of you multi-channel fans - the DALI EPICON VOKAL. Incorporating 2 x 6 woofers along with the hybrid tweeter module this speaker promises the same level of transparency and timbre matching with the rest of the series.
The EPICON VOKAL will match any of the three main loudspeakers, and it will benefit any setup where the realism and realistic sound pressures are required. Common to all the EPICON loudspeakers is that they work well in both 2.0, 2.1, 5.1 or other multichannel systems.
50% of the acoustic energy in a normal movie comes from the center channel. The EPICON VOKAL is up to the real challenge. Meticulous timbre matching and the same ability to render finer details exactly the way they were recorded is an EPICON trademark. Here, e.g. the effortless reproduction of human voices is what sets DALI EPICON VOKAL apart.
Note: To mount the EPICON VOKAL securely on the EPICON Stand, the VOKAL should be fastened with the included bolts.
SMC
For years designing magnet systems has been a DALI specialty. For the EPICON VOKAL we decided to challenge the highest market standards and to take magnet system design further than ever before in order to reduce distortion generated from less than perfect magnet systems.
The answer turned out to be a Soft Magnetic Compound (SMC) material which offers exactly the right physical properties: Very high magnetic conductivity and very low electrical conductivity (approx. 1/10.000 s of iron). The result is a dramatic reduction in distortion caused by mechanical loss in the magnet system.
The high magnetic conductivity is instrumental in more or less eliminating the frequency depended effect of hysteresis. The electrical non-conductive nature of the SMC material eliminates the induction of modulating magnet fields in the magnet gab and significantly lowers the eddy current on the pole piece caused by the movement of the voice coil.
The resulting reduction of distortion is both very clearly measurable and indeed audible.
WOOFER
With the background of in-depth loudspeaker driver design for years, and having engineers with loudspeaker drivers manufacturing experience in-house, DALI started up the process of establishing in-house production of drivers in 2009. Today we are proud to present the result: DALI EPICON VOKAL woofers are not only developed - but also manufactured at the DALI headquarters in Denmark.
At DALI we believe in designs based on low mechanical loss. Actually we were among the first to insist on controlling the frequency response by carefully balanced designs. We want the amplifier voltage and current to be the factor to control the frequency response by carefully balanced designs.
The wood fibre technology has proven to be a key in reproducing the finest details and dynamics in the music with very low loss of information. Wood fibres add stiffness to very light paper cone membranes, ensuring non-uniform break-up characteristics within the material. The result is a structural stiffness showing top-class behaviour.
The wood fibre cone terminates in a low-loss rubber surround that is fitted to a die cast aluminium chassis. Assembly of the cone, surround, voice coil and chassis is done in highly accurate tools for the maximum alignment accuracy.
CABINET
Working both as an acoustic tuned spring for the drivers, as well as getting rid of reaction force (resonant) energy, the cabinet is an important part of the entire speaker system.
A rigid construction is necessary to optimize the working environment for both woofers and tweeter. The front baffle, sides and top of the EPICON VOKAL are heated in a process that allows us to press it into an organic shape. This design increases overall rigidity and severely reduces cabinet resonances. Furthermore standing waves are practically eliminated as there are no parallel surfaces reflecting sound waves.
With a thickness of 33 mm the dual-layer front baffle ensures that energy from the drivers is radiated as acoustic energy, and not as vibrations in the cabinet. The curved shape of the front baffle is also a contributing factor in ensuring a stable acoustic platform.
At the very bottom of the cabinet, you will see that the hardwired crossover is mounted in its own enclosure - free from the dynamic variation of cabinet pressure inside the bass reflex enclosures.

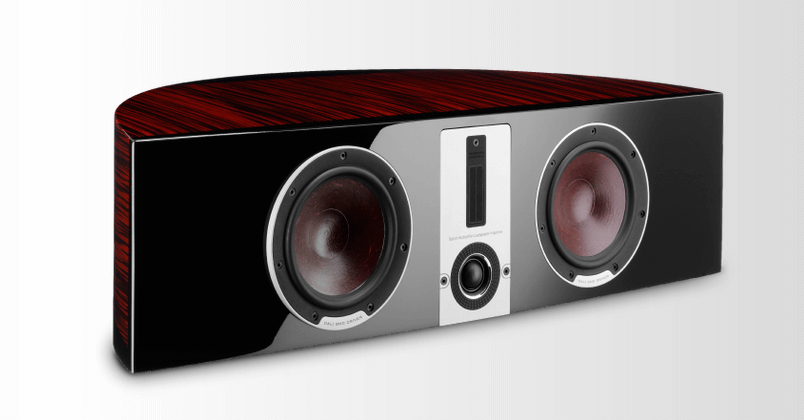

The finish of the cabinet is real wood veneer which is lacquered for a total of 10 times. And in between, each layer is hand polished to ensure a deep, high gloss and elegant surface. 10 times of lacquer also ensures a sturdy finish with a thickness of almost 2 mm. That means that the entire CNC cutting for drivers, ports and terminals is done after the paint process to ensure perfect fit.
HYBRID TWEETER
For a transparent and solid rendering of even the most subtle high frequency details the finest DALI hybrid tweeter module is employed in the EPICON VOKAL. The module consists of a newly developed 29 mm ultra lightweight dome tweeter and a 10 x 55 mm ribbon tweeter. Working in unison, the soft dome tweeter and the ribbon tweeter form the ideal high frequency solution. Combining the advantages of each tweeter s unique properties is a technology which DALI has spent years in perfecting.
Low resonance frequency, high power handling, and exceptional headroom for high sound pressure levels and extreme excursions are all characteristics of the oversized soft dome tweeter. Incorporating an ultra-thin magnetic fluid for cooling, the fluid has a very high flux saturation point for greater power handling. This also means superb control of coil movement even at very high sound pressure levels.
The ribbon tweeter features a broad frequency band and superb dispersion in the higher frequencies. Gently rolled in above 10 kHz, the ribbon reaches full contribution from 15 kHz to well beyond 30 kHz, far above the audible range.
Both the soft dome and the ribbon tweeter are free of artefacts, e.g. resonances and high Q peaks within their working range. The Hybrid Tweeter Module features an extremely smooth and wide horizontal dispersion one of our sound design trademarks. Even the detailing of the faceplate of the tweeter module is designed for optimal horizontal dispersion.
Specs
Product series EPICON
Frequency Range (+/-3 dB) [Hz] 49 - 30,000
Sensitivity (2,83 V/1 m) [dB] 89.5
Nominal Impedance [ohms] 6
Maximum SPL [dB] 111
Recommended Amplifier Power [W] 50 - 300
Crossover Frequency [Hz] 2,750 / 15,000
Hybrid tweeter module, Super high freq. driver, Quantity 1 x 10 x 55 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 2 X 6 "
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 46.5

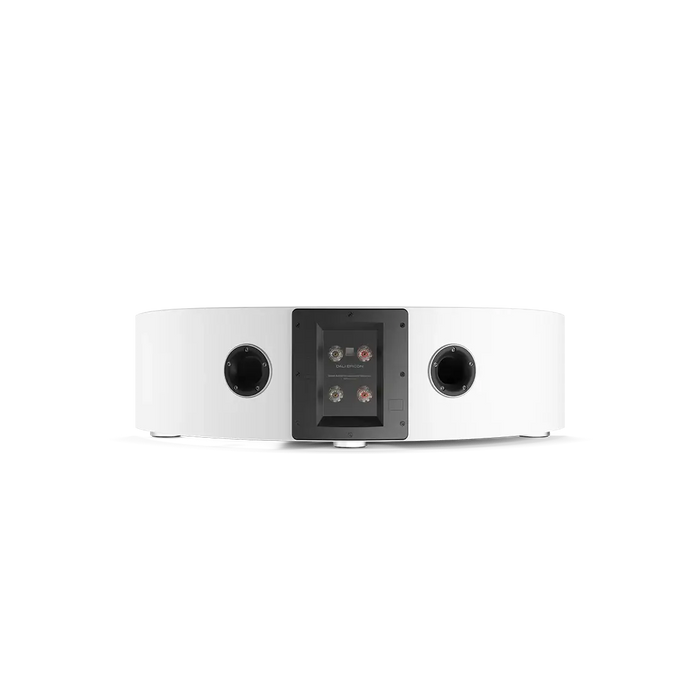

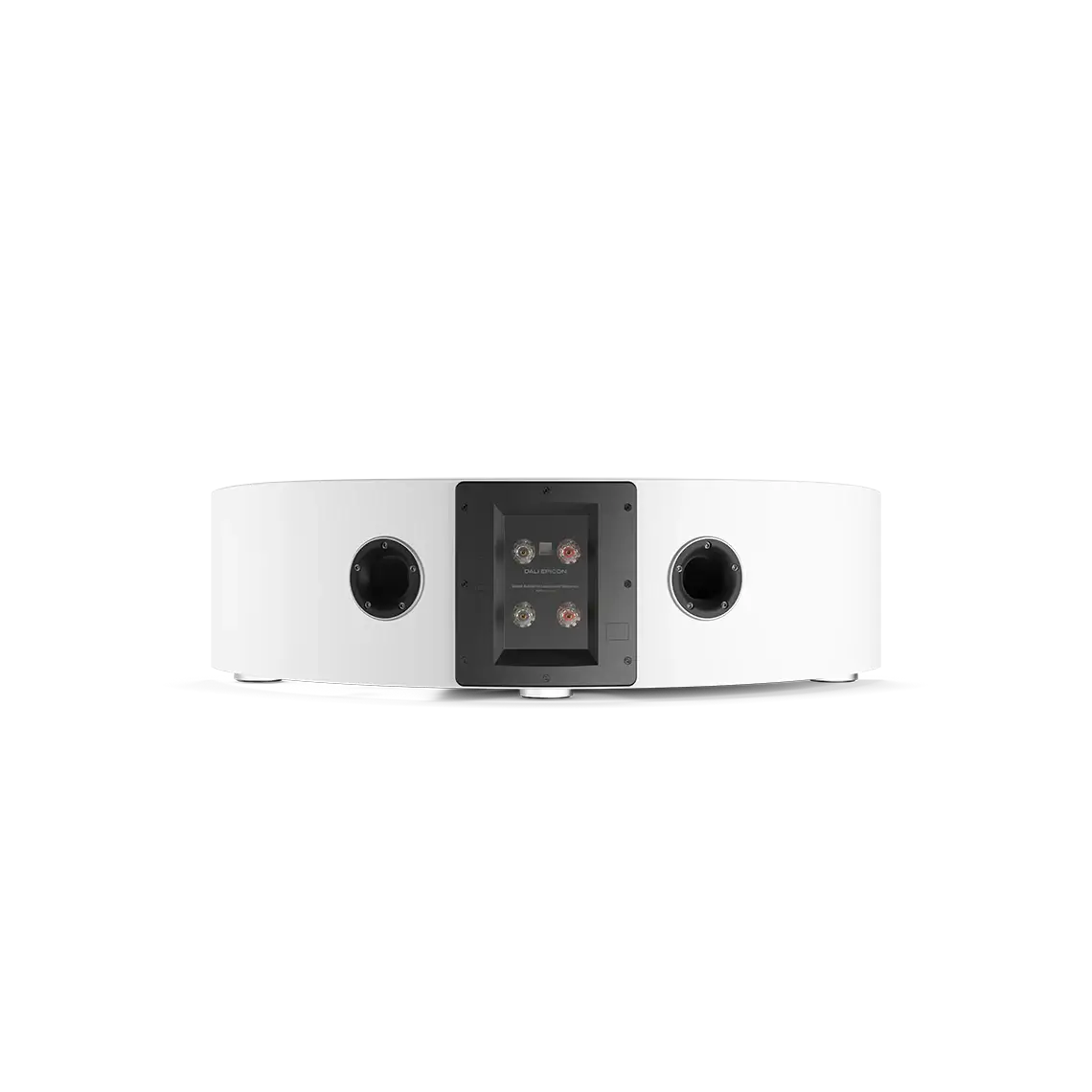

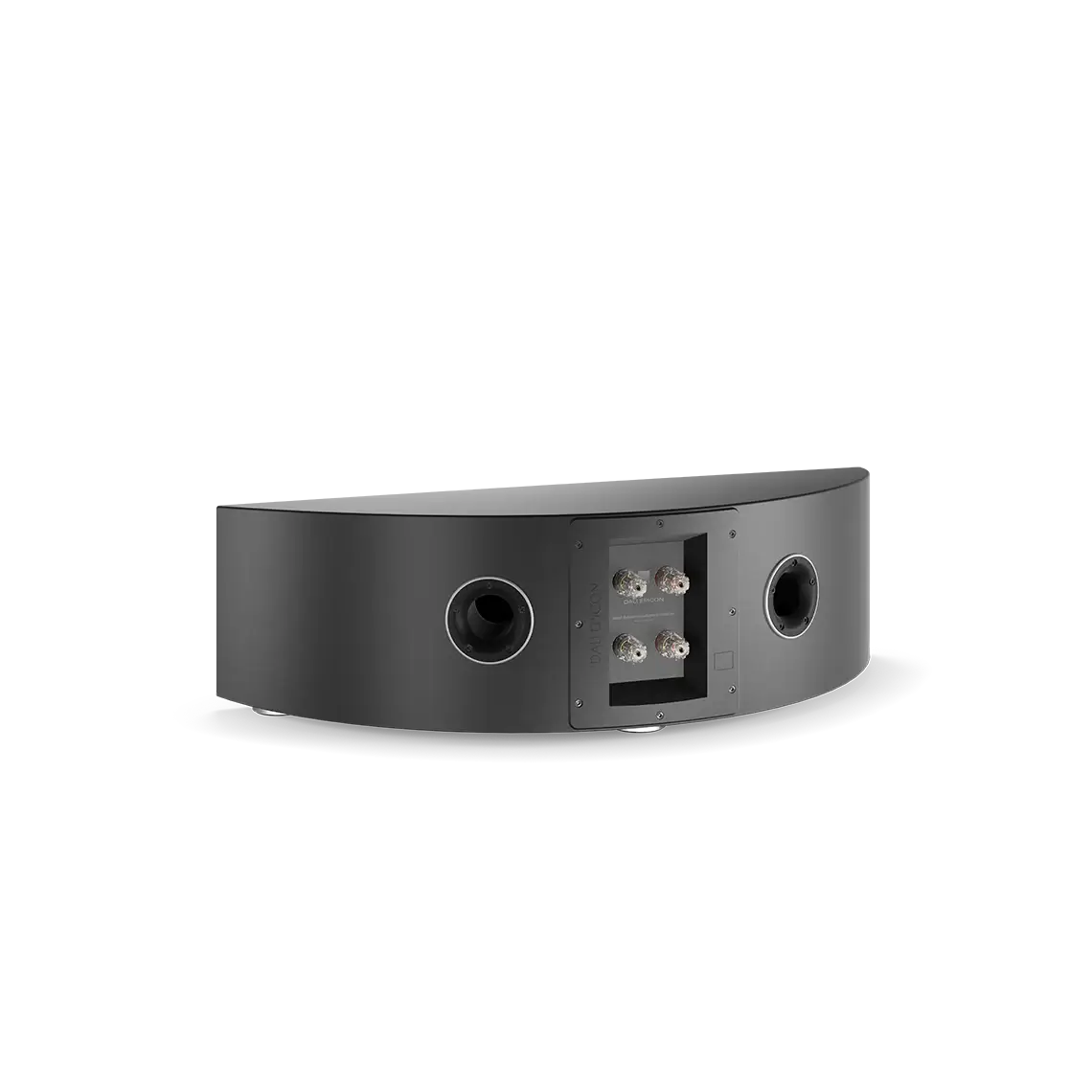

Connection Input Bi-Amping (INT)
Magnetic Shielding No
Recommended Placement Centre / Soundbar
Shelf or stand
Recommended Distance From Wall [cm] > 5
Dimensions With Base (HxWxD) [mm] 247 x 816 x 349
Accessories Included Connectors
Damper Feet
Manual
Micro Fibre Cloth
Weight [kg] 18.4
