ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.
ASW610
Highly capable in a hi-fi or home theater set-up
Fill the room with bass, not speakers
ASW610 is compact, making it a subwoofer you can squeeze in anywhere. Or maybe use two for more bass control?
Sealed tight
ASW610's sealed enclosure keeps the bass good and tight (and exciting!).
Features
Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description
Active closed-box subwoofer system

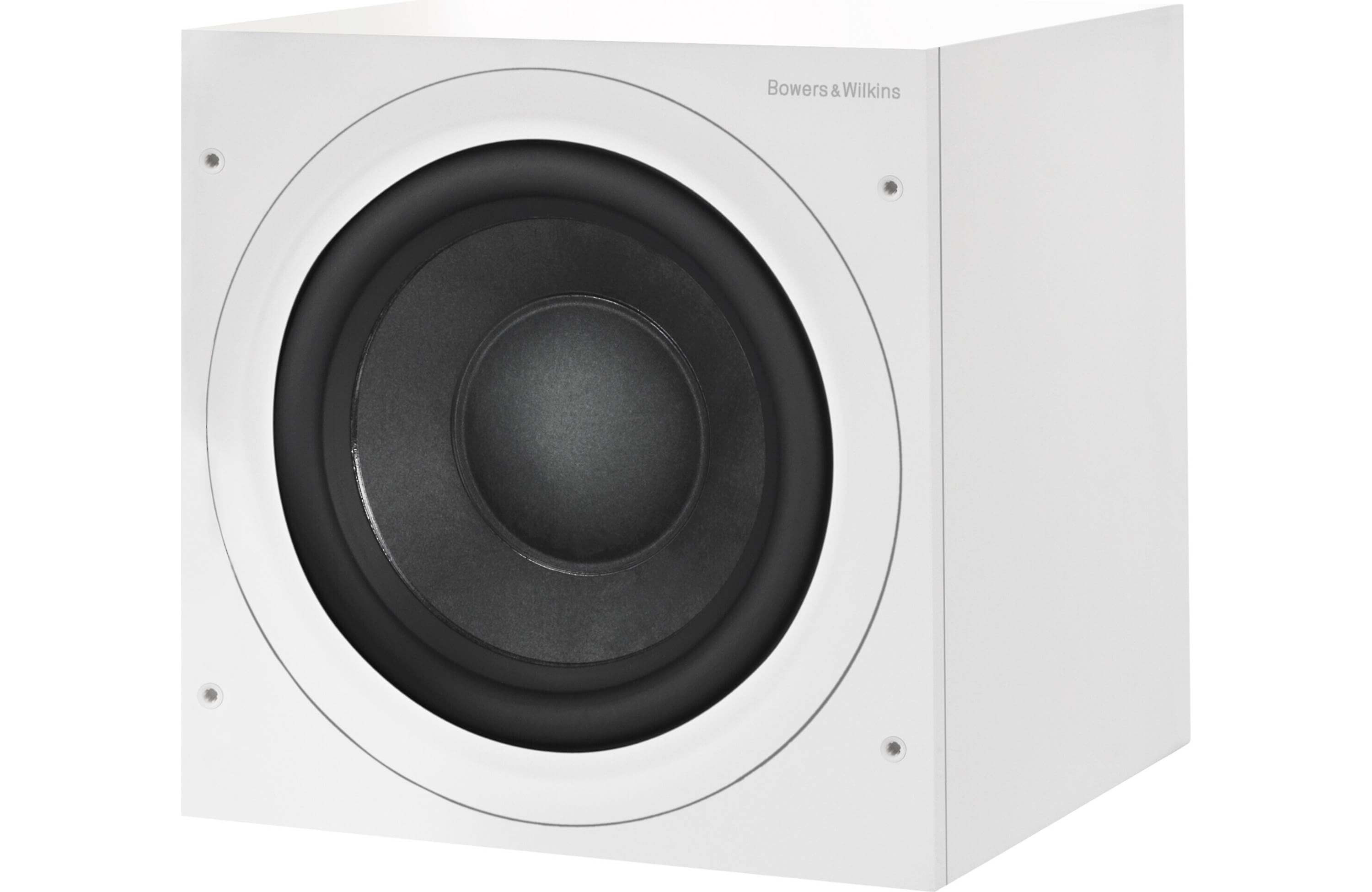

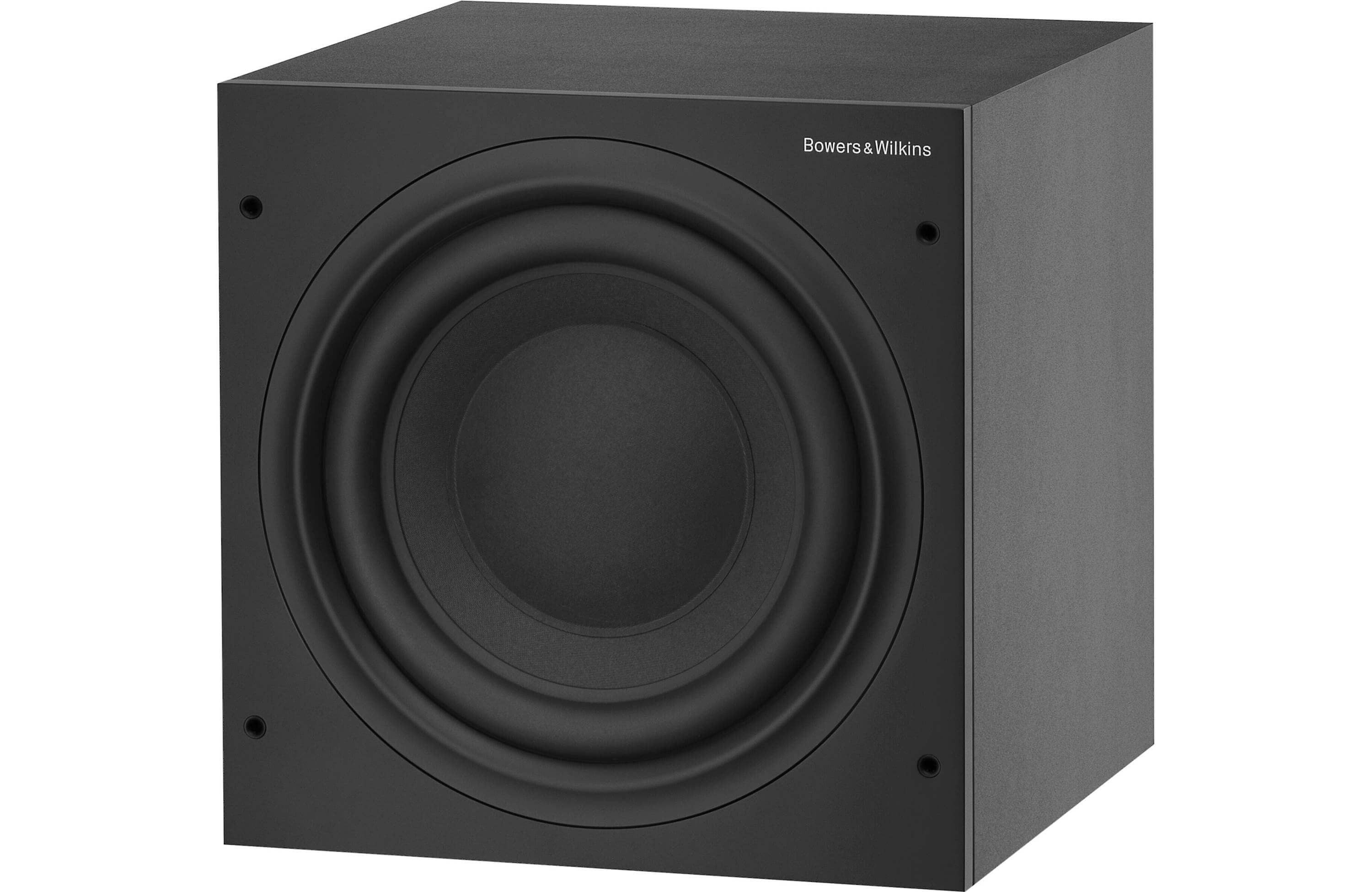

Drive unit
ø250mm (10 in) paper / Aramid fiber cone long-throw
Frequency range
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
Power output
200W
Rated power consumption
40W / 0.5W standby
Input impedance
33kΩ
Signal / noise
>90dB

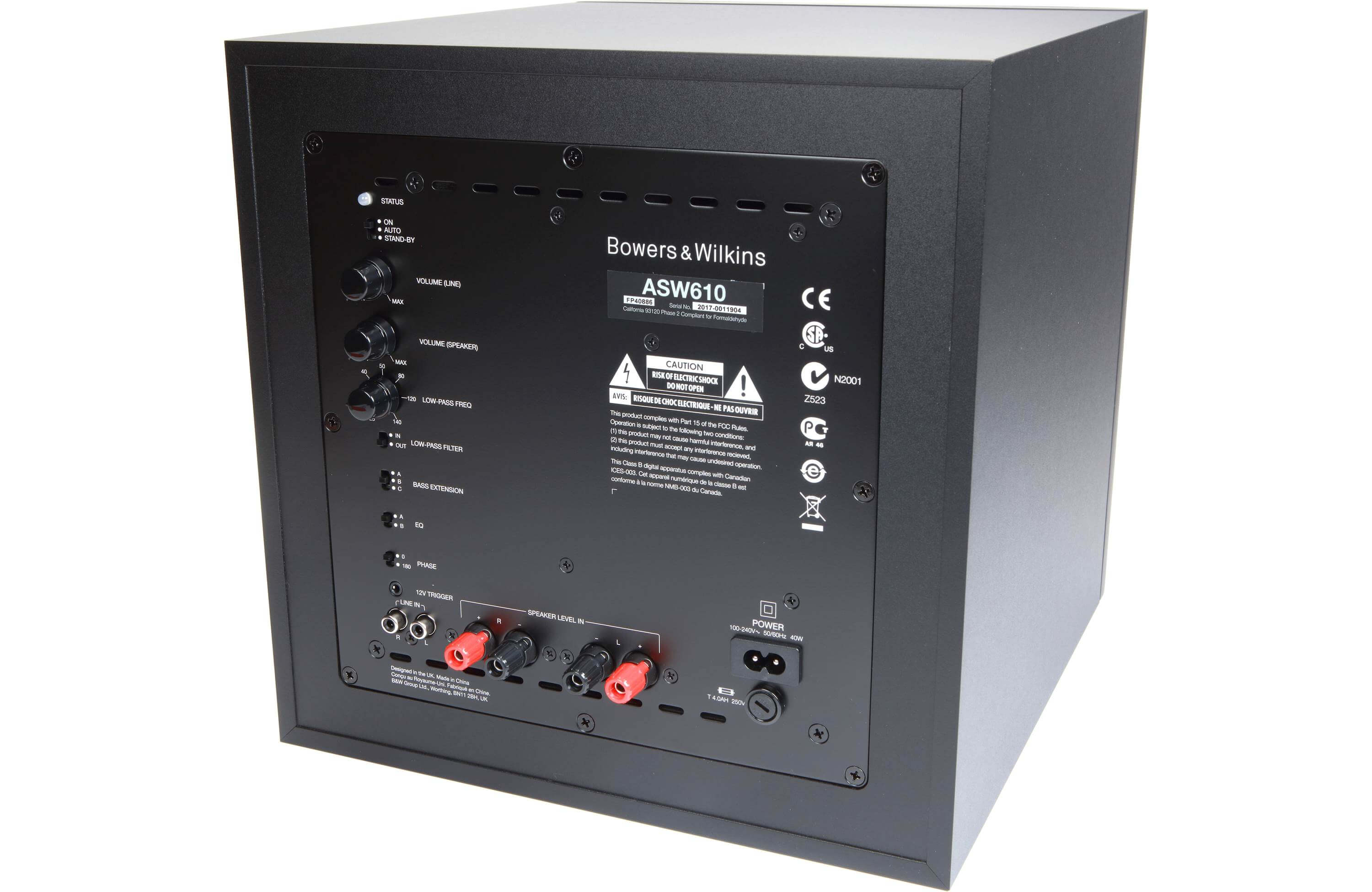

Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions
Height: 310mm (12.2 in) not including feet or spikes
322mm (12.7in) including feet
338mm (13.3in) including spikes
Width: 310mm (12.2 in)
Depth: 347mm (13.66in) not including grilles
375mm (14.8 in) including grilles and controls
Net weight
12.5kg (27.6 lb)
Cabinet finishes
Black
White
Grille finishes
Black
Grey
