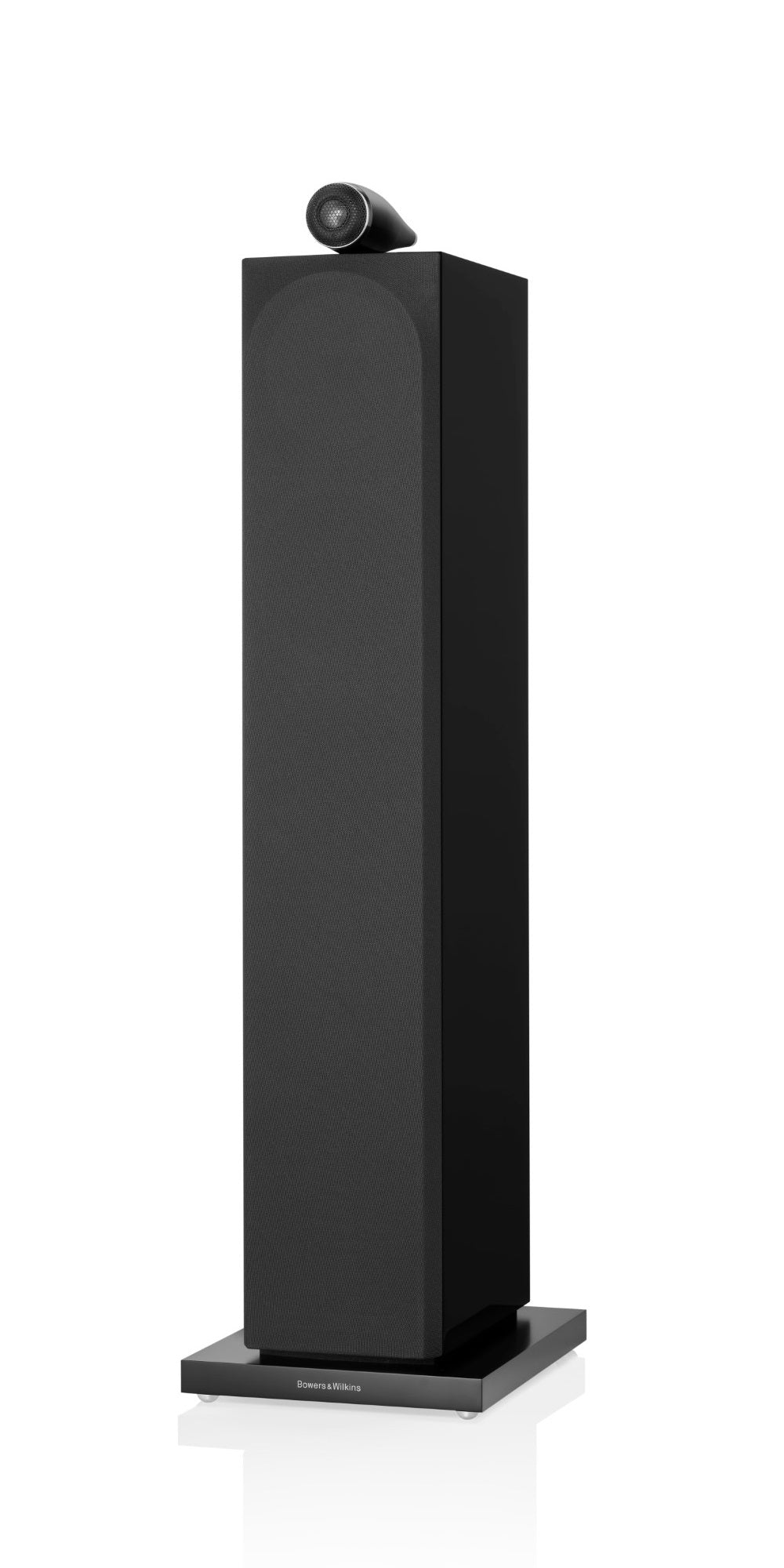

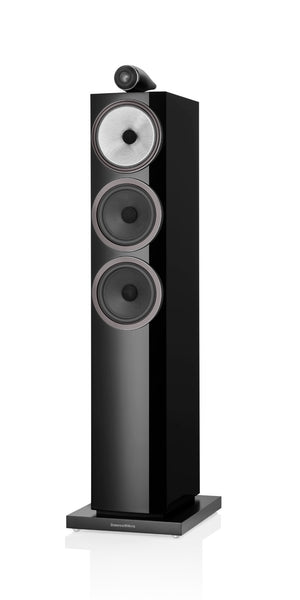

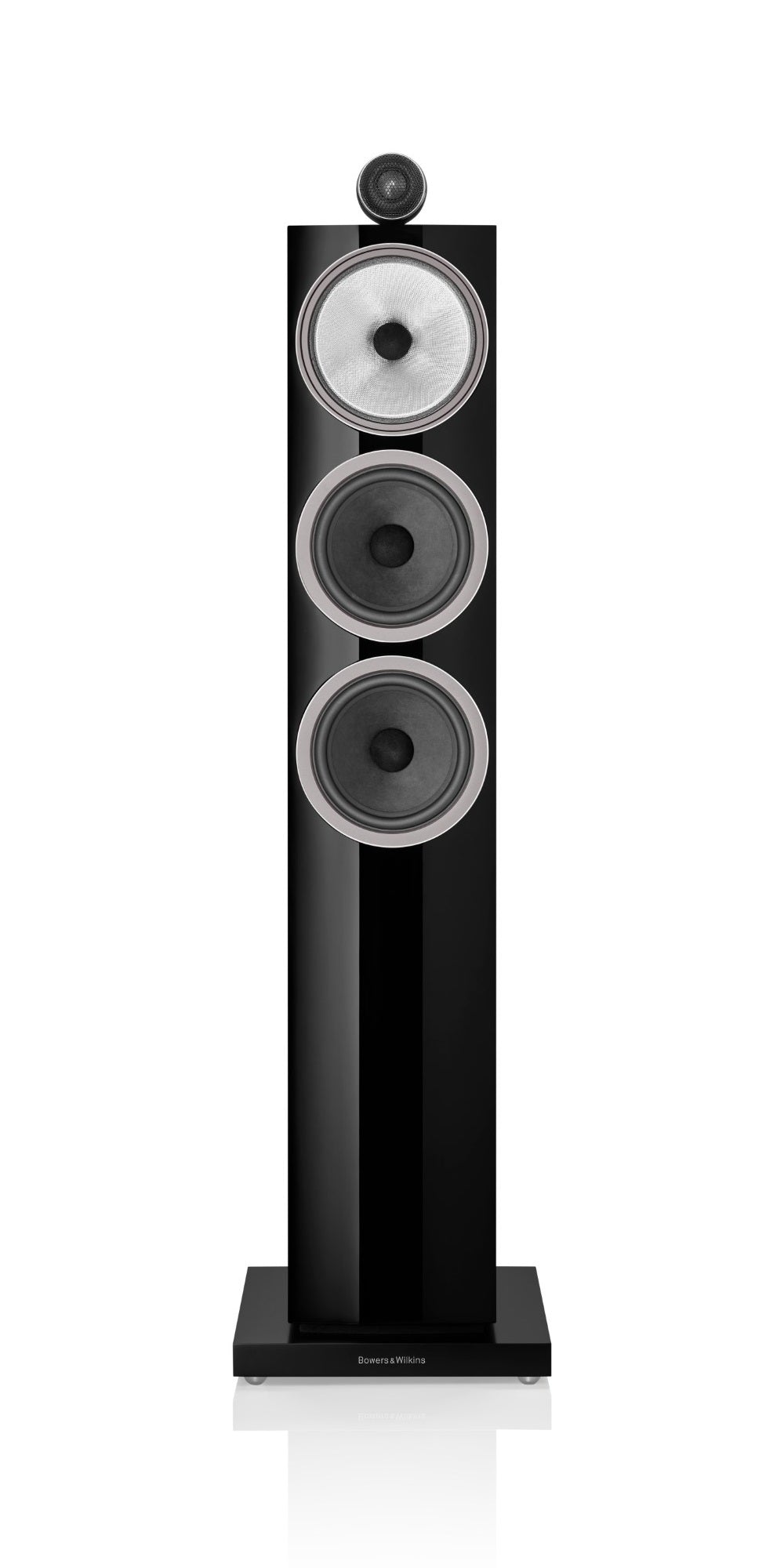

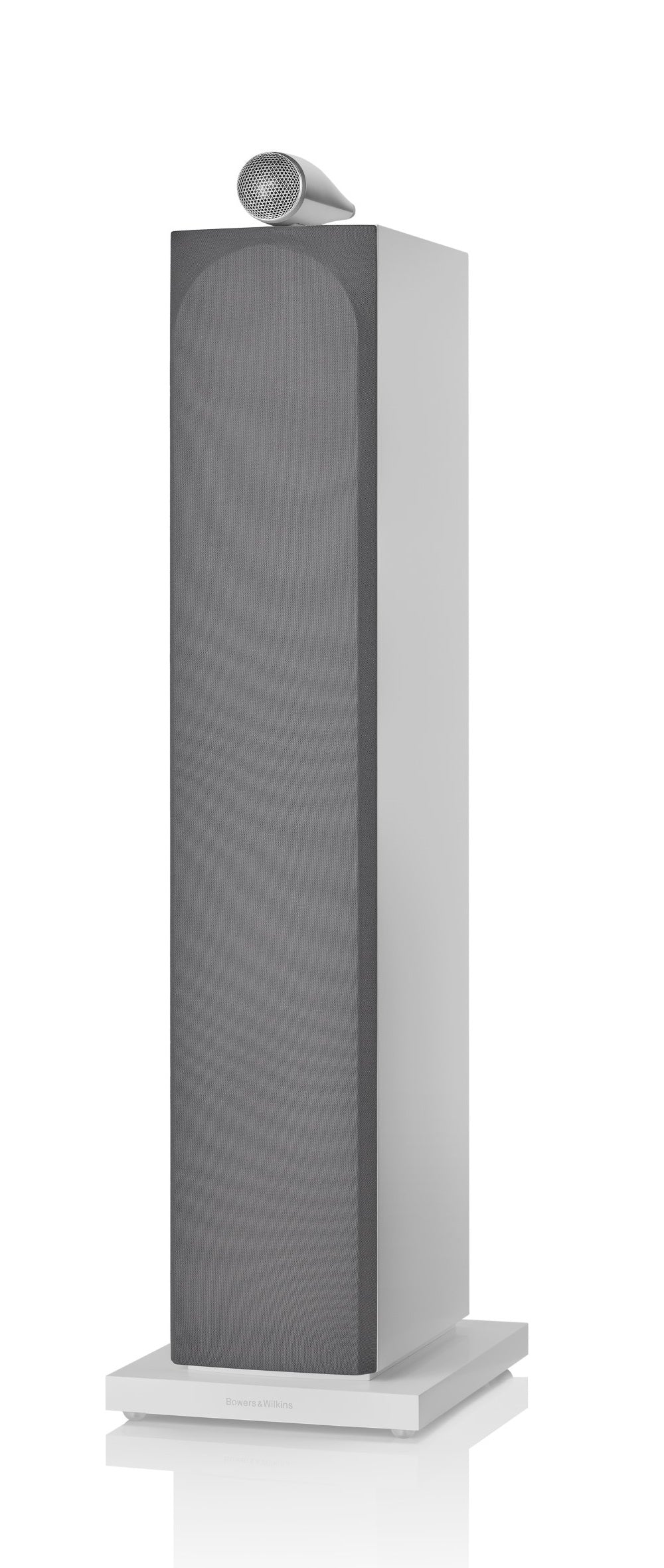

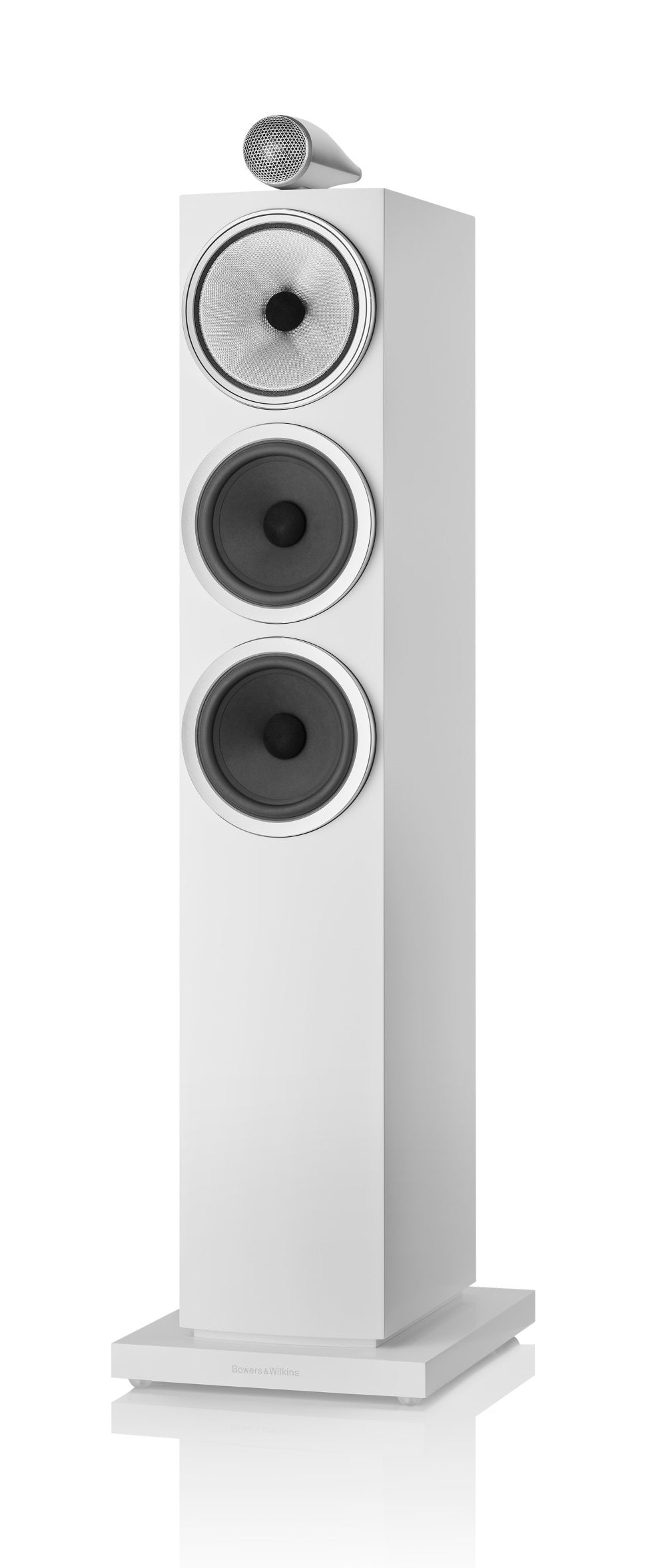

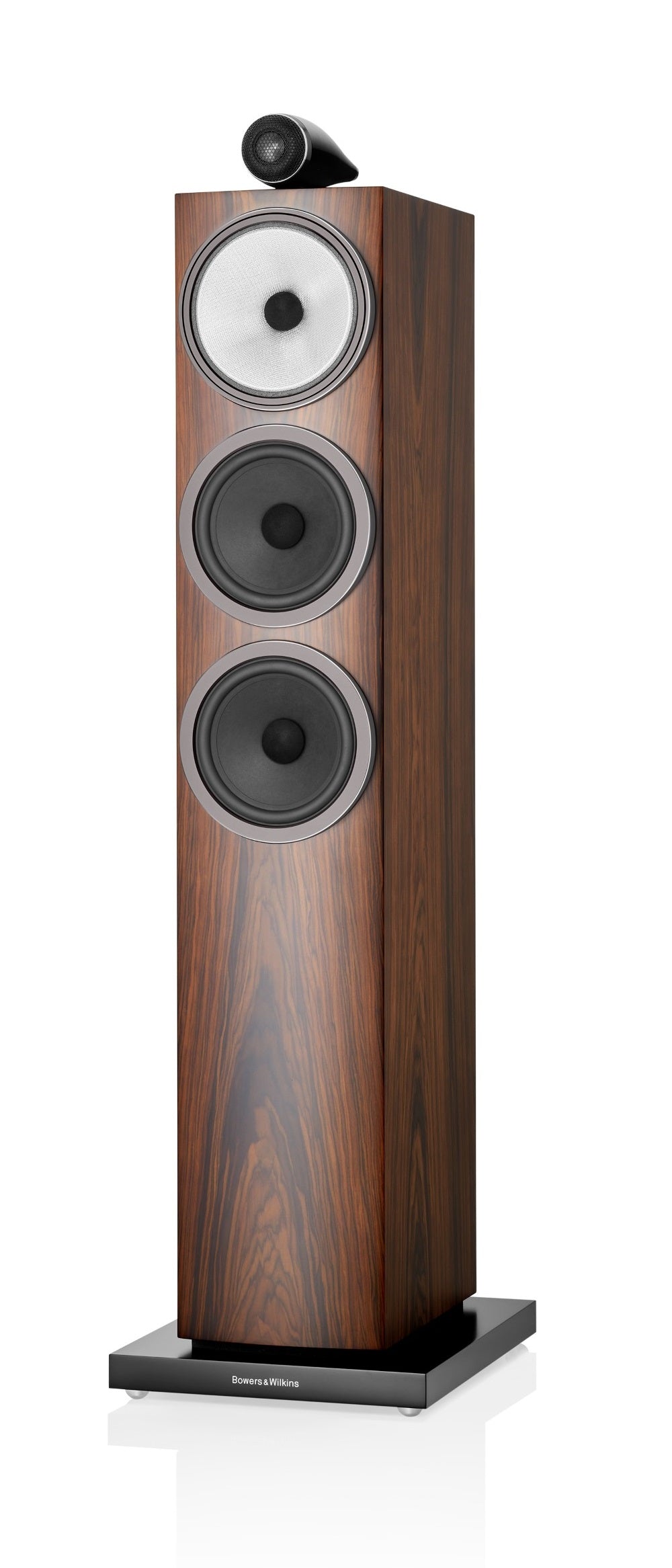

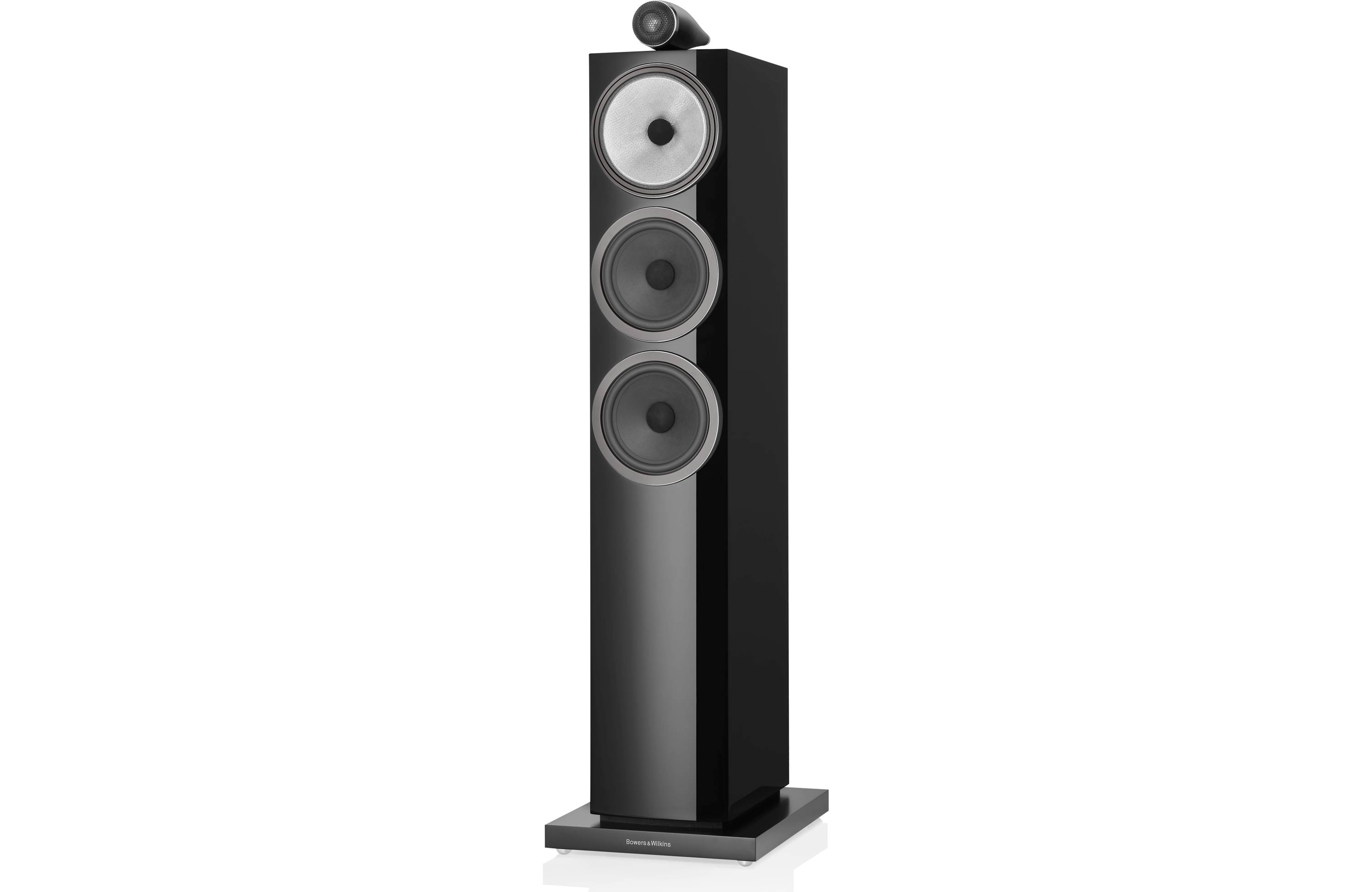

The new 703 S3 now features our iconic Tweeter-on-Top configuration for the first time, alongside a decoupled FST™ Continuum cone midrange driver – enhanced by the addition of our revolutionary new Biomimetic Suspension – and twin Aerofoil Profile bass drivers.

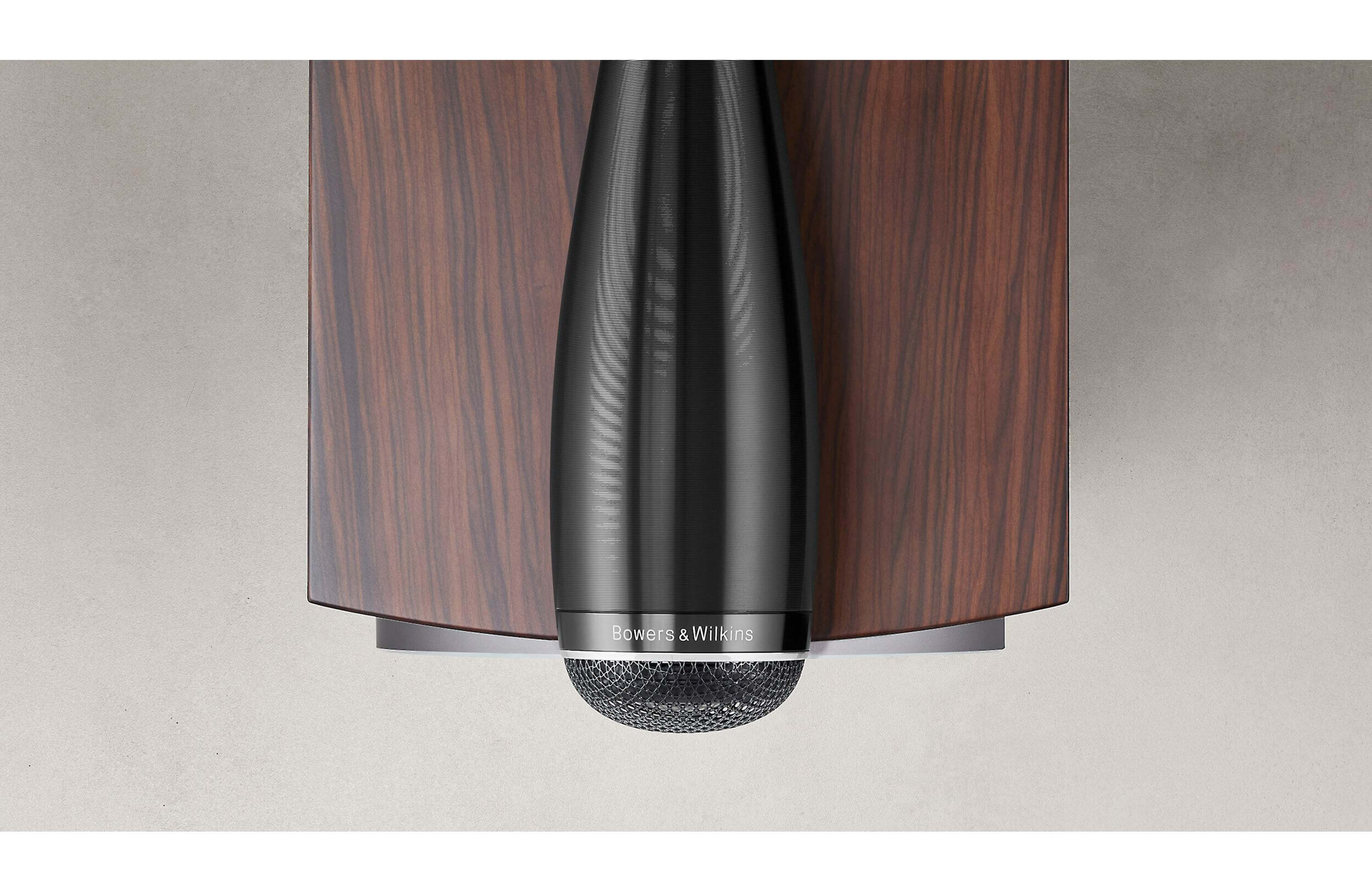

A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Dimensions & weight
Height (inches) 44-7/16
Width (inches) 11-7/16
Depth (inches) 14-5/8
Weight 63.5 lbs
Technical details
Technical features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones

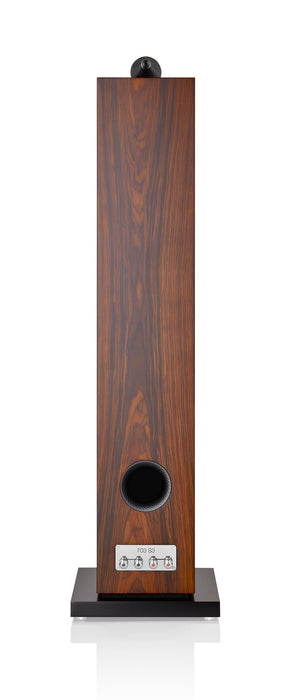

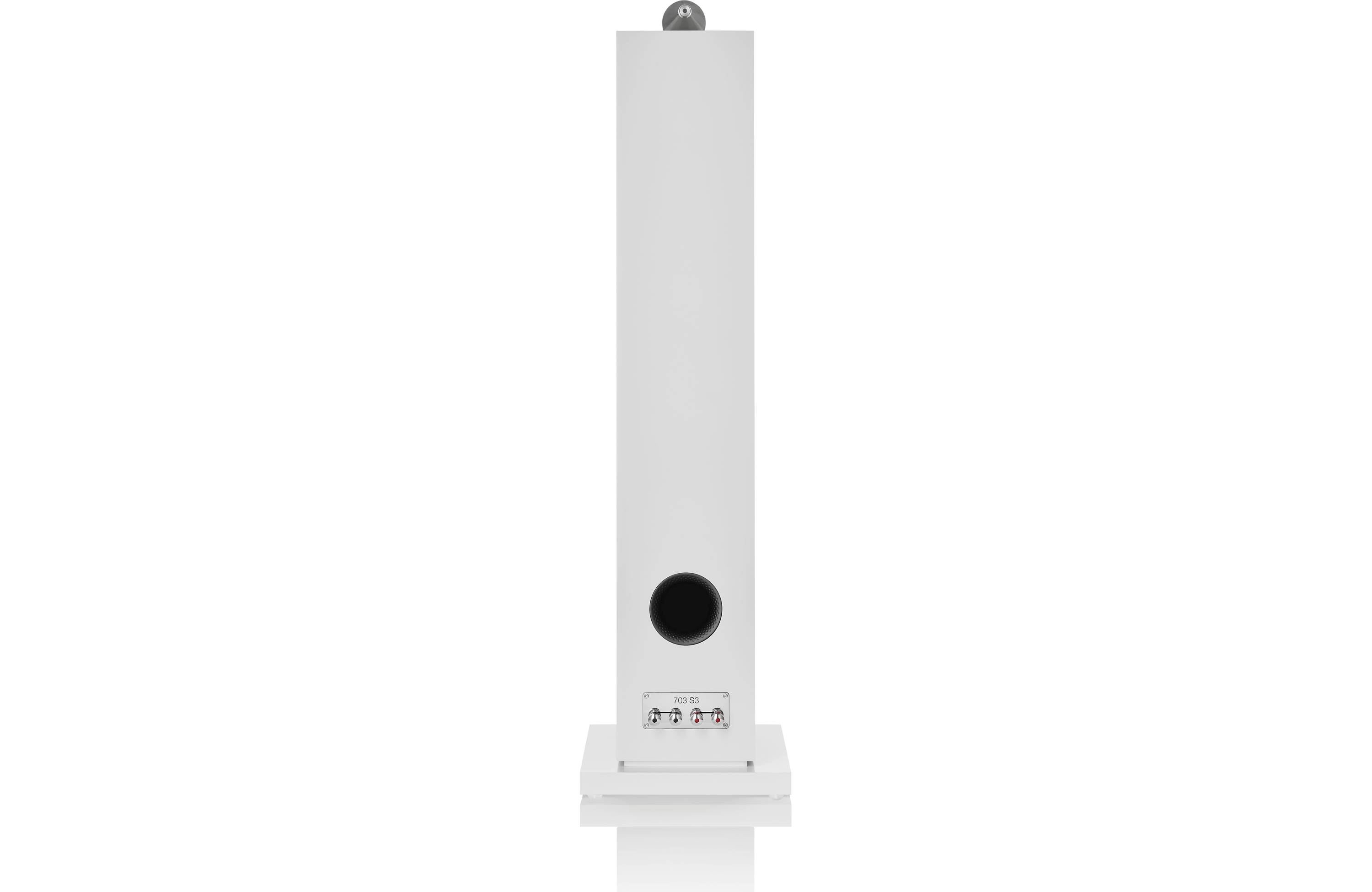

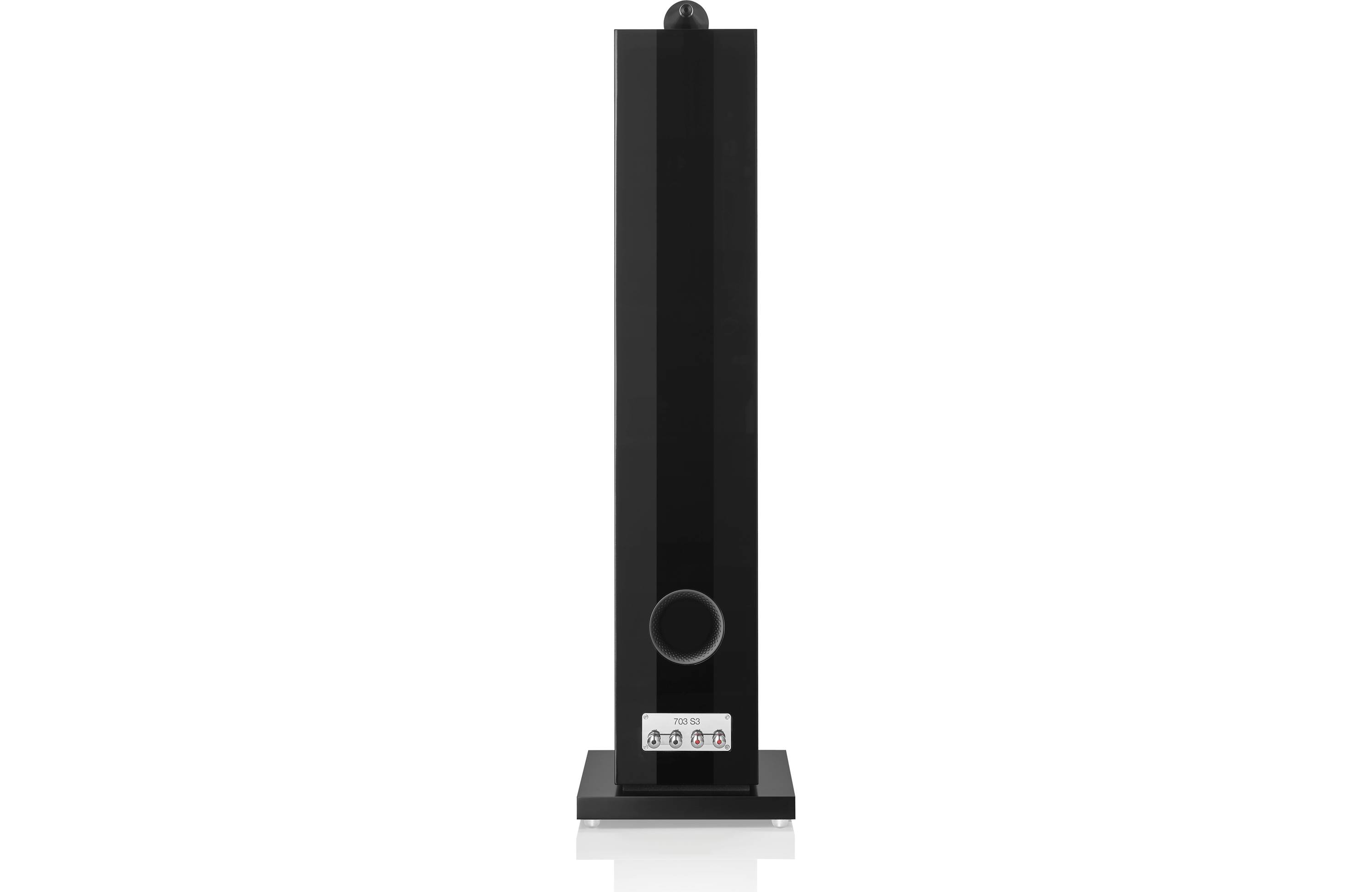

Flowport™
Max recommended cable impedance
0.1Ω
Description
3-way vented-box system
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
30Hz to 33kHz
Frequency response
46Hz - 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W - 200W into 8Ω on unclipped programme
Finishes
Cabinet finishes

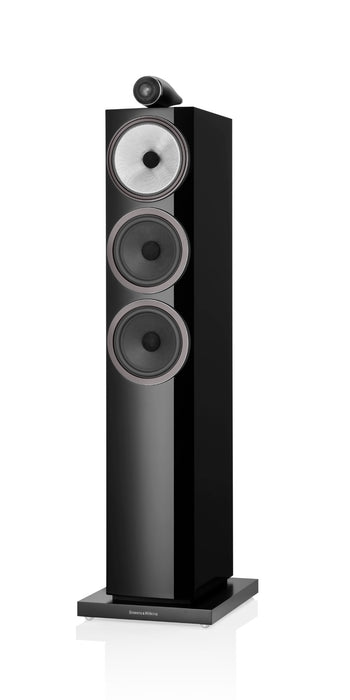

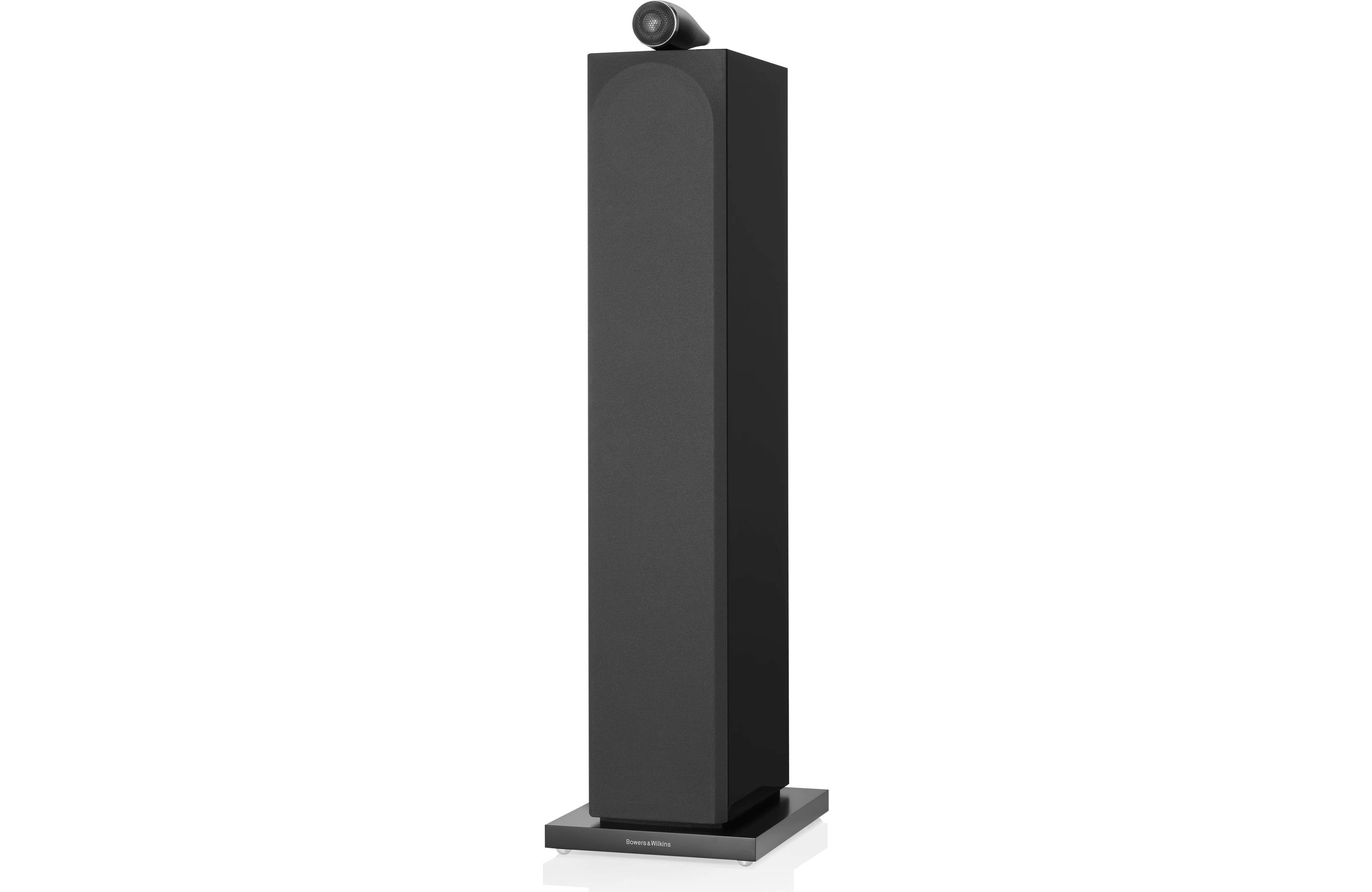

Gloss Black

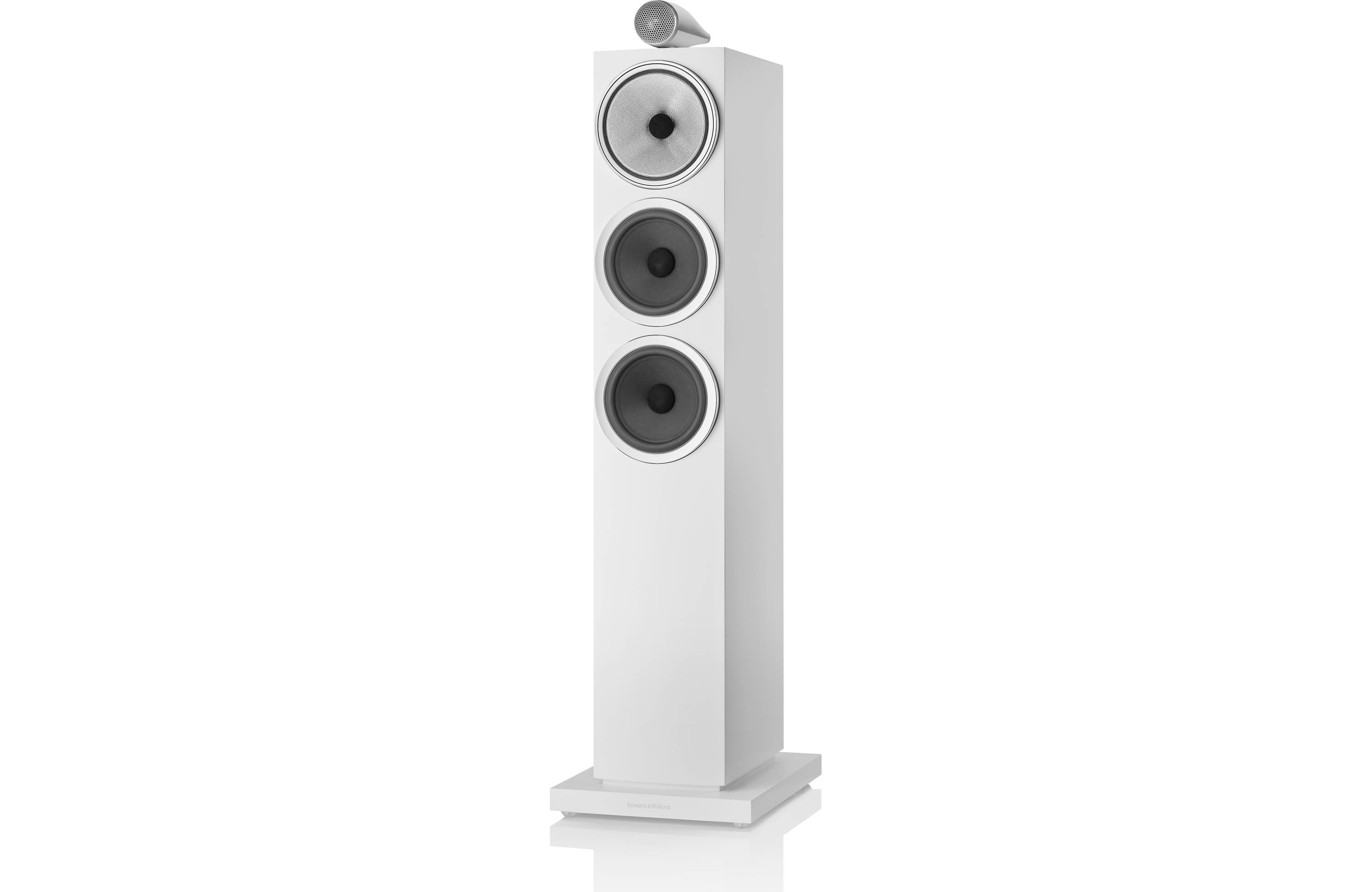

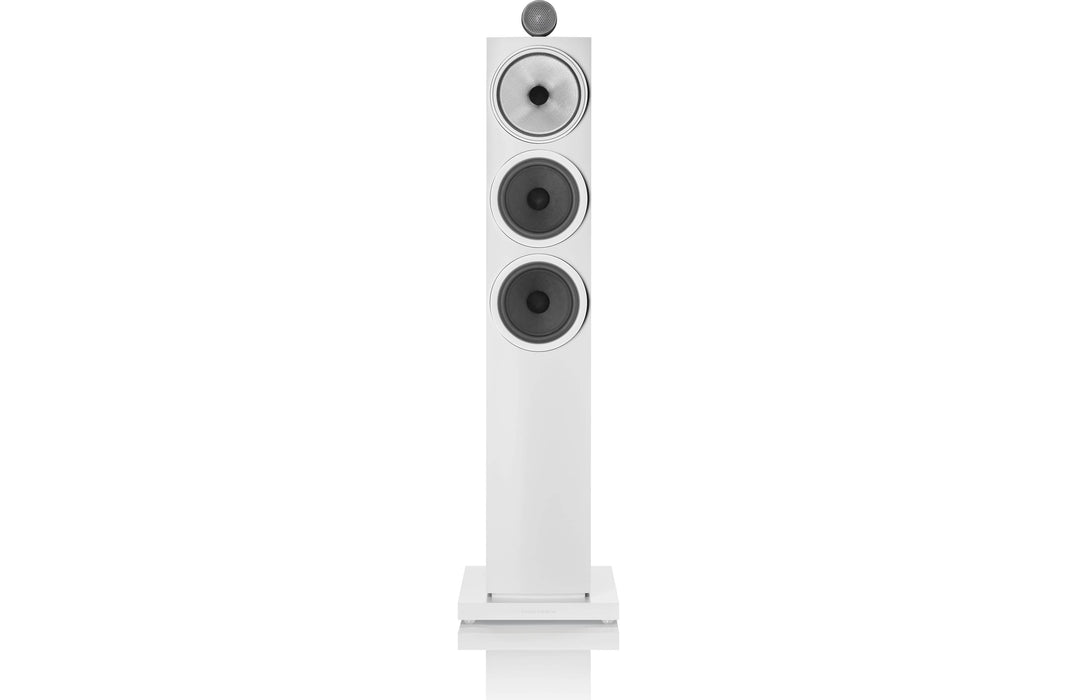

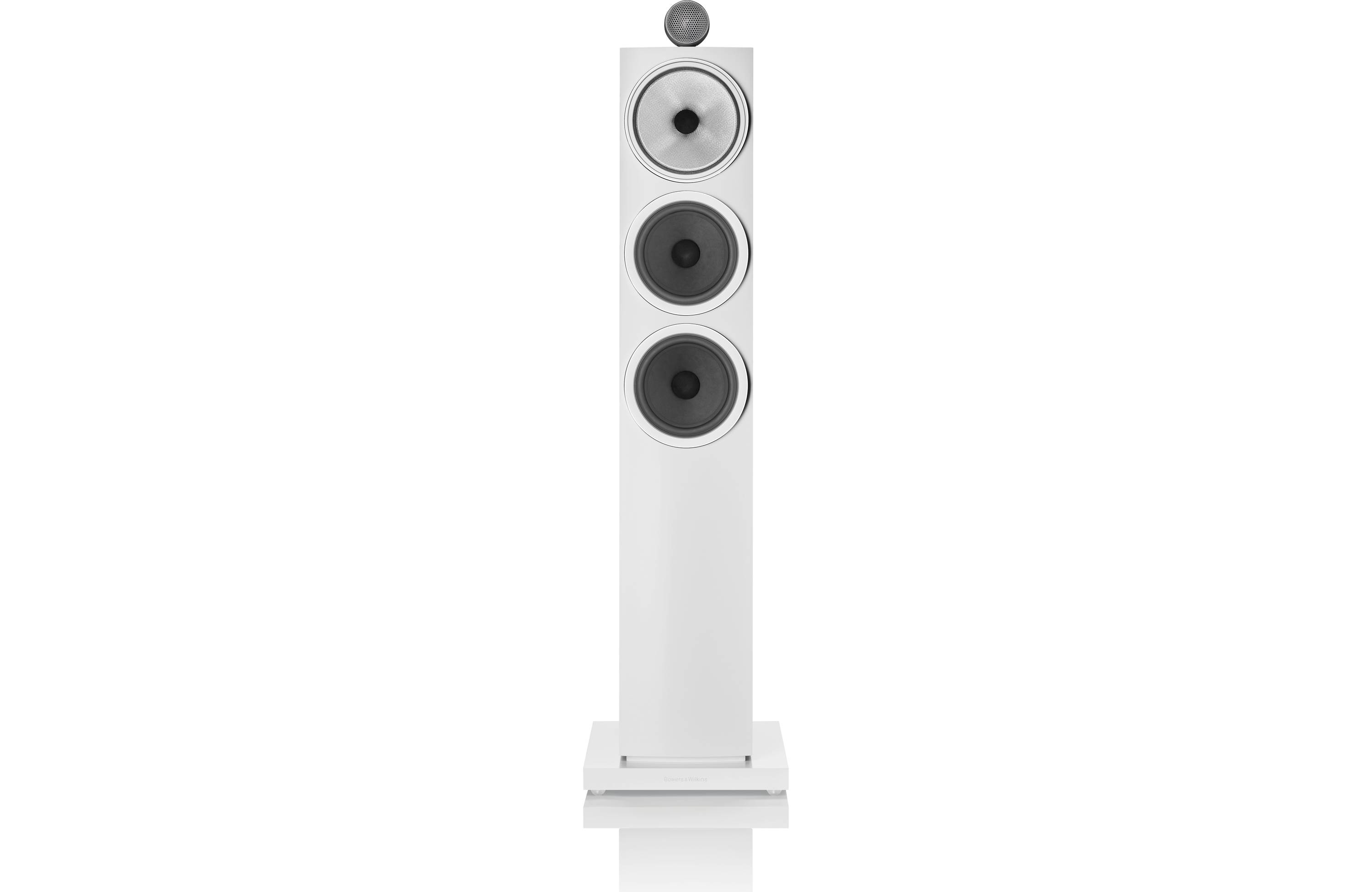

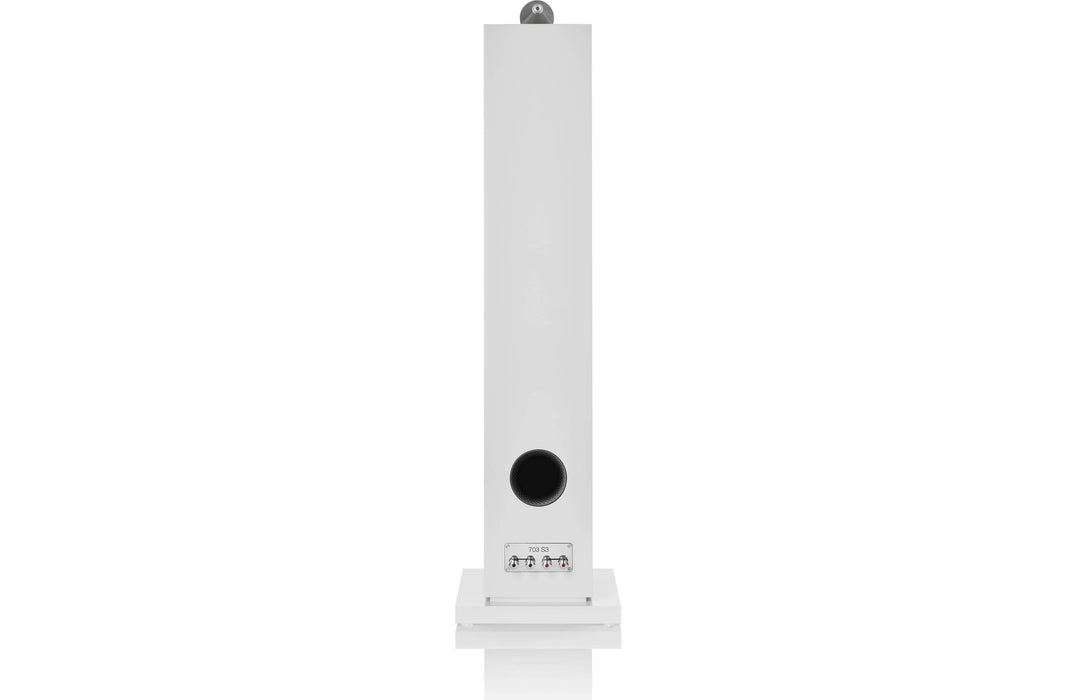

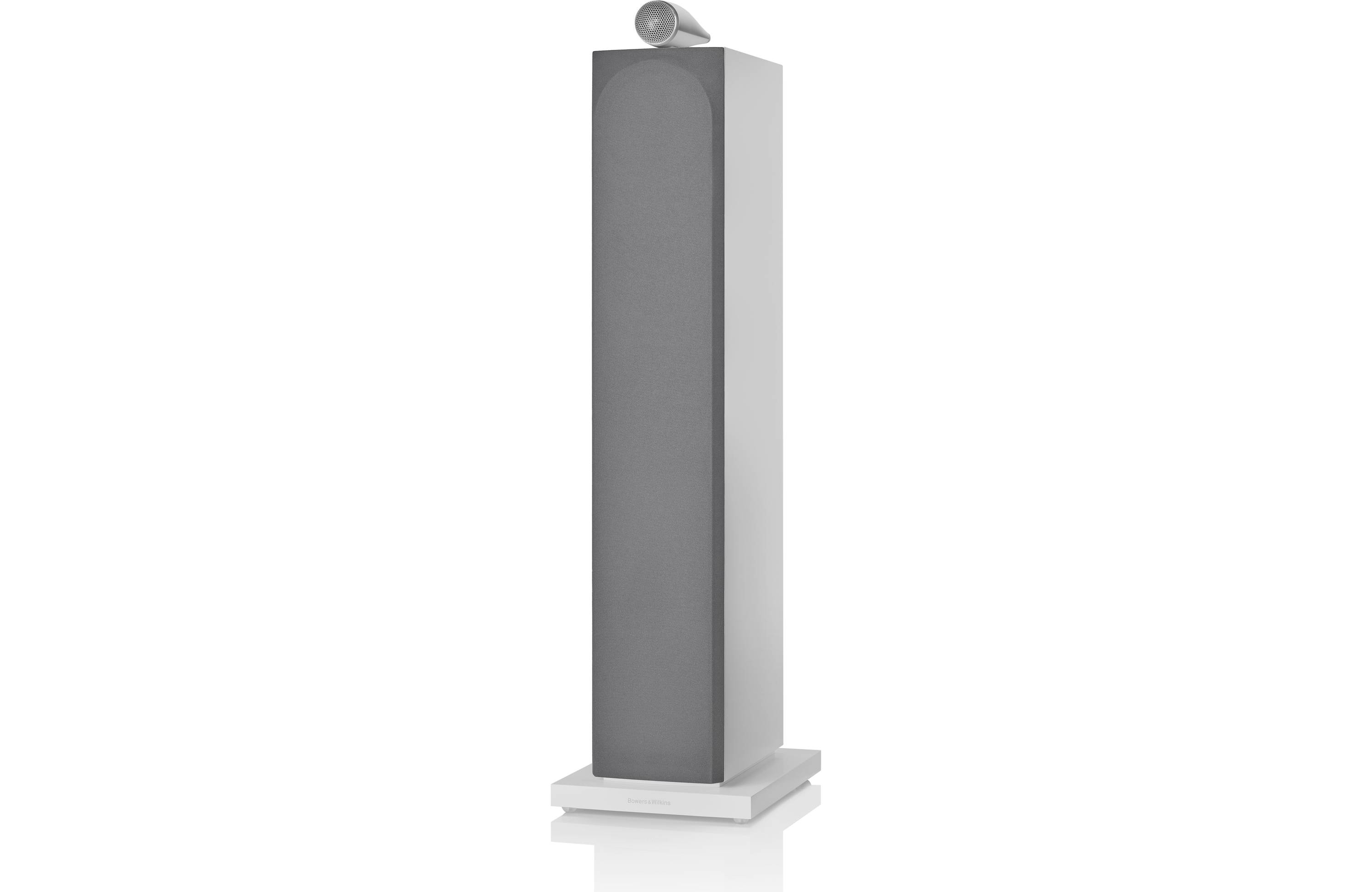

Satin White

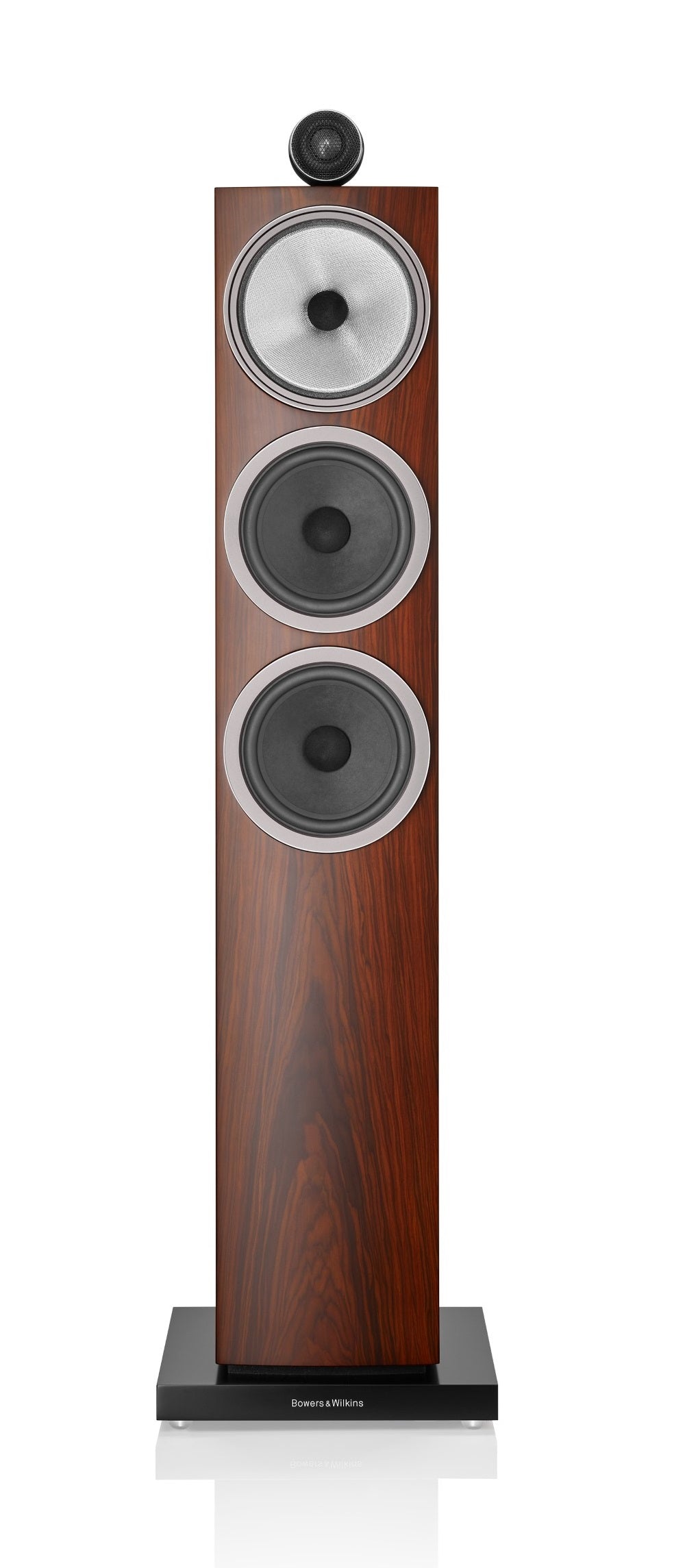

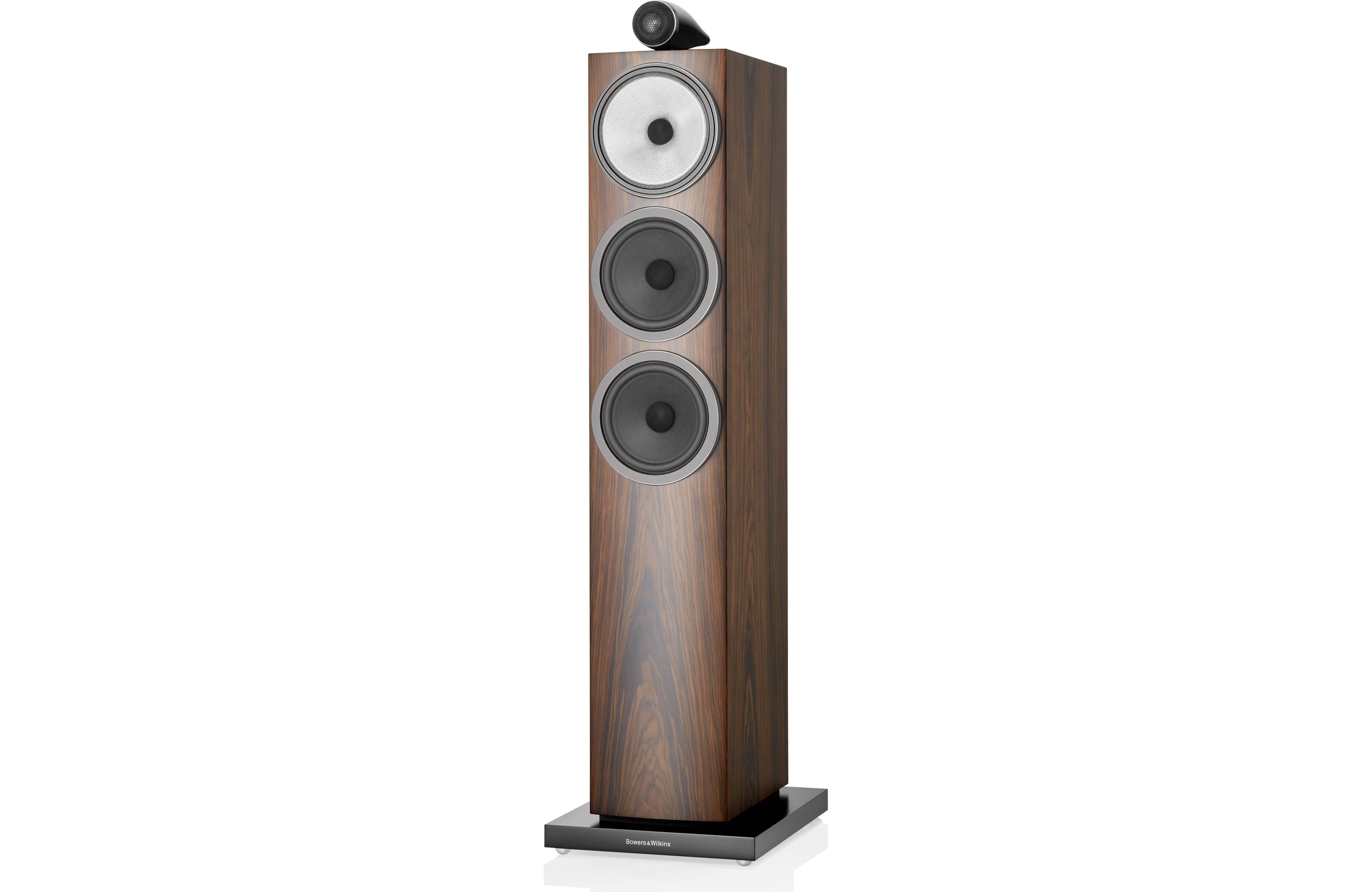

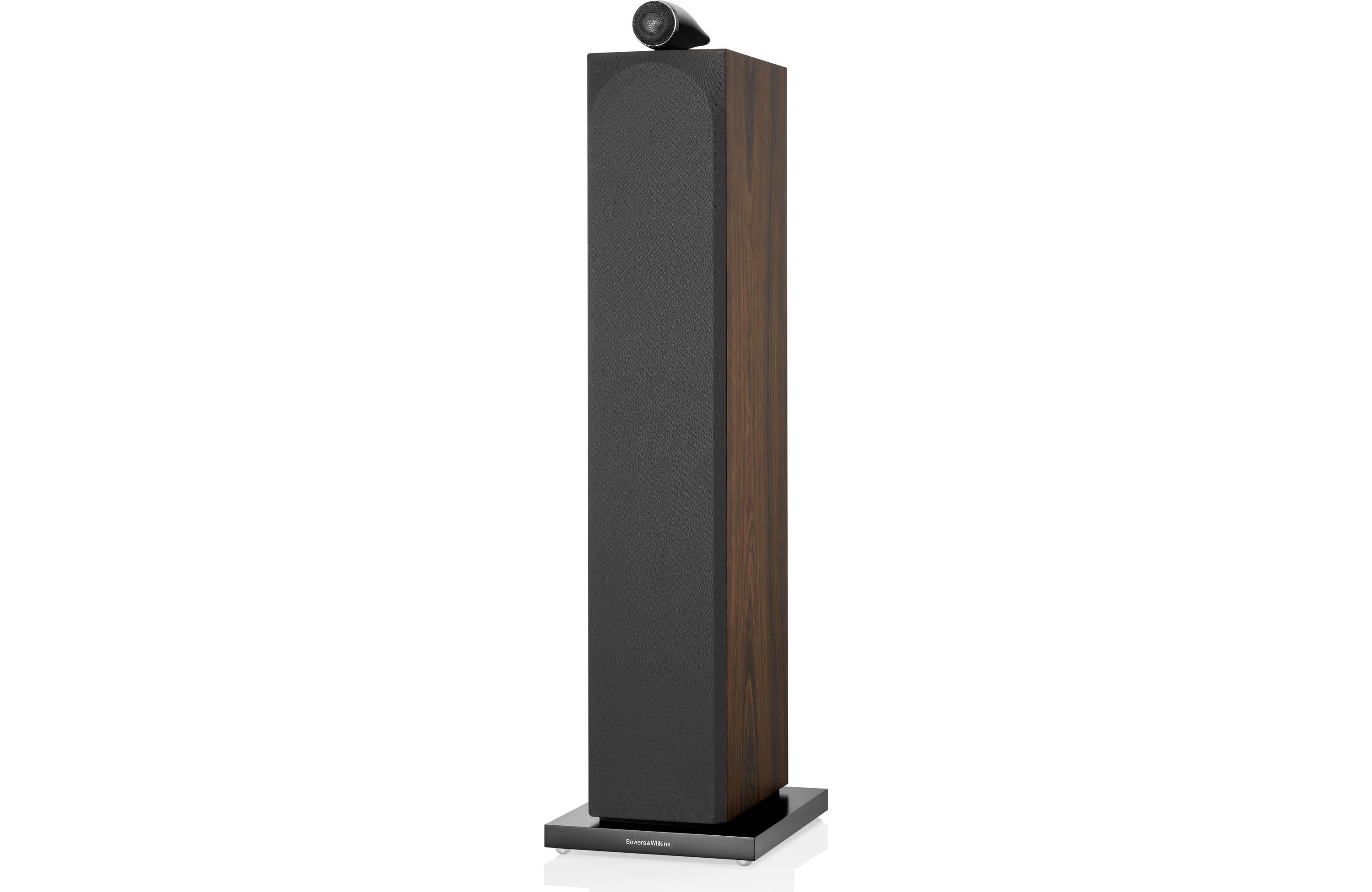

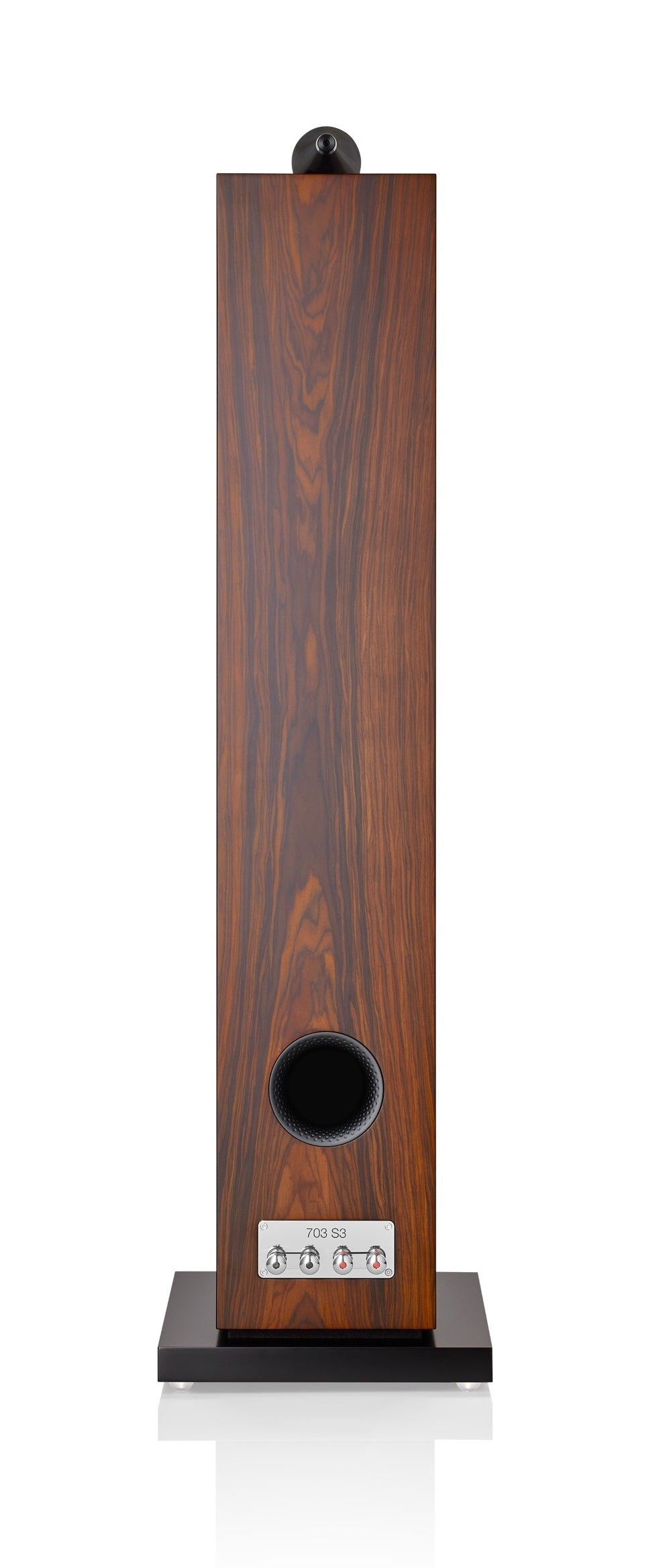

Mocha

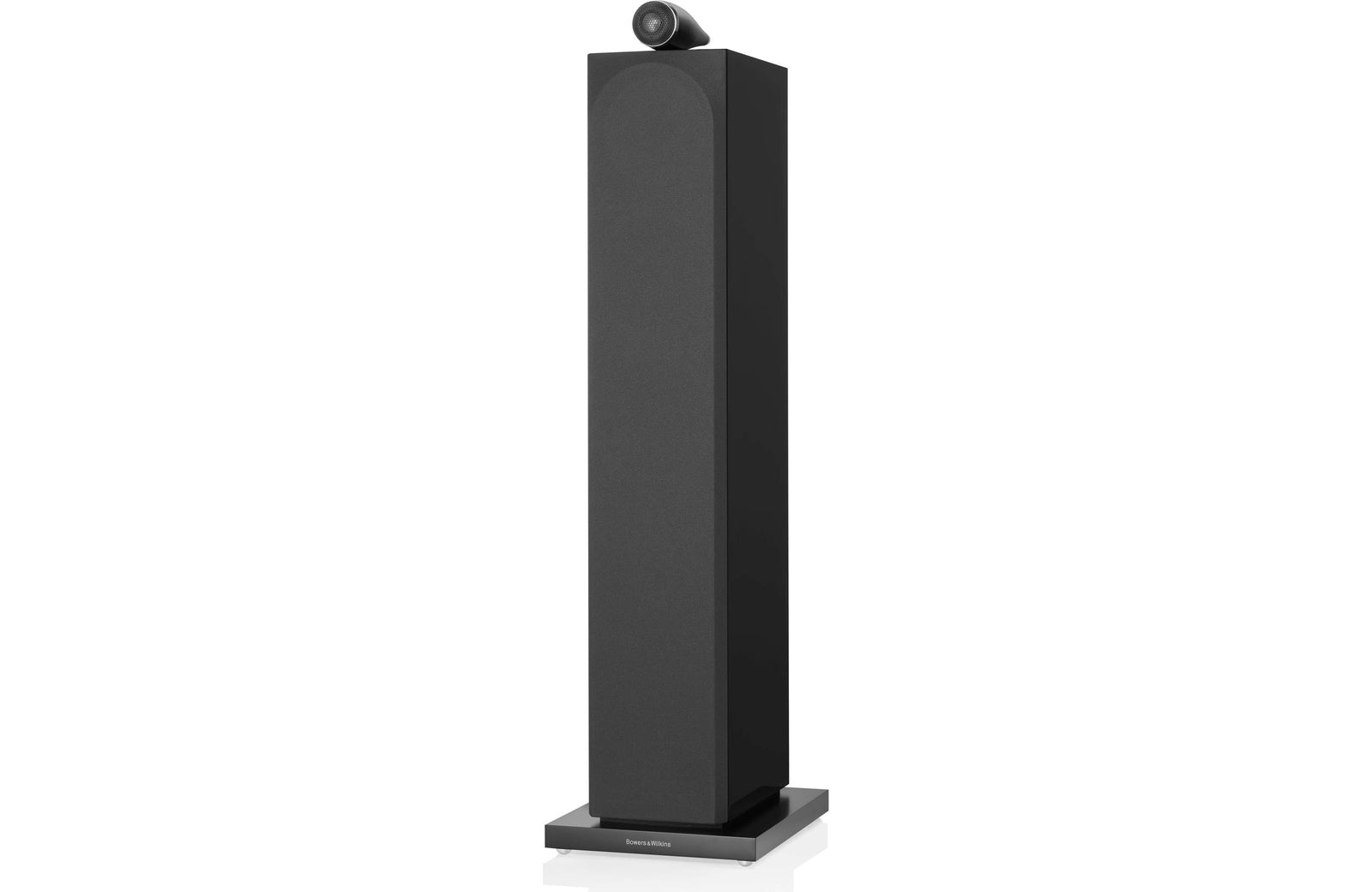

Grille finishes

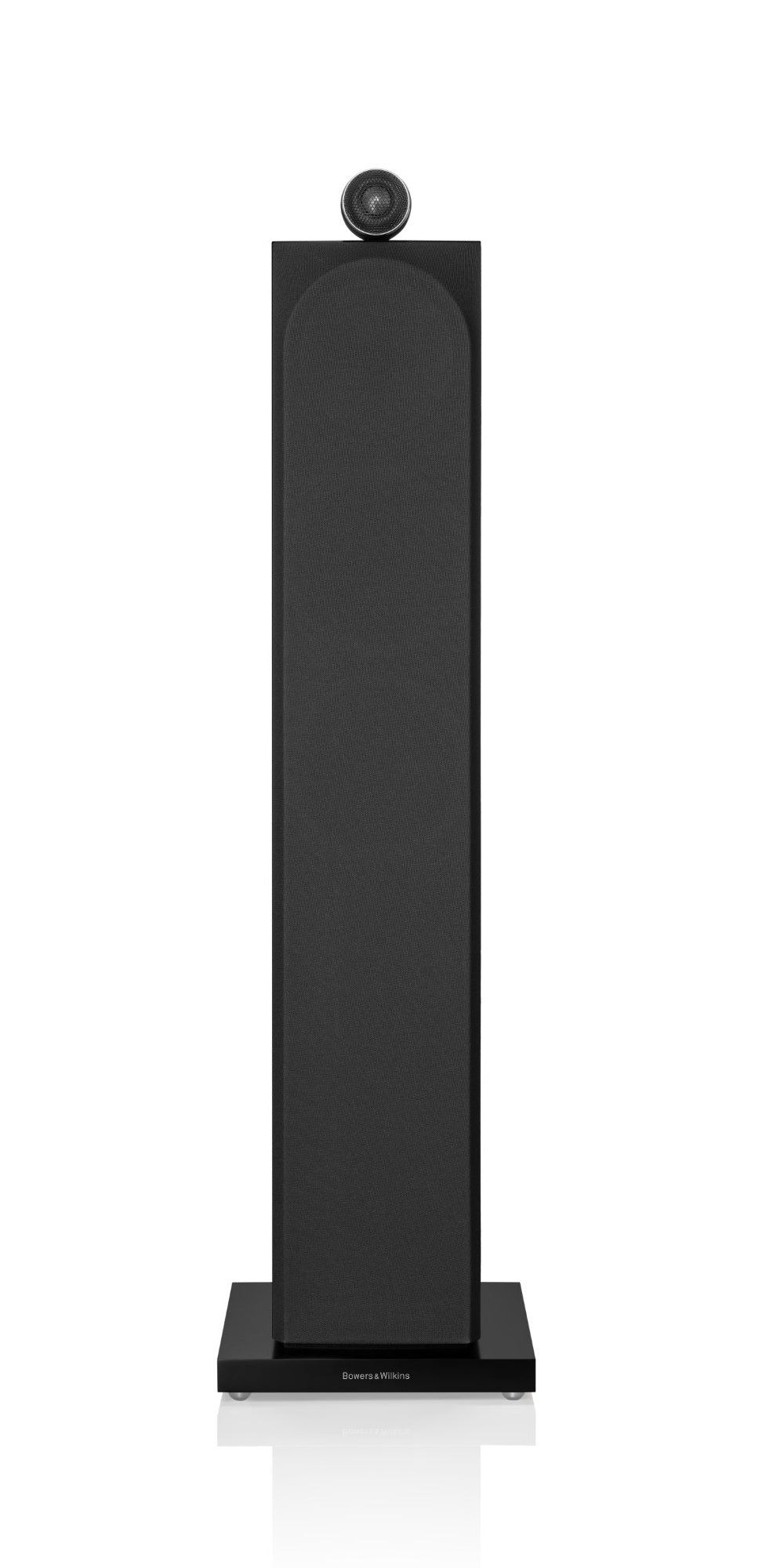

Black

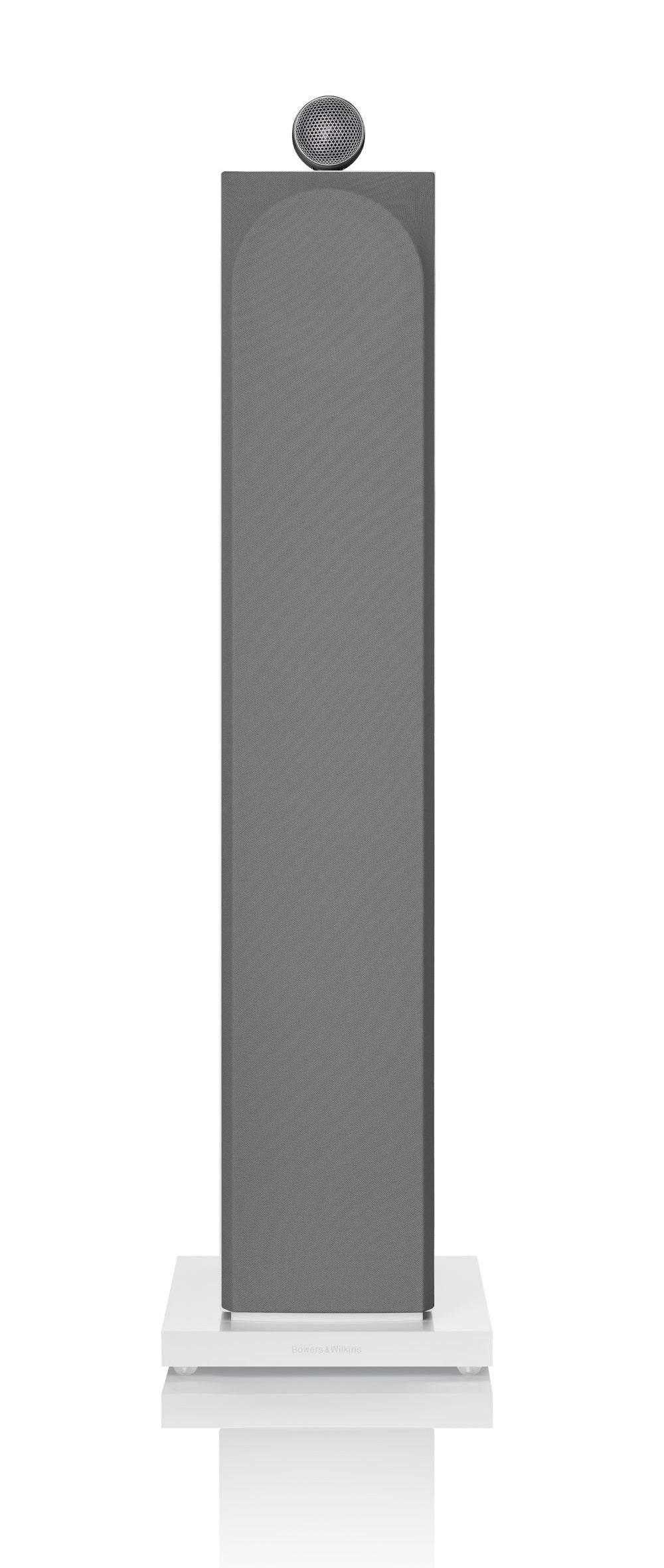

Grey (Satin White only)
