The NODE X marks 10 years of Bluesound, advancing the world of multi-room hi-res music streaming to create a modern addition to your existing hi-fi system or powered speakers.
To celebrate 10 years of #LivingHiFi, the NODE X offers a new take on the iconic NODE with a silver finish, premium ESS Sabre DAC, and dedicated THX headphone amplifier. Enhance your existing HiFi setup or powered speakers with this modern addition. With a few taps on the BluOS Controller app, available for iOS, Android, Mac, and PC, you can explore near unlimited collections of music, from hundreds of internet radio stations to dozens of streaming services and your own digital music library.
MEET THE NODE X
Since its inception, the iconic NODE has proven that audio quality, convenience and affordability can live together in one compact unit. The NODE X re-imagines some of the best parts of the NODE’s product design and takes ‘just add streaming’ into the next generation of audiophiles.
WIFI YOUR HIFI
Bring 24-bit hi-res streaming to an existing stereo or to your powered speakers and access all the music ever recorded with a few taps of the BluOS Controller app for iOS, Android, or Mac or PC computers. Hundreds of internet radio stations, premium music services like Tidal, Qobuz, Deezer, Spotify and dozens of other music streaming services, are integrated with the NODE X’s operating system, making music discovery seamless and exciting.
FORM MEETS FUNCTION
Don't let the size and minimalist looks of the NODE X fool you into diminishing its capabilities. Inside, the NODE X features a premium ESS Sabre DAC design that supports 24-bit/192 kHz audio processing, along with a high-end headphone amplifier driven by THX AAA™ technology and a full-sized ¼” (6.35mm) headphone jack for the ultimate no-compromise, wired headphone listening experience.
FULLY EQUIPPED
Bring music into your NODE X using HDMI eARC, Wi-Fi or Ethernet, Apple AirPlay 2, aptX™ HD Bluetooth, or USB, to hear audio content from streaming services, TV, and your own music library. Listen to your music through your HiFi system or through wired or wireless headphones, by connecting to the RCA, TOSLINK optical, aptX™ HD Bluetooth, 3.5mm jack, Apple devices, or other Bluesound or BluOS players.
FROM ANYWHERE TO EVERYWHERE.
Bit-perfect music listening can happen away from your HiFi system with the NODE X as your multi-room hub. The award-winning BluOS platform is the only platform in the world that can support up to 64 players, all streaming in 24-bit hi-res audio. With a growing stable of brands and devices being added to the BluOS platform, the NODE X opens up a world of hi-res listening options throughout your home that no other player can.

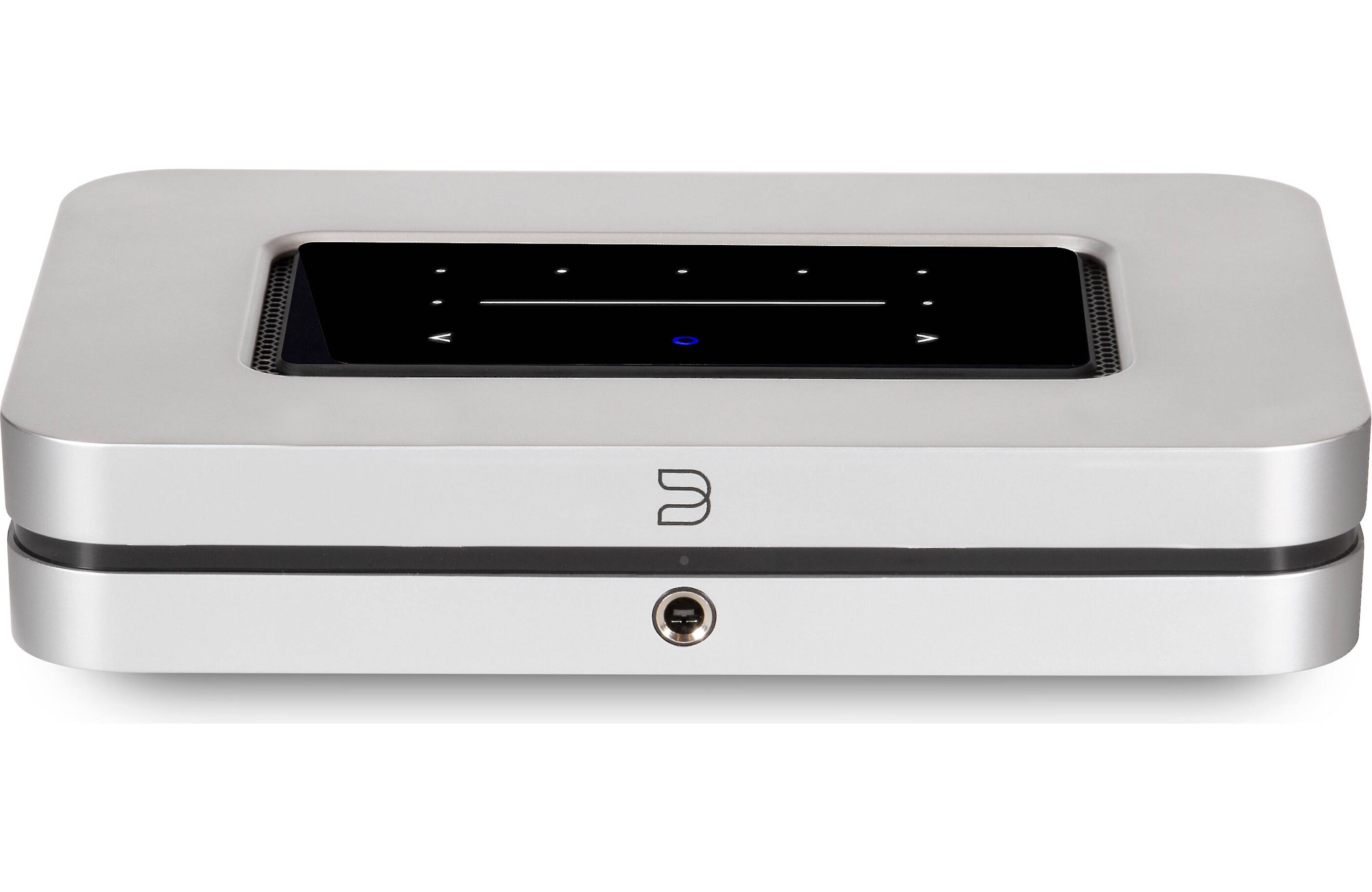

CONTROL FREAK.
Quick access controls like play/pause, track skipping, and volume are available as touch panel controls at the top of the NODE X, via voice assistants like Siri, Alexa, or Google Voice, or by programming your own IR remote or the included Bluesound RC1. Advanced controls, including tone controls, subwoofer crossover optimization, and settings to enhance external DAC connections are available in the BluOS Controller app. The NODE X can also be integrated into a smart home with full-feature drivers for Lutron, Elan, RTI, Crestron, and other popular home control systems.
THE MULTI-ROOM DREAM.
Seamlessly connect the NODE X to multiple Bluesound speakers throughout the home with the BluOS Controller app and create an intuitive multi-room music system unlike any other.

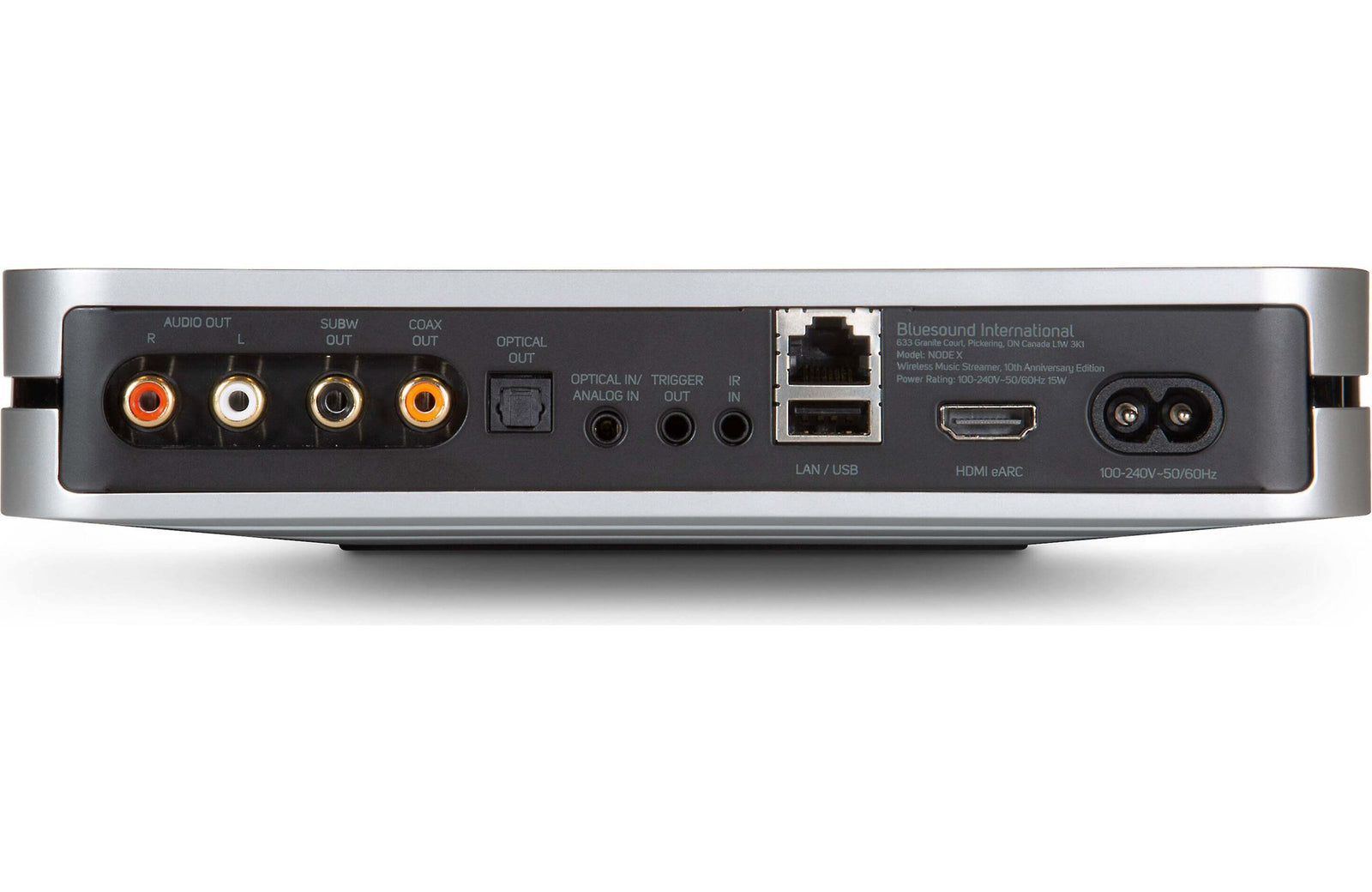

CONNECTIONS
Wi-Fi 5 (802.11ac), dual-band
Ethernet RJ45, GigE 1000 Mbps
Mini TOSLINK/3.5mm Stereo combo
HDMI eARC
Analog RCA Stereo with Fixed Output option
USB Audio 2.0 (Type A)
Bluetooth with support for aptX™ HD
Two-Way (transmit & receive)
6.35mm Stereo; Bluetooth
-95dB ref 1mW / 32ohms
THD+N, 0.002%
RCA Out
Network Pairing to PULSE SUB+
Type-A Port for external drive connection (Fat32 or NTFS formatted)
12V Trigger Out
IR Sensor Built In - front panel with IR Remote Learning
IR Input 3.5mm Jack
Universal bi-pin AC cord input (100-240AC)
*Available for free with future software update
AUDIO
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
FLAC, MQA, WAV, AIFF, MPEG-4 SLS
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
up to 192 kHz
16-24
SNR -118dB
ESS 9028Q2M
THD+N, 0.0003%
SOFTWARE & INTEGRATIONS
BluOS
iOS, Android, Windows Vista, 7, 8, 10, macOS 10.10-10.15, 11
SMB up to 200,000 track index
JPG, PNG
Amazon Music Amazon Music HD
Apple Music AirPlay 2
iHeart Radio Yes
Pandora No
Qobuz Yes
SiriusXM Yes
Spotify Connect
Tidal Connect
TuneIn Yes
YouTube Music No
Amazon Alexa Skills; Actions on Google
AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready
Control4, Crestron, URC, RTI, ELAN, Lutron
USER INTERFACE
RGB LED x 2
Touch LED
Touch Slider LED
Touch LED
Touch LED x 5
Yes
GENERAL
Silver
RC1 Remote Control
120V AC Power Cord
230V AC Power Cord
Ethernet Cable
Stereo RCA to RCA Cable
TOSLINK Optical to 3.5mm Mini Adaptor
Safety/Warranty Guide
Quick Setup Guide
10th Anniversary Insert
Storage Environment
-10°C to 50°C, 20% to 80% relative humidity
0°C to 40°C
1.09kg/2.4lbs
220 x 46 x 146 mm
8.7 x 1.8 x 5.7 in
2.28kg/5.03lbs
300 x 300 x 74 mm
11.8 x 11.8 x 2.75 in
