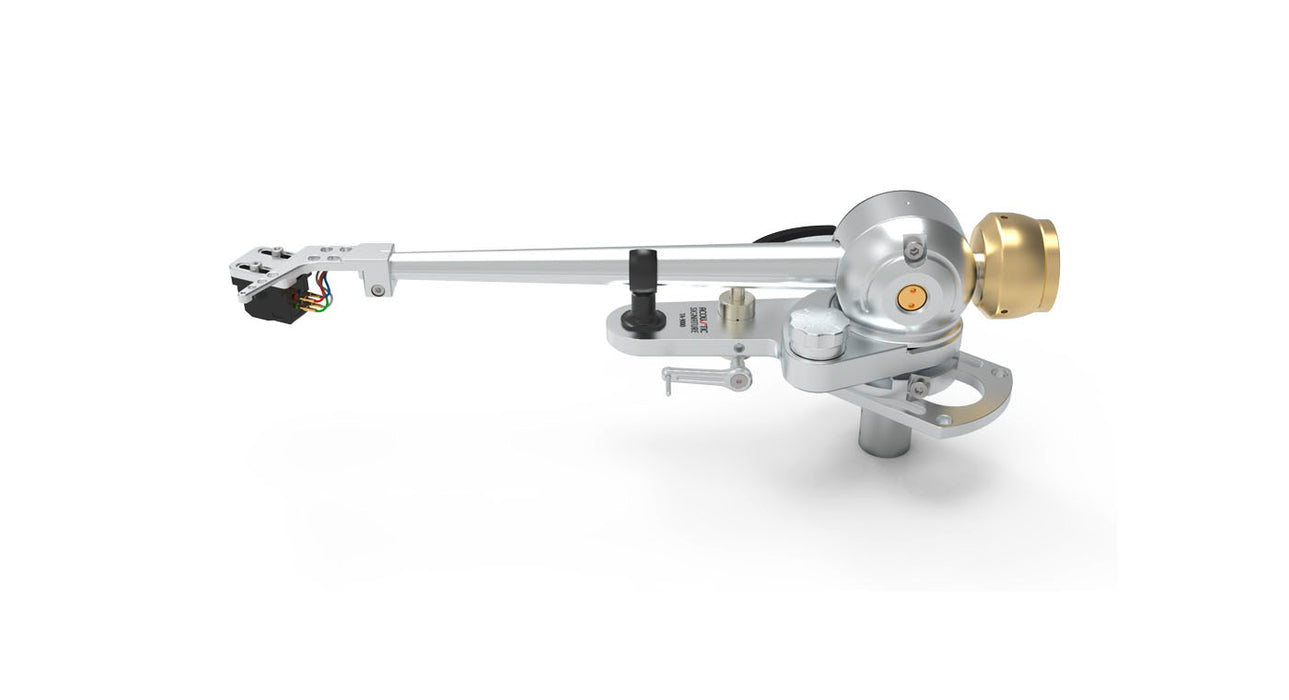

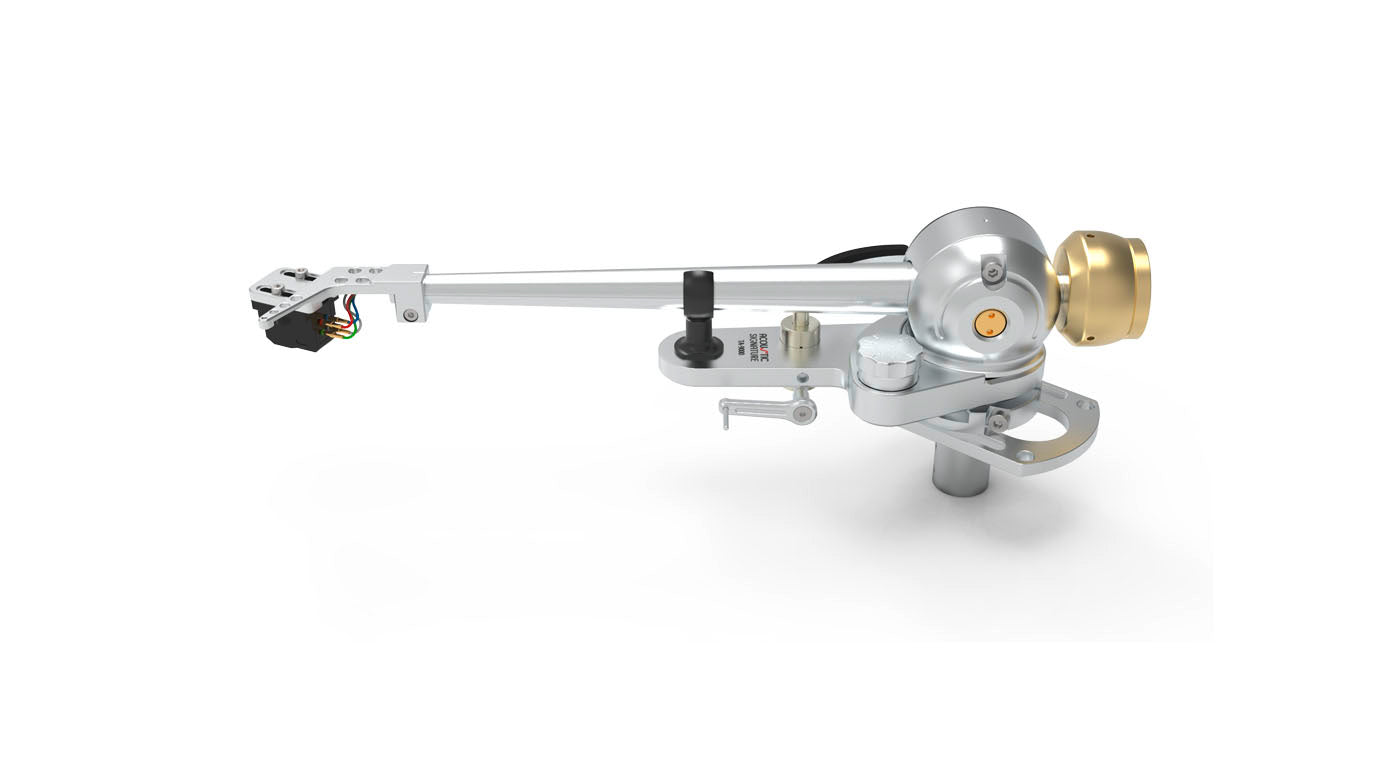

One of the most elaborate armtube designs in the history of high-end components, ball bearings used in astronautics which can hardly be surpassed in terms of precision and low friction, an innovative material symbiosis that has been thought out down to the smallest detail and that unites extreme rigidity and lightness as well as the ability to absorb vibrations: the TA‑9000 NEO is made for the ultimate turntables.
Special Features:
Tonearm with extensively damped multi-structure aluminum armtube
Available as 9″ and 12″ version
Perfect tracking results due to frictionless, pre-tensioned high-precision ball bearings by Timken
Better rigidity and smooth operation due to NEO stainless steel tonearm axis design
Internal high-purity silver wiring (4N)
Supplied with external Audioquest 5-pin phono cable (1.5m, RCA or XLR)
Counterweight made of brass
Optional headshell made of massive titanium
Adjustable VTA & azimuth
SME-type mounting versions
Anti-skating knob
5-year warranty (with registration)
Technical Data
Available sizes: 9″ version, 12″ version
Length: 298 mm (9″ version), 368 mm (12″ version)
Effective length: 239.3 mm (9″ version), 309 mm (12″ version)
Mounting distance (from pivot to center of platter): 222 mm (9″ version), 295.8 mm (12″ version)
Total weight: 678 g (9″ version), 746 g (12″ version)
Effective mass: 14.7 g (9″ version), 16.1 g (12″ version)
Tilt angle (depends on cartridge): 23.9°(9″ version), 18.1° (12″ version)
Overhang: 17.3 mm (9″ version), 13.2 mm (12″ version)
Cartridge balance range: 4 to 16 g
Tonearm mounting versions: SME style
Armtube: Extensively damped multi-structure aluminum armtube
Signal cable material: High-purity silver wiring (4N)
Phono cable: 1.5 m phono cable by Audioquest
Connectors: 5-pin to RCA or XLR/ground connector
Available finishes

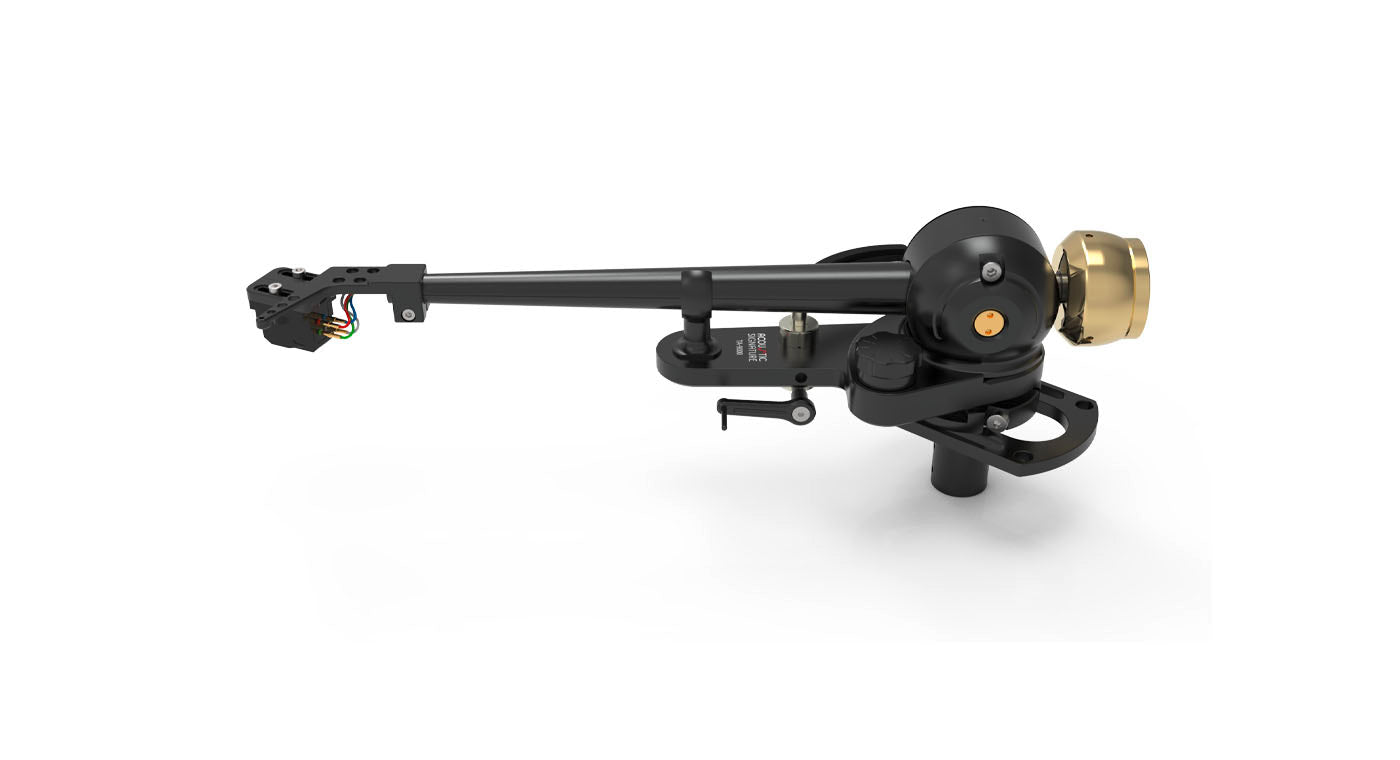

Tonearm: Black (anodized, optional: counter weight 24K gold-plated), Silver (anodized), 24K gold-plated;
Optional: massive titanium headshell upgrade
Armtube: Aluminum in selected tonearm color
