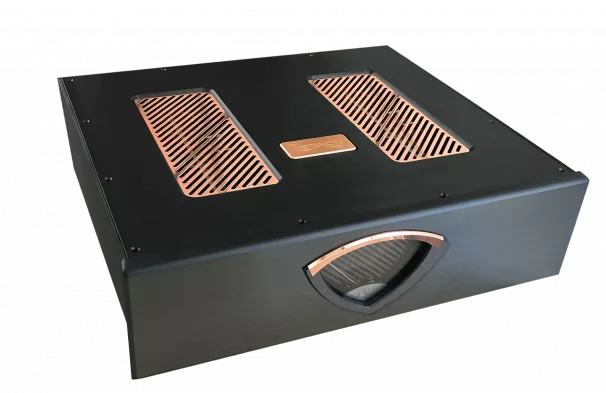

Featuring state of the art ICEedge® technology, the elegant i·V3 ULTRA amplifier approaches 80% efficiency while delivering over 600 watts per channel into 8 ohms all channels driven.
Legacy's i.V3 ULTRA offers a dedicated module for each of its three channels. Featuring state of the art ICEedge® technology, the elegant three channel amplifier approaches 80% efficiency while delivering over 600 watts per channel into 8 ohms all channels driven.
Such exceptional power is the product of very high current (i) and voltage (V) output capabilities providing stability into low impedances with a peak output current capability of 38A.
i·V 3 ULTRA Features:
Say goodbye to excessive heat and transformer hum. The crystal-clear sound is virtually noise-free and reliability is assured- after all, it’s a Legacy.
The Legacy i·V series is available in a monoblock up to an eight channel configuration. The i.V ULTRA series features a dedicated module per channel.
Power Rating:
1000 watts per channel x 3 @ 4 ohms, all channels driven 610 watts per channel x 3 @ 8 ohms, all channels driven
Peak Power:
1.2 kW peak power from any channel @ 4 Ohm/ 1kHz with less than 1% distortion
Over Current Protection:
Breaker reset for excessive sustained current
Inputs:
Fully balanced XLR, single-end RCA
Outputs:
Gold plated safety approved five-way binding posts
Damping factor:
750 average, 20Hz to 1kHz
Voltage Gain:
25.8 dB
Dynamic Range:
127 dB, A-weighted
Voltage/Current:
98 Vp/ 38Ap
Input Sensitivity:
5.0 Vp @ 1200W/4 Ohm
Input Impedance:
38 kOhm for both pin 2+ and pin 3-
Channel Separation:
120 dB at 1kHz
Unit Dimensions:
17.5" W x 15.6" D x 5.8" H
Shipping Weight:
35 lbs
Notes:
Highest power output can be obtained using a single 230V, 20A line. AC cord is provided.
