IN-CEILING ANGLED COAXIAL LOUDSPEAKER
THE PERFECT HOME CINEMA COMPLEMENT

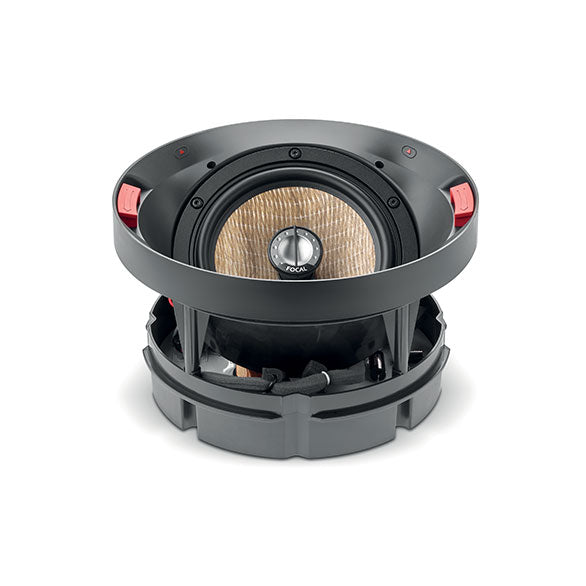

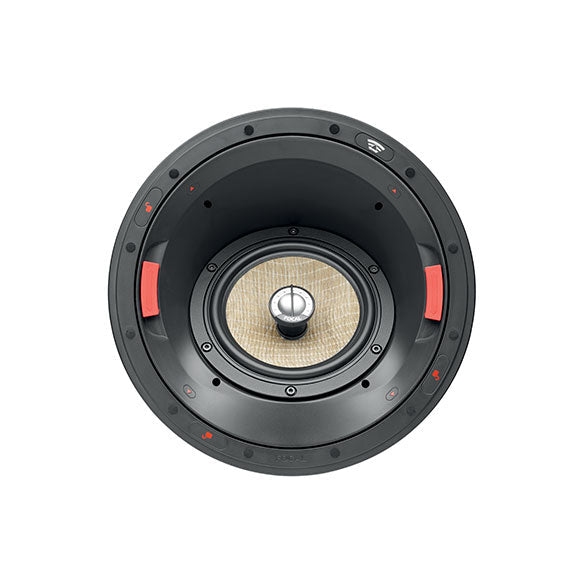

300 ICA6 is an in-ceiling/in-wall loudspeaker fitted with a speaker driver angled at 35° that makes it perfectly adjustable to suit the position you are listening from. This removes any “shower effect”, for a high-quality sound experience. The angle also means that it can be positioned in several ways in the ceiling, including in corners, for fully discreet sound delivery. Using the product as a Dolby Atmos® / DTS:X loudspeaker greatly enhances the effects experienced in 3D audio, making it the perfect complement for a 300 Series Home Cinema system.
300 ICA6 includes exclusive technologies that are made in France in Focal's workshops, such as the Flax cone, delivering extremely natural sound and the Aluminium/Magnesium inverted dome tweeter for silky treble. The grills delivered with the product guarantee a total discretion whilst the patented Easy Quick Install technology ensures a quick, tool-free installation.
*300 ICA6 is similar in design and exactly the same size as the 100 Series products. This makes it possible to develop your system easily depending on your requirements.
CREATE AN INVISIBLE SYSTEM
Round or square, the grilles are magnetic making them easy to place on the loudspeakers. They are fitted with anti-vibration pads so as not to interfere with listening. Available in a white finish, the grilles have been designed to be painted and to blend in seamlessly with the interior.
THE INIMITABLE FLAX CONE
The Flax cone is an exclusive Focal technology manufactured in France. It is a sandwich cone formed of an extremely high-quality flax fibre core placed between two thin sheets of glass fibre. It ticks all the boxes for a high-fidelity cone: it is lightweight for good dynamics, rigid to support the bass and dampening to deliver a neutral and natural listening experience. The sounds are strikingly real, voices are reproduced with clarity and detail.
EASY, QUICK & NO TOOLS REQUIRED

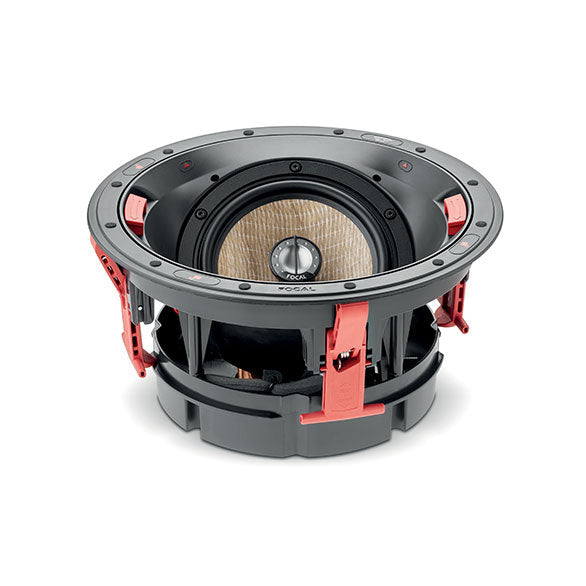

The loudspeakers of the 300 Series are very easy to install thanks to the EQI (Easy Quick Install) system. The install frame is compatible with any wall or ceiling with a width between 5 and 30mm. No tools are required. The frame comes with fixing legs which holds the system in place. Simply insert and lock the speaker, either by rotating it for the round in-ceiling models, or by applying a pressure on the frame for other models.
Type of speaker 2-way in-ceiling
Speaker drivers 6 1/2" (16.5cm) Flax Mid-bass
1" (25mm) Aluminium/Magnesium inverted dome tweeter
Sensitivity (2.83V/1m) 89.5dB
Bandwidth (+/-3dB) 65Hz - 28kHz
Low-frequency cut-off (-6dB) 45Hz
Nominal impedance 8 Ώ
Minimal impedance 4.8 Ώ
Recommended amp power 25 - 130W
Size (Ø x depth) 11 3/4 x 5" (299x127mm)
Mounting diameter (Ø) 10 3/8" (264mm)
Depth from wall 5 3/4" (146mm)
Ceiling thickness (min - max) 3/8 - 13/8" (10mm - 35mm)
Net weight (with grille) 6.6 lbs (3kg)
Box size (WxDxH) 14 3/4 x 14 3/4 x 13 3/8" (375x375x340mm)
Total weight (with packaging) 11.7 lbs (5.3kg)
