A Vast Listening Area

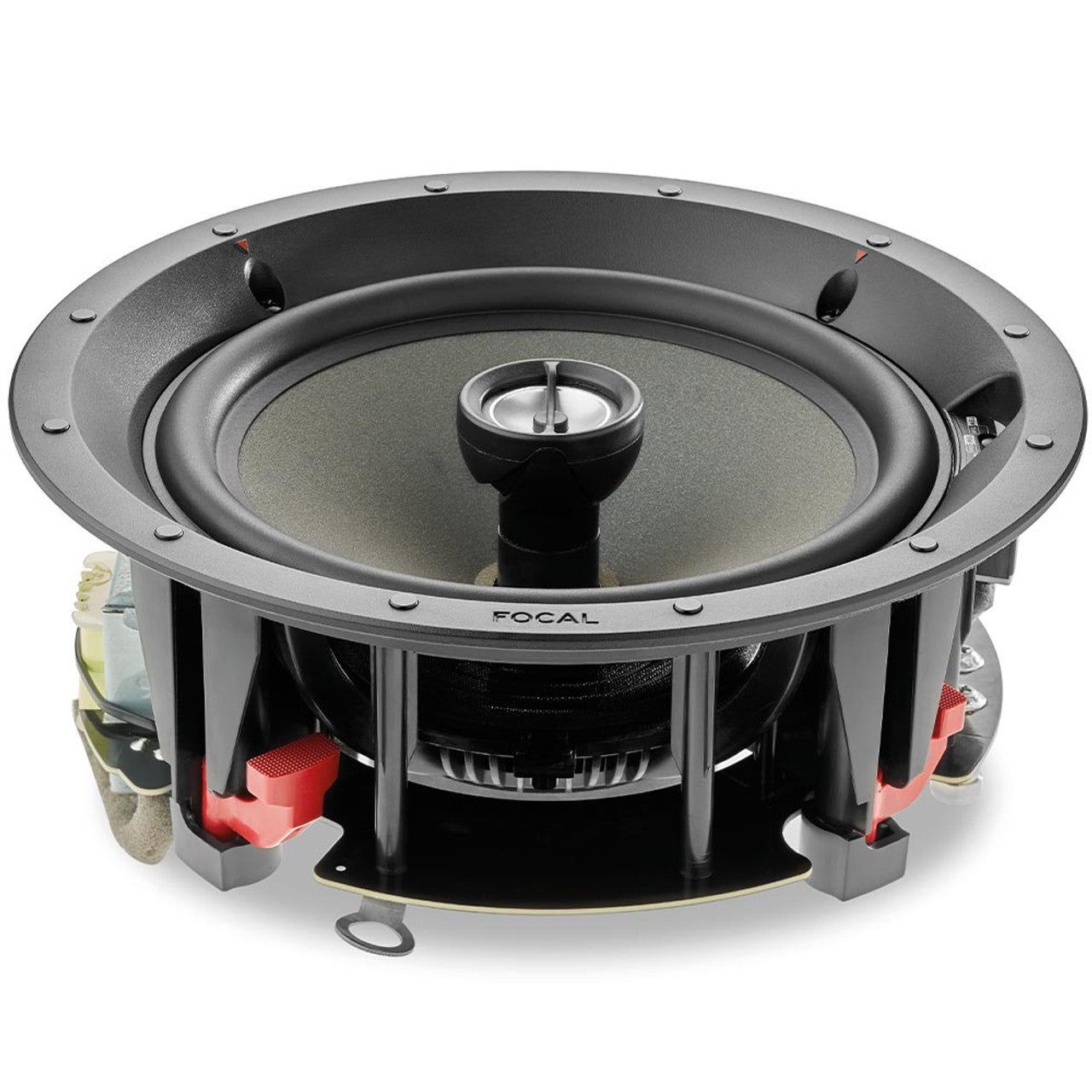

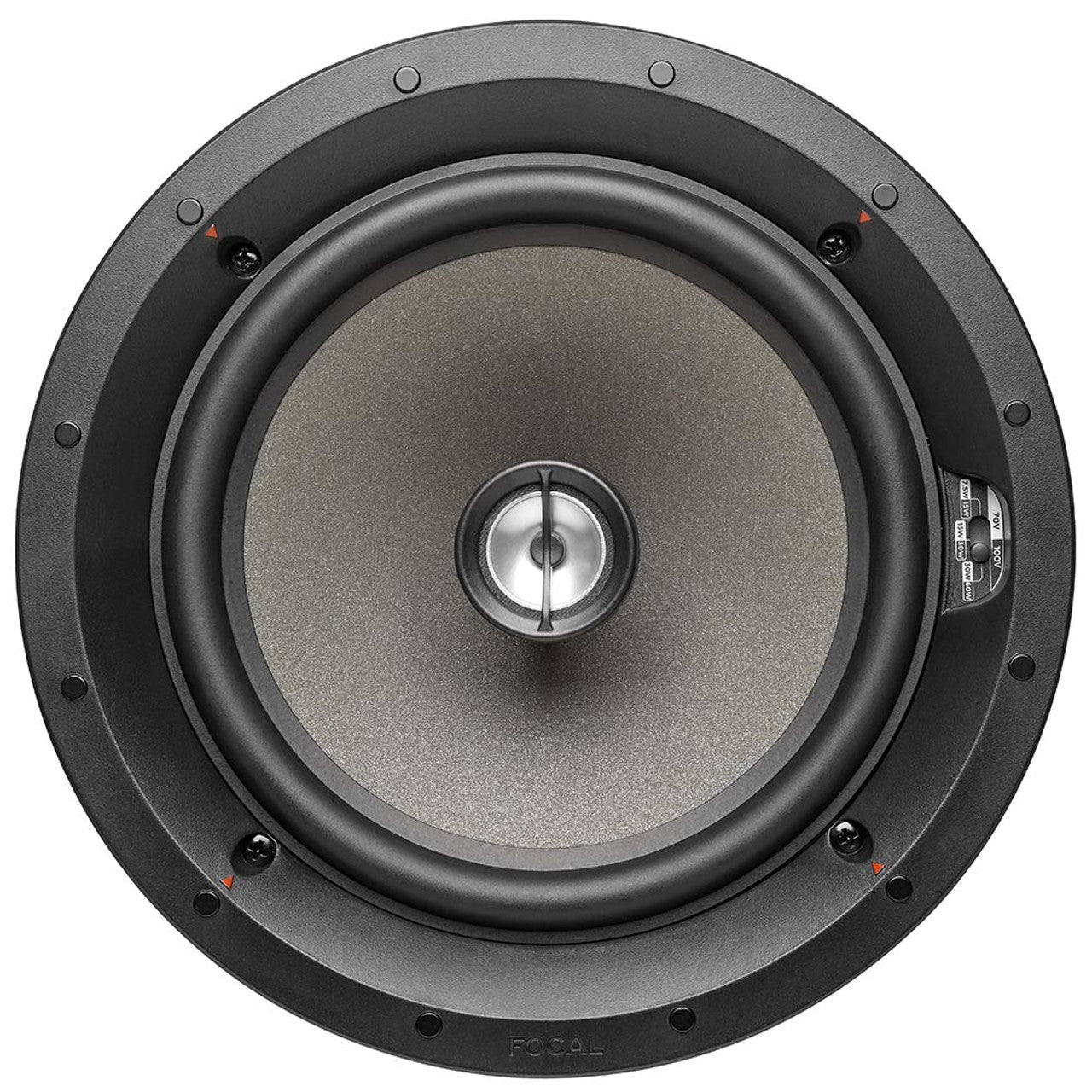

IN-WALL OR IN-CEILING COAXIAL 2-WAY LOUDSPEAKER
Designed and developed in France by Focal, the 100 ICW8-T loudspeaker is composed of a 8’’ (21cm) mid-range speaker driver with Polyglass cone and a 1’’ (25mm) Aluminum tweeter. Like all the products in the 100-T Series, it has an adjustable transformer which adjusts the power for a 70 volt/100 volt system. The transformer thus makes it possible to link the loudspeakers together and cover a vast listening area!
The 100 ICW8-T speaker driver also has very low directivity, which removes any “shower effect” and creates high-quality, uniform sound throughout the whole space. Compact and with a round or square ready-to-paint grille, the 100 ICW8-T is easy to install and discreet wherever it is positioned.
Focal Technologies
The speaker driver's Polyglass membrane offers a natural mid-range, without coloration, and rich bass. It is linked with the Aluminum inverted dome tweeter that delivers a silky treble and guarantees optimum sound dispersion.
For 70V/100V systems

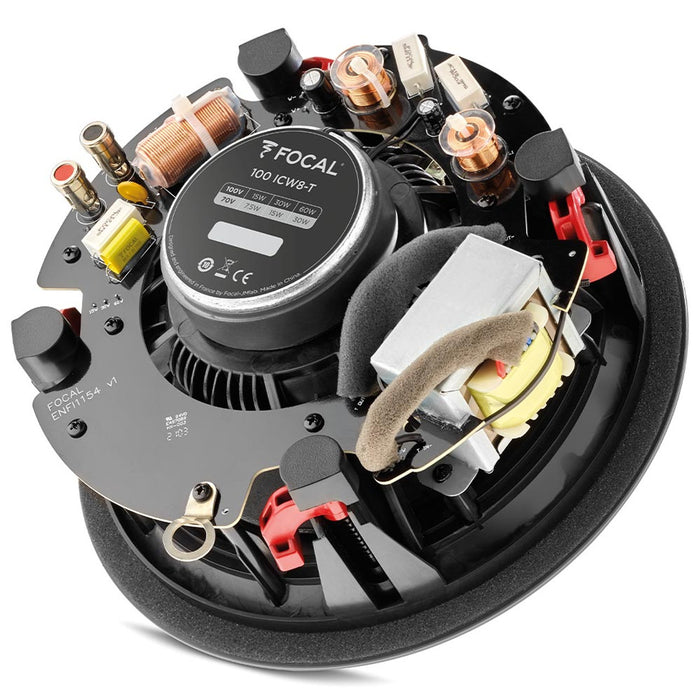

The 100-T Series loudspeakers incorporate an adjustable power transformer which adjusts the power of each loudspeaker enabling them to be linked together within a 70V/100V system. As such, they can cover a large listening area, with crystal clear sound, by minimizing the number of necessary amplification channels.
Compact and discreet
The 100-T Series in-wall and in-ceiling loudspeakers are very discreet, being compact and with a shallow mounting depth. And installation is made even easier thanks to the mounting brackets available with optimized grip for each product.
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth

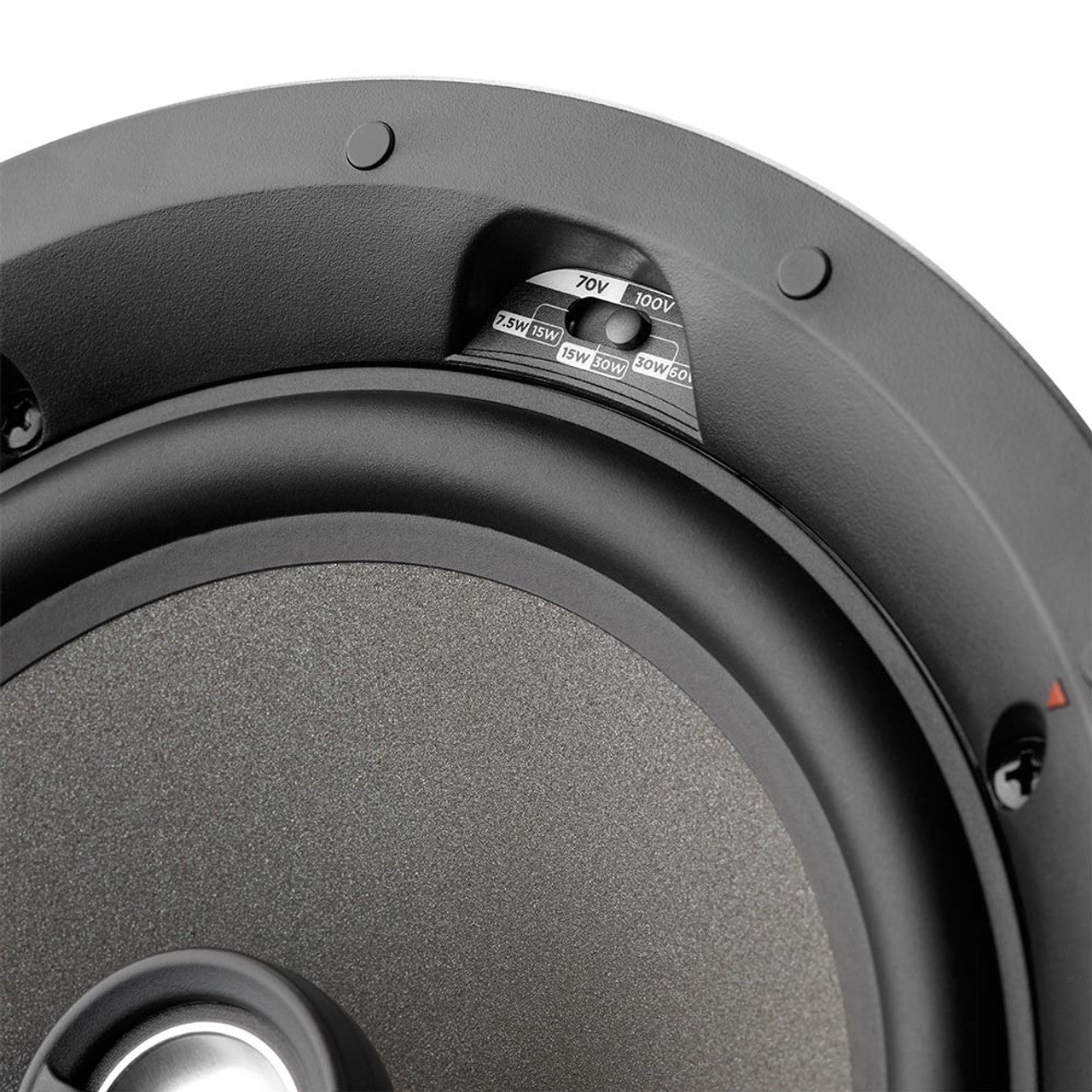

• 100V/70V mode by switch

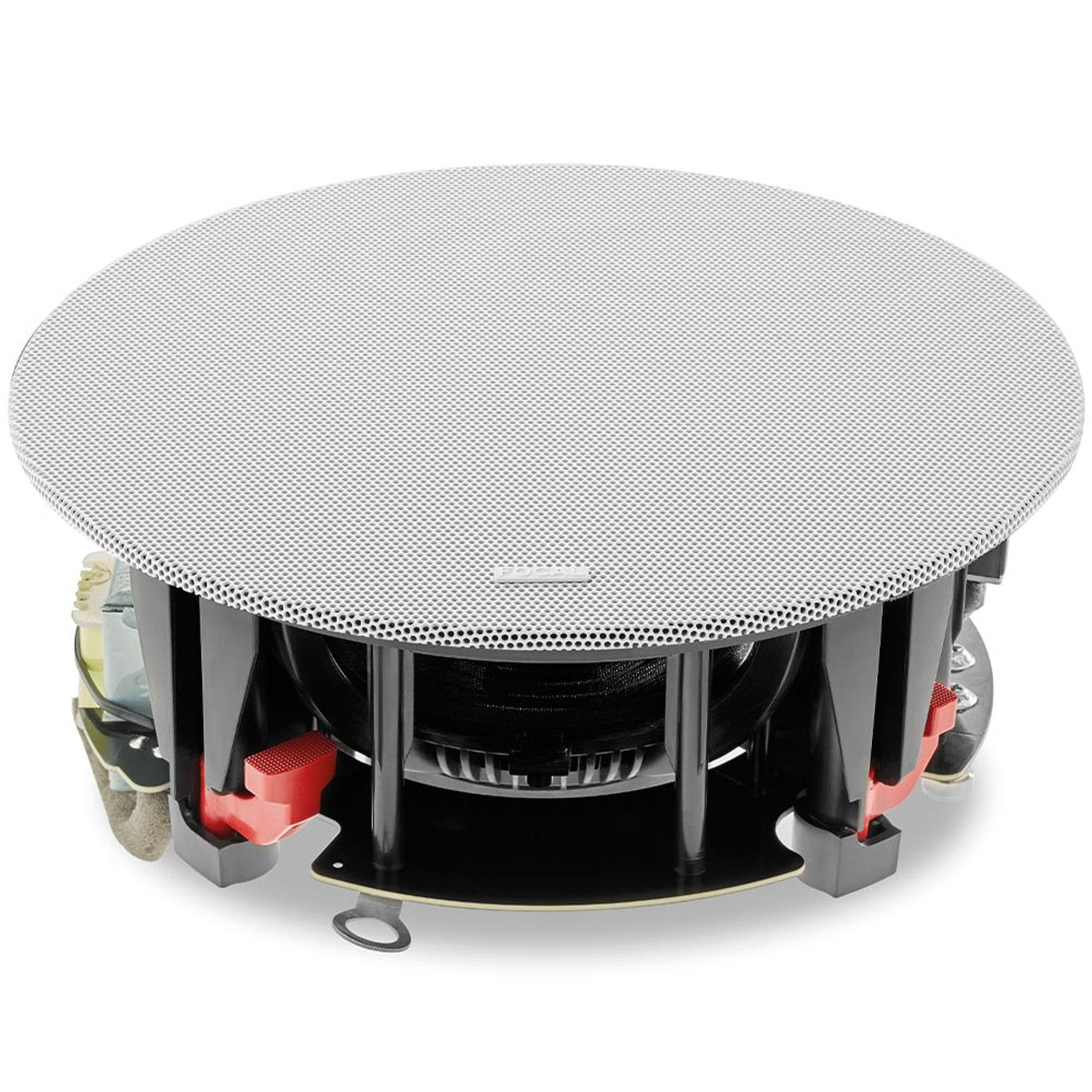

• Ready-to-paint grille
Type In-wall/In-celling - 2-way coaxial
for 100V/70V line installation
Drivers 8" (21cm) Polyglass Midbass
1" (25mm) Aluminum inverted dome Tweeter
Sensitivity (2.83V/1m) 90dB
Frequency response (+/-3dB) 53Hz - 23kHZ
Low frequency point (-6dB) 40Hz
Power in 70V 7.5/15/30W
Power in 100V 15/30/60W
Recommended amplifier power 15 - 100W
External dimensions (Ø/Depth) 9 3/4 x4 3/8" (248x111mm)
Cut-Out diameter 8 13/16" (224mm)
Depth from wall 4 1/4" (107mm)
Net weight (with front grille) 5lbs (2.3kg)
Packing dimensions (WxDxH) 12 3/16" x 12 3/16" x 7 1/4" (310x310x185mm)
Total weight (with packaging) 8lbs (3.6kg)
