Premium In-Ceiling Surround Speaker with Dual Tweeters and 8" Pivoting Woofer
The Dymension CI™ DC-80 MAX SUR premium in-ceiling surround speaker delivers expansive overhead sound for high-performance home theater systems, thanks to pivoting drivers, dual tweeters, and discrete aesthetics.
Key Features:
Toolless Installation
A simple, elegant two-piece mounting system with pivoting “dog” arms
allows speakers to be installed without tools, safely and securely, in minutes.
Pre-construction brackets are available for all Dymension CI models.

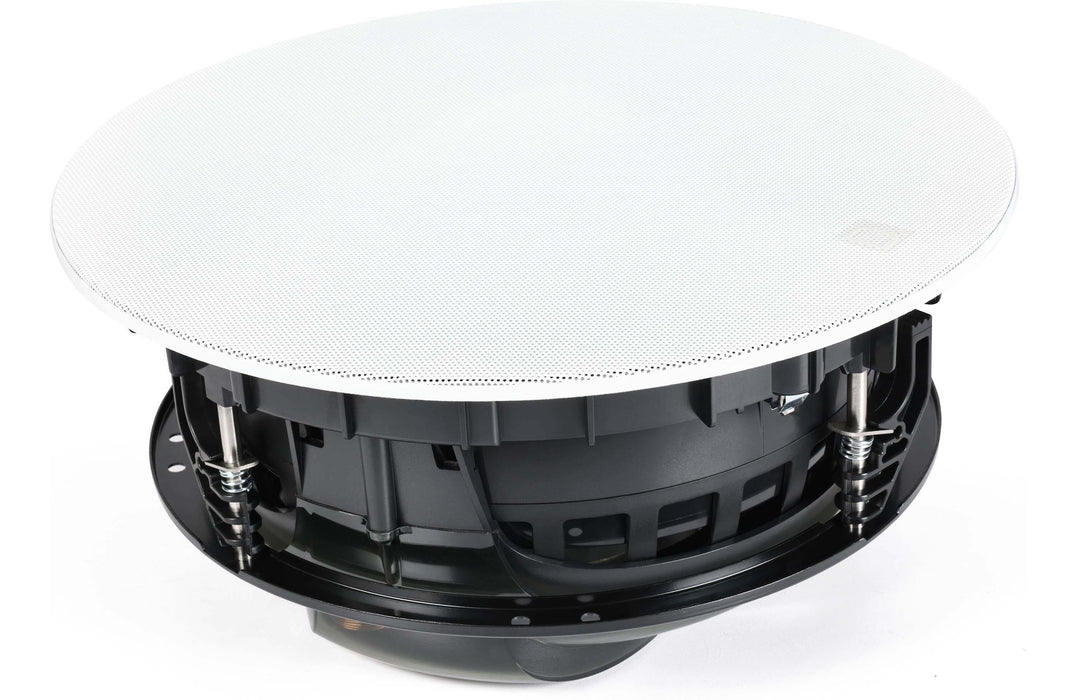

Discrete Design
Integrated frames and baffles; paintable, micro-perforated magnetic grilles; and
a flush, border-free design mean speakers fade into the background for a virtually
invisible appearance that’s in perfect harmony with your space.

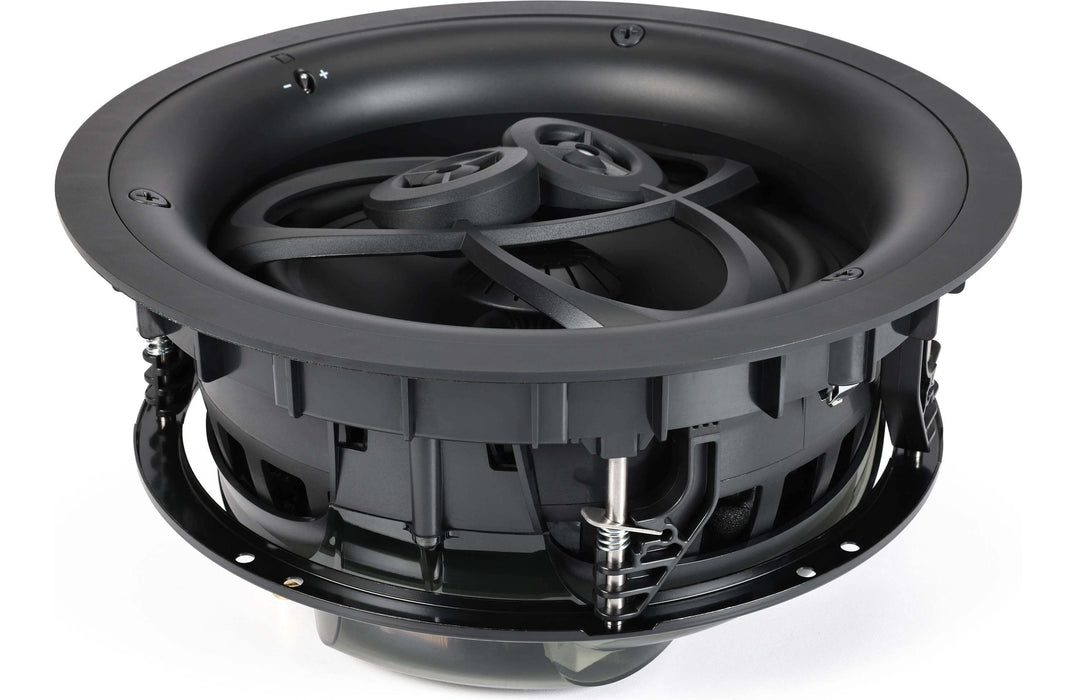

Pivoting BDSS™ Woofers with Linear Response Waveguide™
Dymension CI MAX Series in-ceiling speakers all feature our patented pivoting
woofer design which allow for speakers to be installed virtually anywhere—even
sloped and coffered ceilings—while pointing sound exactly where you want it.
The light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise
imaging and an open, airy sound.
Pivoting Aluminum Oxide Dome Tweeter
An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortionfree highs that extend far beyond the range of human hearing. And because
it’s aimable, you can place speakers in convenient locations while aiming sound
precisely where it matters most.
Stealth Surround Sound
The Dymension CI™ DC-80 MAX SUR premium in-ceiling surround speaker delivers
expansive overhead sound for high- performance home theater systems, thanks
to pivoting drivers, dual tweeters, and discreet aesthetics.
Timbre-Matched
Combine timbre-matched Dymension™, Dymension CI, and Mythos®speakers and Descend Series subwoofers to design high-performance home theater or whole-home systems of any size and scale.
Product Dimensions (W x H x D): 11.80 in (299.8mm)
Cut-Out Dimensions (W x H): 10.57 in (268.6 mm)
Mounting Depth: 5.34 in (135.7 mm)
Weight: 6.66 lbs (3.02 kg)
Color/Material: White Paintable Grille
Grille Material: Micro-Perforated Magnetic Grille
Tweeter: (2) 1 inch Pivoting Aluminum Oxide Dome Tweeter
Midrange/Midbass: 8 inch Mineral Filled Poly BDSS™ with Linear Response Waveguide™
Frequency Response: 23 Hz–30 kHz (-10 dB), 36 Hz–25 kHz (-3 dB)
Nominal Impedance: 6Ω
Sensitivity: 85dB (2.83V/1m)
Recommended Amplifier Power: 20-150W
IP (Ingress Protection) Rating: IP55
Warranty: 5 Years
Included Accessories: Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
