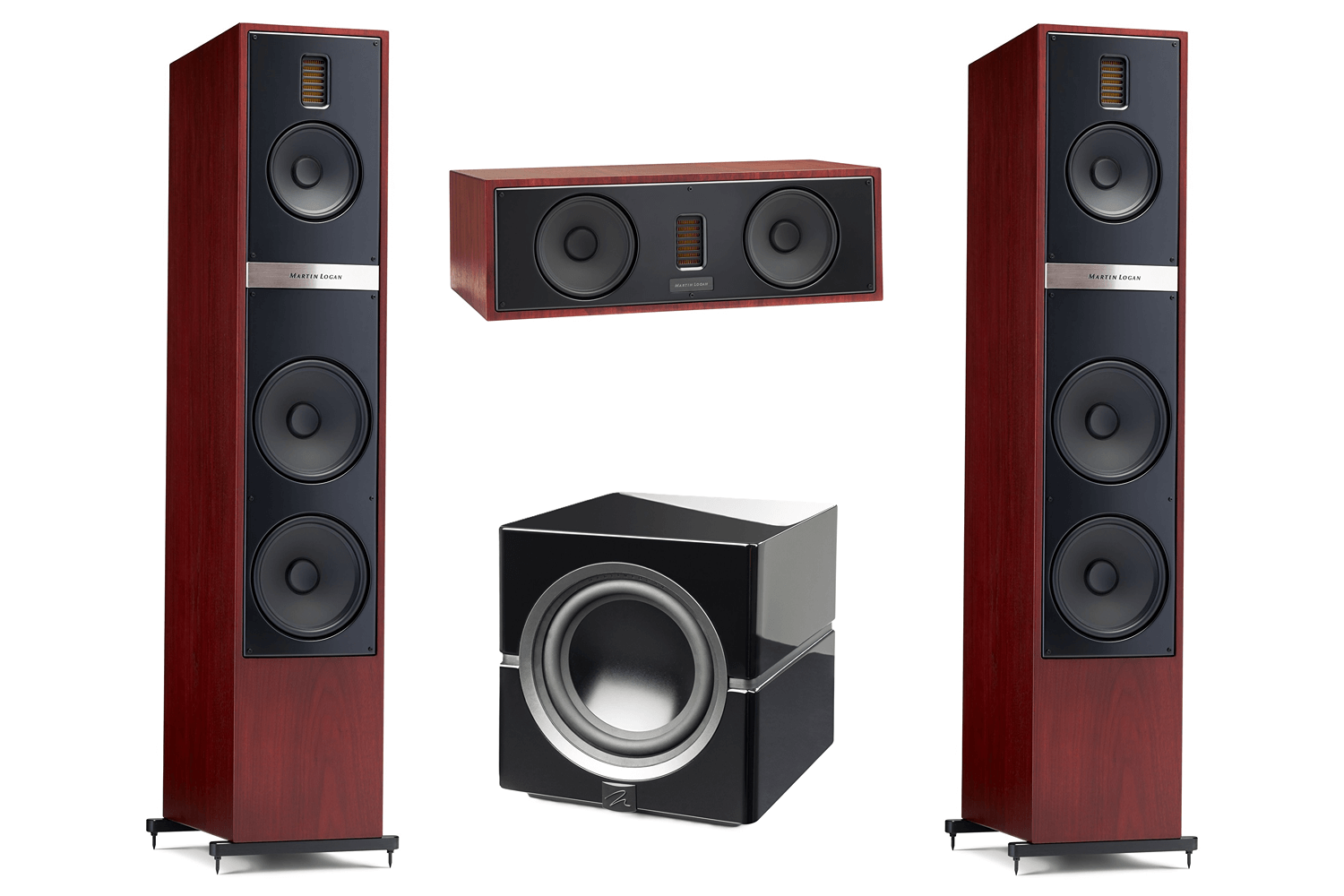

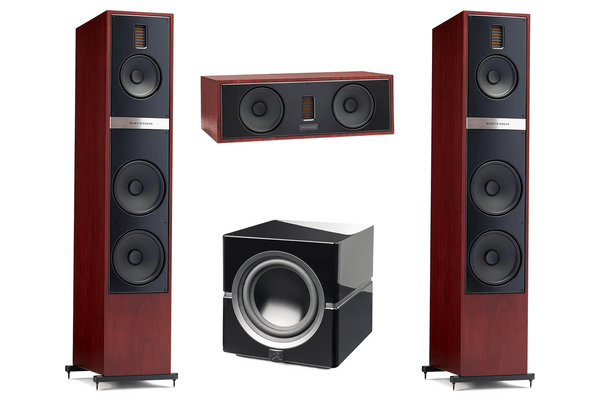

Martin Logan Motion 60XTi Floorstanding Speakers Pair with Motion 50XTi Center Speaker and Dynamo 10 Powered 10" Subwoofer Bundle
This Bundle Includes the Following:
QTY: 2 Martin Logan Motion 60XTi Floorstanding Speakers
QTY: 1 Martin Logan Motion 50XTi Center Channel Speaker
QTY: 1 Martin Logan Dynamo 10 10" Powered Subwoofer
Motion 60XTi Floorstanding Speakers
This is the flagship of the Motion Series. It's a powerful floorstanding loudspeaker featuring a Folded Motion XT tweeter, 6.5-inch aluminum cone midrange driver, dual 8-inch aluminum cone woofers with rear-firing bass ports, and a proprietary Vojtko crossover network. XT stands for extreme: lifelike details from the lightning-fast Folded Motion XT tweeter, open and authentic midrange performance, coupled with deep, musical bass response. These classic performance technologies have been enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports increased internal bracing, a reinforced baffle, and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
Engineering, Without Compromises
What makes the Motion Series sound so amazing MartinLogan's dedicated in-house engineering and design team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering and time-honored cabinet construction techniques. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price. Our 'no compromise' philosophy gives Motion Series a unique sound you won't find anywhere else.
Sound Inspired by Electrostatic Speakers
The success of the Motion Series is directly attributed to its close relation to MartinLogan s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.
Folded Motion XT Tweeters
MartinLogan's signature Folded Motion tweeter utilizes an extremely low mass diaphragm that "squeezes" air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that's able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters, advanced thin-film transducer technology even further, with a 40% larger radiating surface and 80x30-degree controlled dispersion. This tweak increases audible bandwidth without sacrificing details and minimizes distortion to an unprecedented level while increasing efficiency and the tweeter's already lightning-fast response time. The result superior realism and alarming specificity is aurally astounding, and only by MartinLogan.
Powerful Aluminum Cone Mid-Frequency and Bass Drivers
Custom built, low-distortion drivers pair high-power magnet structures with aluminum cone diaphragms to deliver massive excursion and sound output, preserve minute bass details, and maximize power handling capability, all without a hint of distortion. A unique concave dust cap design reinforces the strength and rigidity of the cone while reducing break up modes.
The use of aluminum for cones maximizes rigidity and strength of the drivers without adding excessive weight. This, along with the exceptional damping properties of aluminum, ensures the smooth, non-resonant response necessary for seamless blending with high-resolution Folded Motion tweeters. An added benefit of aluminum is its outstanding thermal conduction capability which allows cones to serve as efficient heat sinks for voice coils.
To deliver accuracy in the critical midrange, mid-frequency drivers feature a specially engineered "stiff" suspension. Stiffening the suspension (the spider and surround) raises the driver's resonant frequency and optimizes its performance to achieve a natural roll-off and inherently operate within an ideal range for a mid-frequency reproduction (as opposed to a comparably sized woofer).
Low-Mounted Woofers Minimize Floor Bounce
Floorstanding Motion models utilize 2.5-way designs that feature woofers positioned low in the cabinet and close to the floor. This deliberate design addresses a phenomenon known as floor bounce where sound reflected off the floor (from drivers positioned high on a cabinet), and those aimed directly at the listener interfere with each other. Without addressing these issues, listeners would experience bloated bass and massive increases and decreases in sound levels throughout critical midrange frequencies. Through careful crossover design and driver positioning, floorstanding Motion speakers deliver a flat, balanced response through the bass and midrange regions. Such considerations are crucial when seeking to achieve accurate reproduction of vocals and instruments such as kick drums.
Proprietary Vojtko Crossover Networks
Premium Motion Series speakers feature proprietary Vojtko crossover networks using polypropylene and low-DF electrolytic capacitors, custom-wound inductors, and thermal and current protection.
Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy. Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.
Modern Design Featuring Luxurious Finishes
Discreetly hidden behind fabric wrapped magnetic grilles, Folded Motion and aluminum cone drivers are held securely in place beneath matte black trim that masks tweeter and woofer mounting hardware for a clean, modern aesthetic. Solid cabinets, designed to eliminate fidelity robbing vibrations, are constructed from 18mm (0.7-inch) MDF with 31mm (1.2-inch) thick front baffles. Motion 60XTi and 50XTi feature additional internal bracing to further reduce cabinet resonance.
MartinLogan's premier Motion Series speakers are available in three luxurious finishes and matching metallic trim gloss black with black grilles and gunmetal grey trim, matte white with silver grilles and silver trim, and red walnut with black grilles and champagne colored trim.
Custom 5-Way Tool-less Binding Posts
Premium gold-plated 5-way tool-less binding posts assure a stable connection while accommodating a wide range of connections.
Two sets of binding posts accommodate bi-wire connections to increase signal carrying conductors and allow each portion of the crossover to be directly coupled to the amplifier.
Dynamo 10 10" Powered Subwoofer
Dynamo Series subwoofers carry forward the namesake of one of MartinLogan’s most popular products of all time, the original Dynamo subwoofer, known for its impeccable
precision, compact size, and indisputable quality. The Dynamo Series subwoofers continue that legacy while incorporating modern technologies and innovations,
creating a completely new take on this classic recipe.
Our next-generation Dynamo subwoofers pack an incredible feature list and impressive power into a stylish, compact, room-friendly package. With extensive technology, including built-in wireless signal connection, anti-vibration feet, and easy-to-use app control, Dynamo series subwoofers not only look and sound incredible but are also extremely user-friendly.
Getting the best sound from your subwoofer means placing it just right, but running cables can be a challenge. Our Dynamo subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making setup easy and clutter-free. Enjoy top-notch sound with lossless transmission and low latency.
Dynamo’s anti-vibration feet improve bass by reducing floor and wall vibrations, eliminating rattles, and boosting clarity. They also reduce noise transfer to other rooms, perfect for any flooring with both hard surface and carpet options included.
Control your subwoofer effortlessly with our app for iOS and Android. Adjust settings in real time and choose from 3 modes—Movie, Music, or Night—all from the comfort of your seat.
Backing up all the technology and features is the heart of the subwoofer, the Vojtko DSP
engine. Featuring a 500MHz DSP with 64bit processing, the Vojtko DSP engine commands all aspects of subwoofer performance in real time. Best-in-class computing power controls the advanced technology onboard, as well as the powerful Magnitude® amplification, providing both high tech functionality and audibly transparent processing for incredible, distortion free impact and musicality
Seamlessly Integrating High-Performance Audio with Elegant Design
Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design. As with all MartinLogan subwoofers, the Dynamo Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.
Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
Dynamo Subwoofers feature custom-designed aluminum woofers tuned using state-of-the-art Klippel analysis for high output and low distortion. Aluminum's light weight, high strength, and excellent heat dissipation make it ideal for delivering clean, powerful bass in a compact design. Meticulously engineered for reliability, Dynamo subwoofers offer versatile performance to meet your musical and powerful bass needs.
Magnitude® 1kW and 1.6kW Amplifiers Redefine Dynamo Performance
MartinLogan’s proprietary Magnitude® Amplifiers unlock the full potential of custom-engineered Dynamo woofers. Featuring two carefully crafted architectures, the advanced Magnitude® 1kW in the Dynamo 10 delivers up to 1000W Peak (500W RMS) of clean power, ensuring remarkable impact and seamless musicality. Meanwhile, the Magnitude® 1.6kW in the Dynamo 12 offers an impressive 1600W Peak (800W RMS), delivering powerful, deep bass with unparalleled clarity, precision and visceral impact. These ultra-efficient Class-D architectures guarantee exceptional control, providing an immersive audio experience that enhances all your favorite content.
Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
Dynamo subwoofers utilize the cutting-edge, ultra-high-resolution Vojtko DSP engine, named after MartinLogan’s Chief Audio Technologist. Featuring a best-in-class 500MHz DSP with 64-bit processing, the Vojtko DSP engine controls all aspects of subwoofer performance in real-time. This level of computing power enables advanced features like wireless app control, integrated wireless signal connection, and other advanced DSP functions with complete audible transparency, allowing MartinLogan engineers to fine-tune performance for maximum output and fidelity. Thanks to the computational power of this sophisticated DSP engine, Dynamo subwoofers are also compatible with the award-winning Anthem Room Correction system.
Built-In Wireless Capability
Although correct placement plays a key role in optimizing subwoofer performance, getting a cable where you need it can be challenging. For ultimate convenience, our Dynamo™ subwoofers come with a built-in Wireless Receiver and Wireless Transmitter, making it easier than ever to eliminate cable clutter. With lossless transmission and low latency, even the most discerning enthusiast will be thrilled with the results.
Sound Structure
The cabinet plays a critical role in the sound quality of a speaker. Dynamo™ subwoofer cabinets are made of 1” thick MDF (Medium Density Fiberboard) with additional reinforcement on the woofer baffle. This solid construction provides a more stable platform for the high performance woofer to play from, resulting in cleaner, more articulate bass.
Robust Connectivity
In addition to the built-in wireless connection option, Dynamo™ 10 and 12 offer incredible wired installation flexibility. With both RCA and XLR LFE inputs, Stereo RCA inputs, Speaker Level inputs, and Sub Out connections, Dynamo™ models can be easily integrated into even the most complex systems. Simultaneous connections are also supported.
Reduced Vibration, Enhanced Bass
Solid bass performance is a critical component of any audio system and contributes to the visceral impact of your entertainment. Dynamo’s integrated anti-vibration feet improve bass performance while reducing floor and wall vibrations. By dramatically reducing energy transfer between the subwoofer and the floor, unwanted room rattles and buzzes are eliminated, resulting in tighter, cleaner bass and improved system
clarity and dynamics. As a less intrusive alternative to acoustic room treatments, Dynamo’s integrated antivibration feet can also help minimize noise complaints by reducing vibration transfer into adjoining rooms. Suitable for all types of flooring, options include hard surface and carpet spikes.
Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
By far the most convenient way to adjust a subwoofer, MartinLogan’s Subwoofer Control app for iOS and Android devices allows you to easily adjust settings such as Volume, DSP Mode, Phase, and many others right from the comfort of your seat for ultimate control and ease of tuning.
Optimize Bass Performance with Award-Winning Anthem Room Correction
Dynamo subwoofers are compatible with the award-winning Anthem Room Correction system. This highly advanced software measures subwoofer performance in your room and then performs custom equalization, tuning, and calibration to achieve the highest levels of bass impact and accuracy possible for your specific installation. Requires an ARC Calibration Microphone and a PC or Mac computer (sold separately).
Martin Logan Motion 50XTi Center Channel Speaker
A powerful center channel speaker featuring a Folded Motion XT tweeter and dual 6.5-inch aluminum cone woofers with a rear-firing bass port. Available in three stylish finishes: gloss black, matte white, and red walnut.
Motion 50XTi Center Channel Speaker
For significant impact in a multi-channel audio system, the new Motion 50XTi delivers wide soundstage with pinpoint details, thanks to a Folded Motion XT tweeter, dual 6.5-inch aluminum cone woofers vented with a rear-firing bass port, and a proprietary Vojtko crossover network. XT stands for extreme: lifelike details from the lightning-fast Folded Motion XT tweeter, open and authentic midrange performance, coupled with deep, musical bass response. These classic performance technologies have been enhanced by the slightest of modifications, including the drive-stabilizing dust cap design and stiffened motor suspension. The speaker s enclosure sports increased internal bracing, a reinforced baffle, and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
Engineering, Without Compromises
What makes the Motion Series sound so amazing MartinLogan's dedicated in-house engineering and design team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering and time-honored cabinet construction techniques. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price. Our 'no compromise' philosophy gives Motion Series a unique sound you won't find anywhere else.
Sound Inspired by Electrostatic Speakers
The success of the Motion Series is directly attributed to its close relation to MartinLogan s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.
Folded Motion XT Tweeters
MartinLogan's signature Folded Motion tweeter utilizes an extremely low mass diaphragm that "squeezes" air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that's able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters, advanced thin-film transducer technology even further, with a 40% larger radiating surface and 80x30-degree controlled dispersion. This tweak increases audible bandwidth without sacrificing details and minimizes distortion to an unprecedented level while increasing efficiency and the tweeter's already lightning-fast response time. The result superior realism and alarming specificity is aurally astounding, and only by MartinLogan.
Powerful Aluminum Cone Mid-Frequency and Bass Drivers
Custom built, low-distortion drivers pair high-power magnet structures with aluminum cone diaphragms to deliver massive excursion and sound output, preserve minute bass details, and maximize power handling capability, all without a hint of distortion. A unique concave dust cap design reinforces the strength and rigidity of the cone while reducing break up modes.
The use of aluminum for cones maximizes rigidity and strength of the drivers without adding excessive weight. This, along with the exceptional damping properties of aluminum, ensures the smooth, non-resonant response necessary for seamless blending with high-resolution Folded Motion tweeters. An added benefit of aluminum is its outstanding thermal conduction capability which allows cones to serve as efficient heat sinks for voice coils.
To deliver accuracy in the critical midrange, mid-frequency drivers feature a specially engineered "stiff" suspension. Stiffening the suspension (the spider and surround) raises the driver's resonant frequency and optimizes its performance to achieve a natural roll-off and inherently operate within an ideal range for a mid-frequency reproduction (as opposed to a comparably sized woofer).
Proprietary Vojtko Crossover Networks
Premium Motion Series speakers feature proprietary Vojtko crossover networks using polypropylene and low-DF electrolytic capacitors, custom-wound inductors, and thermal and current protection.
Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy. Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.
Modern Design Featuring Luxurious Finishes
Discreetly hidden behind fabric wrapped magnetic grilles, Folded Motion and aluminum cone drivers are held securely in place beneath matte black trim that masks tweeter and woofer mounting hardware for a clean, modern aesthetic. Solid cabinets, designed to eliminate fidelity robbing vibrations, are constructed from 18mm (0.7-inch) MDF with 31mm (1.2-inch) thick front baffles. Motion 60XTi and 50XTi feature additional internal bracing to further reduce cabinet resonance.
MartinLogan's premier Motion Series speakers are available in three luxurious finishes and matching metallic trim gloss black with black grilles and gunmetal grey trim, matte white with silver grilles and silver trim, and red walnut with black grilles and champagne colored trim.
Custom 5-Way Tool-less Binding Posts
Premium gold-plated 5-way tool-less binding posts assure a stable connection while accommodating a wide range of connections.
Two sets of binding posts accommodate bi-wire connections to increase signal carrying conductors and allow each portion of the crossover to be directly coupled to the amplifier.
Specs
Martin Logan Motion 60XTi Specifications:
Frequency Response 35 25,000 Hz 3dB
Recommended Amplifier Power 20 400 watts per channel
Horizontal Dispersion 80
Vertical Dispersion 30
Sensitivity 94 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 400 & 2,200 Hz
High Frequency Transducer 1.25" 2.4" (3.2cm 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm 7cm) diaphragm
Mid Frequency Transducer 6.5 (16.5cm) aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured dust cap to reduce cone break-up modes.
Low Frequency Transducer Two 8 (20.3cm) aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.
Inputs Custom 5-way bi-wire tool-less binding posts
Weight 66 lbs. (30 kg)
Dimensions 48" x 11.4" x 14.4 " (121.8cm x 29cm x 36.6cm)
Martin Logan Dynamo 10 Specifications:
Application
Subwoofer
Frequency Response
23–200 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer
10” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Amplifier
Magnitude® MT-1kW Amplifier with 1,000W peak (500W continuous)
Digital Signal Processing
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Cabinet
Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Controls (on backplate)
Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless
transmitter)
Controls (via Bluetooth)
Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Inputs
Line Level: Left, Right, and LFE
XLR: LFE
Speaker Level: Left and Right
(requires banana plugs)
Wireless Input
Integrated Wireless Receiver,
Wireless Transmitter Included
Power Draw
Max: 500W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined Feet
Integrated Anti-Vibration Feet (carpet spikes included)
Weight
42.8 lbs (19.4 kg)
Dimensions (HxWxD)*
14-3/4" x 13-3/4" x 13-3/4" (37.3cm x 34.8cm x 34.8cm)
Finish
Gloss Black or Satin White
Martin Logan Motion 50XTi Specifications:
Frequency Response 50 25,000 Hz 3dB
Recommended Amplifier Power 20 300 watts per channel
Horizontal Dispersion 80
Vertical Dispersion 30
Sensitivity 94 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 900 & 2,200 Hz
High Frequency Transducer 1.25" 2.4" (3.2cm 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm 7cm) diaphragm
Low Frequency TransducerTwo 6.5" (16.5cm) aluminum cone with cast poly- mer basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.
Inputs Custom 5-way bi-wire tool-less binding posts
Weight 30.5 lbs. (13.8 kg)
Dimensions 7.6" x 22.8" x 12.8" (19.2cm x 58cm x 32.6cm)
