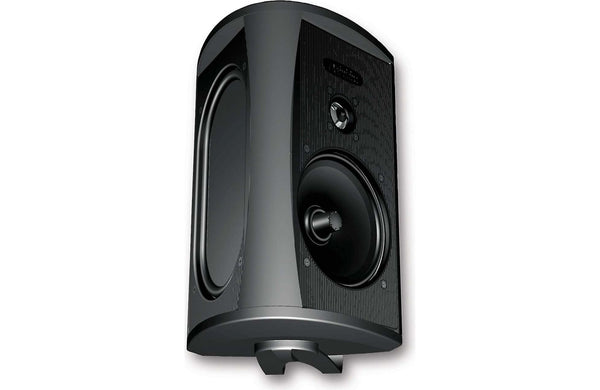

Definitive Technology AW5500 Outdoor Speaker (Each)
5-1/4 inch active driver pressure coupled to a 5 x 8 inch racetrack-shaped Planar Low Bass Radiator has total bass radiating area greater than an 8 inch woofer to belt out powerful bass that fills outdoor areas with rich big speaker sound
Fully sealed design, aluminum grilles, and rugged PolyStone enclosures, the AW5500s can be fully exposed to the elements and still reliably deliver their indoor speaker sound quality for years of outdoor listening enjoyment
Integrated Aluminum mounting brackets and unique enclosure shape allow a full 360 degrees of rotation for maximum placement flexibility
AW5500s feature the same technologies found in Definitive's top-of-the-line indoor speakers for no compromise sound quality
Available in Black and (paintable) White finish
Five Year Limited warranty
Packaged one to a carton
Legendary Definitive Performance-Outdoors!
Now you can enjoy the incomparable sound of Definitive Technology anywhere around your home with the groundbreaking AW5500 All-Weather loudspeakers. These technology-packed wonders feature high excursion active drivers pressure-coupled to racetrack-shaped Low-Bass Radiators to give you more than double the bass output while maintaining a weather-tight seal for ultimate placement flexibility, reliability, and performance.
With their fully sealed design, aluminum grilles, and rugged PolyStone enclosures, the AWs can be fully exposed to the elements and still reliably deliver their indoor speaker sound quality for years of outdoor listening enjoyment. Their integrated galvanized steel brackets and unique shape allow a full 360 degrees of rotation allowing the listener to orient the active drivers toward the listening area. Pointing the active driver baffle towards the listener while the Low-Bass Radiator side faces the wall or ground gives you the ideal balance of clear mids, extended highs, and thunderous bass even in the tough acoustic conditions of the great outdoors. Now you can have it all the great sound of Definitive indoor speakers on the patio, deck, garden, or in the sauna.
Specs
Driver Complement
Tweeter
Quantity 1
Diameter 1" (2.54cm)
Type Pure Aluminum Dome
Mid / Woofer
Quantity 1
Diameter 5 1/4" (13.34cm)
Type BDSS Midrange Driver
Tweeter/Mid Array
Type Direct Radiating
Bass Radiator
Quantity 1
Oval Width 8" (20.32cm)
Oval Height 5" (12.70cm)
Type Racetrack Planar Bass Radiator
Electrical
Audio Inputs
Speaker Level 1 Pair (Speaker Cable)
Maximum Sensitivity
1 watt @ 1 Meter 91 dB
Total Frequency Response
Overall 45 Hz - 30 kHz
Nominal Impedance
Satellites 4 - 8 ohm
Crossover
A/V Receiver Crossover Setting Large; Full Bandwidth
Power Handling 10-175 watts per channel
Installation
Placement
Horizontal Orientation On Wall or On Ceiling / Under Eave
Vertical Orientation On Wall or On Ceiling / Under Eave
Product Weight
Out of Box 7.7 lbs
Dimensions
Cabinet Dimensions
Height 7 3/4" (19.68cm)
Width 12 11/16" (32.23cm)
Depth 8 1/8" (20.64cm)
Cabinet Type
Speaker Enclosure Mineral Injected 3 Sided Polymer with Drainage Channel and Pressure Coupled Bass Radiator
Shipping
Accessories
Included Accessories Wall Bracket with Thumb Screws
Carton Size
Height 17" (43.18cm)
Width 11 1/2" (29.21cm)
Depth 11 1/2" (29.21cm)
Shipping Weight
One per Carton 8.78 lbs
Warranty
Drivers and Cabinet
Parts and Labor 5
