Bowers & Wilkins CCM 663RD Reduced Depth 2-Way In-Ceiling Speaker Open Box (Pair)

by Bowers & Wilkins
UPC: 714346324804
Save 25%
$1,050.00
$787.50

SKU CCM663RDPairOB

Product Qualifies for FREE Ground Shipping

OPEN BOX
  • 100% WORKING CONDITION
  • THOROUGHLY INSPECTED
  • ORGINAL OR REPLACEMENT PACKAGING + ALL ACCESSORIES

    • Bowers & Wilkins CCM 663RD Reduced Depth 2-Way In-Ceiling Speaker Open Box (Pair)

    See nothing, hear everything

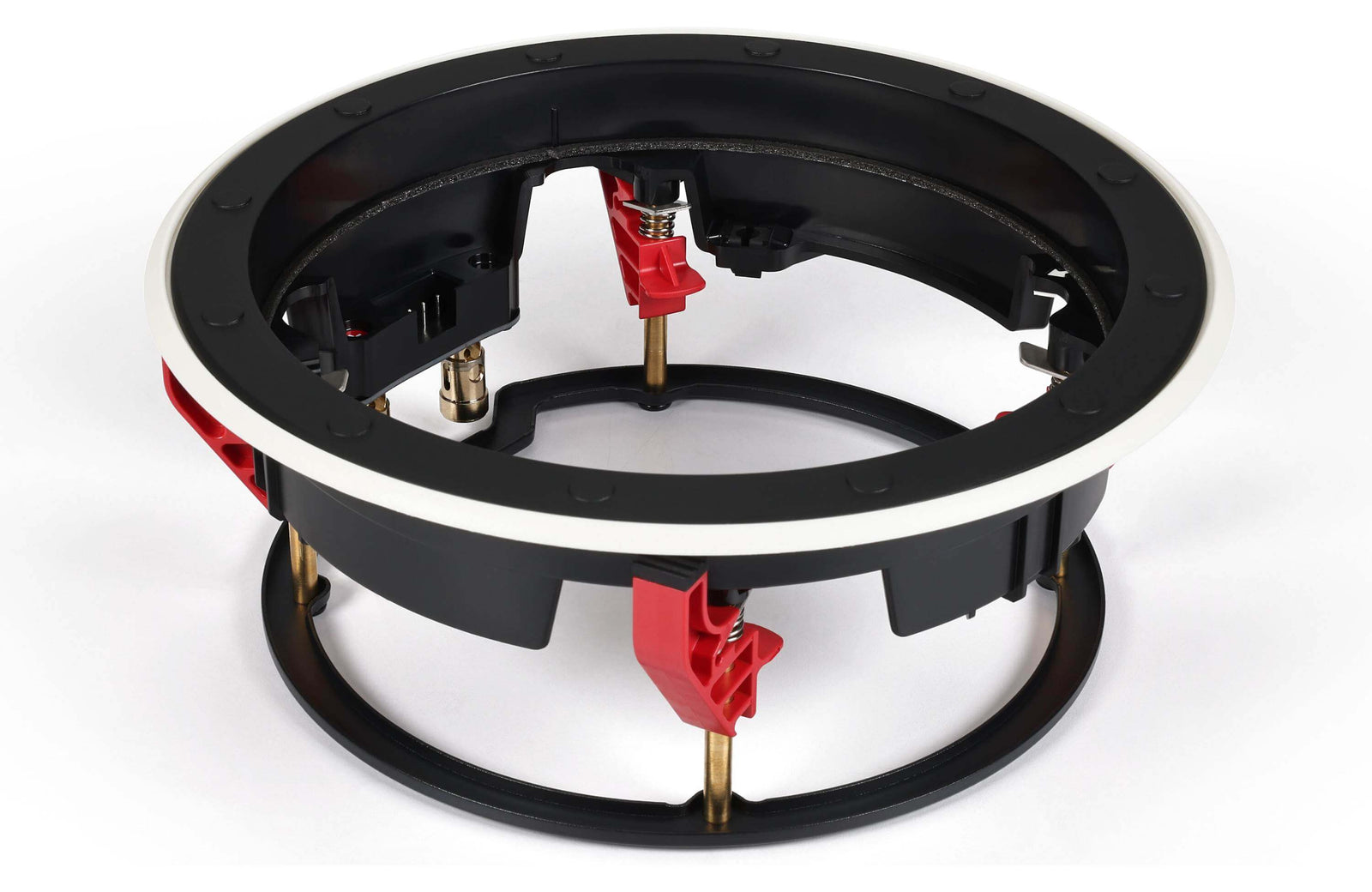

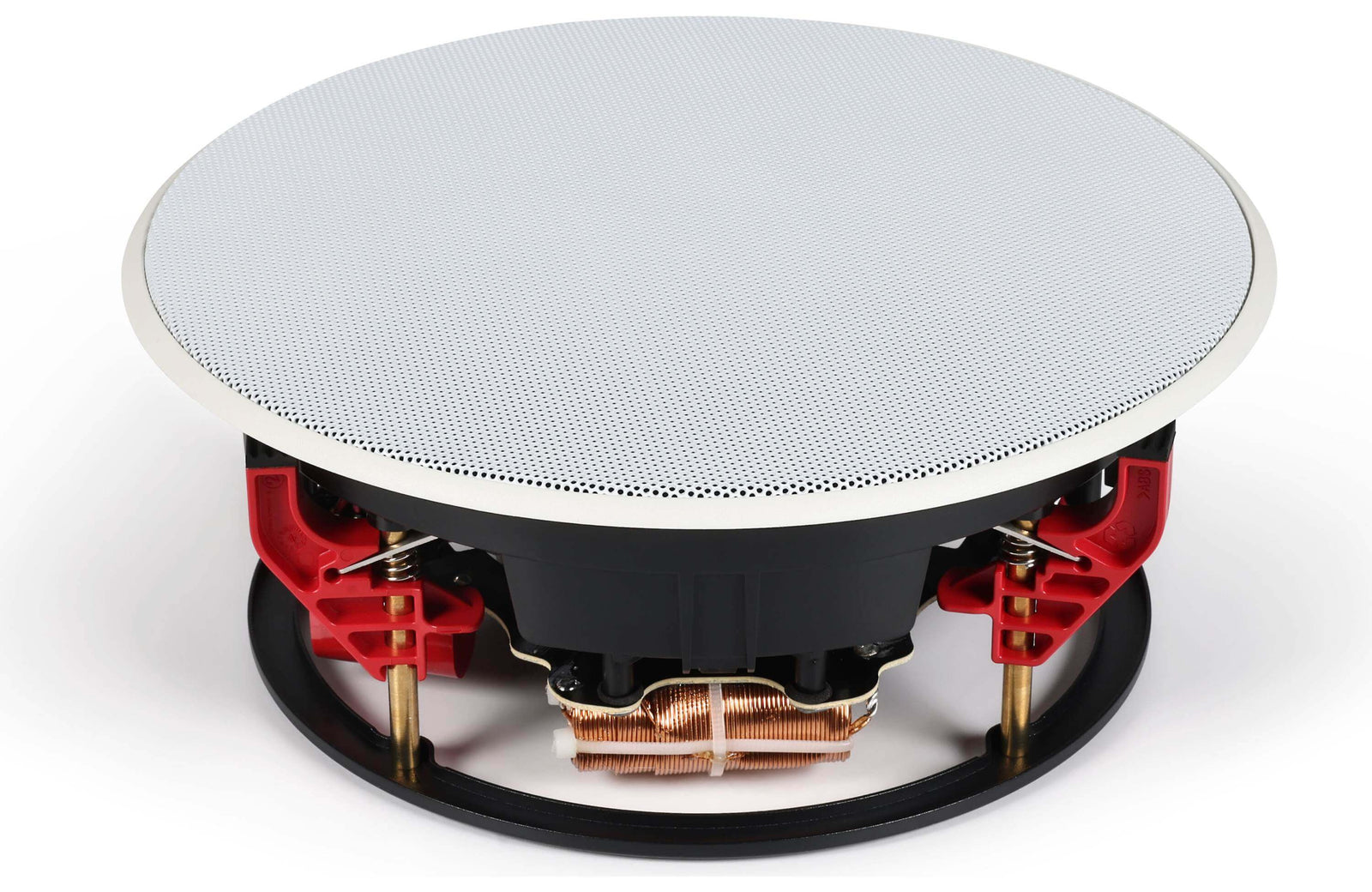

    RD stands for Reduced Depth – so this speaker will fi t into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi t QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker. The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminum dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.

    Specs

    Description 2-way in-ceiling system
    Drive Units 1x 25mm (1 in) Nautilus™ swirl loaded aluminum dome tweeter 1x 150mm (6 in) blue Kevlar® cone bass/midrange
    Frequency Range (-6dB) 35Hz – 50kHz
    Recommended Amp Power 25 – 100w
    Sensitivity SPL (2.83V, 1m) 86dB (2.83V, 1m)
    Impedance Nominal (min) 8Ω (4.8Ω)
    Frame diameter 240mm (9.4 in)
    Cut-out diameter 202mm (8 in)
    Depth behind surface  92mm (3.6 in)
    Protrusion 7mm (0.3 in)>Br? Net Weight 2.3kg (5 lb)

    Net weight 2.3kg (5 lb)

    Pre-mount Kit PMK C6
    Back Box BB6W or BB125C
